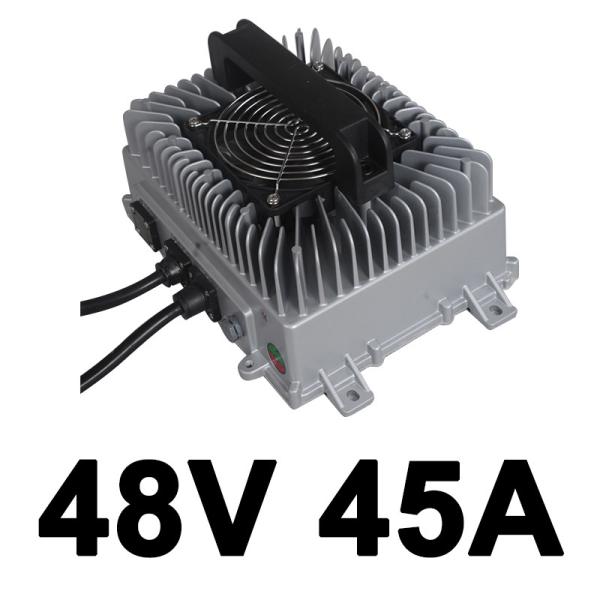

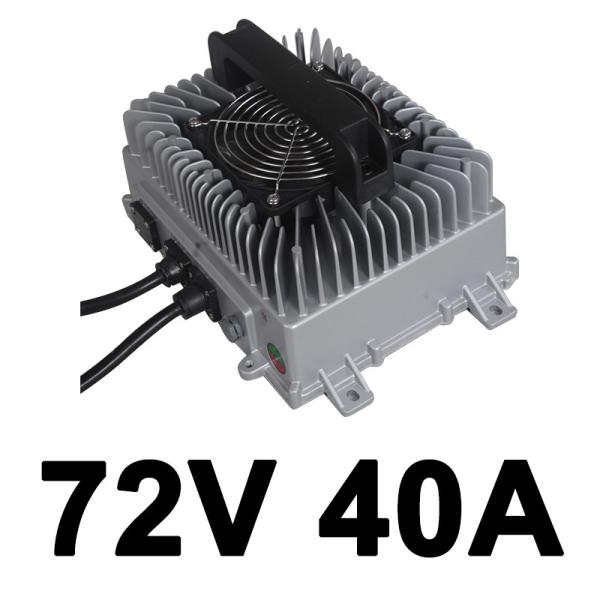

IP66 Waterproof 3.3KW EV Battery OBC Charger for 48V/72V Electric Vehicles
IP66 Waterproof 3.3KW EV Battery OBC Charger for 48V/72V Electric Vehicles
IP66 Waterproof 3.3KW EV Battery OBC Charger for 48V/72V Electric Vehicles
IP66 Waterproof 3.3KW EV Battery OBC Charger for 48V/72V Electric Vehicles
Specifications
Brand Name :
Deligreen
Model Number :
S2-6.6KW
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1
Price :
815.5
Payment Terms :
T/T,Western Union
Supply Ability :
1000pcs/day
Delivery Time :
10 days
Input voltage range :
AC 90～265V
Input current :
16A
Output Rated voltage :
48V/72v/84V/96V/144V/312V
Max charging voltage :
66V
Max output current :
5-45A
Power factor :
≥0.99 Half load
Efficiency :
≥93% Full load
IP :
IP66
Application :
motorcycles/boats/surfboards
Net Weight :
12kg
Single package size :
420*294*111
Description
Waterproof IP66 EV Battery OBC Charger HV Charger 3.3KW 48V 72V 45A 40A
Product Overview

3.3KW Waterproof 48V 72V 45A 40A IP66 EV Battery Charger HV Charger

Deligreen 3.3kw/6.6kw fully enclosed frequency conversion pulse charger is specifically designed for electric vehicle power batteries according to national standards. This product features high efficiency, compact size, exceptional stability, long lifespan, and full waterproof technology with IP66 protection rating.

  • Built-in thermal sensor for reliable operation from -20℃ to +85℃
  • Overheat protection with automatic recovery function
  • IP66 waterproof rating for operation in any weather conditions
  • Safe operation with high reliability and complete protection features
IP66 Waterproof 3.3KW EV Battery OBC Charger for 48V/72V Electric Vehicles
Wide Voltage Options

Available with wide range input voltage in addition to fixed 220V/110V input options.

Input Voltage Range Input Current Output Rated Voltage Max Charging Voltage Max Charging Current Power Factor Efficiency
AC 90～265V ≤ 16A 48V 58.8V 45A ≥0.99 ≥93% Full load
72V 99V 40A
84V 116V 40A
96V 132V 32A
144V 198V 23A
312V 440V 10A
Electrical Parameters
Input Frequency: 45-65Hz
Standby Power Consumption: ≤ 5W
Main Output
Output Type: Constant pressure/current
Output Power: 3300W@220VAC, 2800W@110VAC, 2650W@90-265VAC
CV Accuracy: ±1%
CC Accuracy: ±1%
Ripple Voltage Coefficient: 5%
Low Voltage Output
Output Type: CV
Output Voltage: 13.8V
Rated Current: 5A
Precision of Constant Voltage: ±2%
Max Current: 5.5A±0.5A
Output Power: ≥ 62.5W
Ripple Voltage Coefficient: 1%
CAN Communication
CAN Communication: Optional
Baud Rate: 125Kbps, 250Kbps, 500Kbps
Terminating Resistor: No
Protection Functions
Protection Type Specification
Input Over-voltage Protection AC264V
Input Under-voltage Protection AC90V
Output Over-voltage Protection Yes
Output Start Voltage 0.3 times rated voltage
Output Over-current Protection Yes
Over Temperature Protection Power down from 85℃, shut off at 90℃
Short Circuit Protection Stop output
Reverse Battery Protection Stop output
Ground Protection ≤ 100mΩ
CAN Communication Protection Automatically stop output when CAN communication fails
Power Failure Protection Yes
Safety Specifications
Withstand Pressure: Input to output: 2000VAC≤10mA, Input to ground: 2000VAC≤12mA, Output to ground: 2000VAC≤10mA (All 1 minute)
Insulation Resistance: Input, output, signal end to shell ≥10MΩ (Test voltage 1000VDC)
Electromagnetic Immunity: Satisfy GB/T 18487.3-2001 11.3.1
Electromagnetic Disturbance: Satisfy GB/T 18487.3-2001 11.3.2
Harmonic Current: Satisfy GB 17625.1-2003 6.7.1.1
Current Rise Time: ≤5S, Overshoot ≤5%
Off Response Time: 100% to 10%≤50mS, 100% to 0%≤200mS
Protection Level: IP66
Vibration Resistance: 10-25Hz Amplitude 1.2mm, 25-500Hz 30m/s², each direction 8 hours
Noise: ≤60dB(Class A)
MTBF: 150000H
Working Environment: Relative temperature 5%-95% without condensation
Operating Temperature: -20℃ ~ +85℃
Storage Temperature: -30℃ ~ +90℃
Product Dimensions & Configuration

Combination of 2 3.3KW Battery Charger

IP66 Waterproof 3.3KW EV Battery OBC Charger for 48V/72V Electric Vehicles

6.6KW Air cooling - Horizontal mounting size within S2-6.6KW

Connector Type
IP66 Waterproof 3.3KW EV Battery OBC Charger for 48V/72V Electric Vehicles
Indicator Status Definition
No Alarm
  • Charging operation status: Red light flashes at 1s intervals, green light off
  • Heating operation status: Green light flashes at 1s intervals, red light off
  • Waiting state: Green light always on, red light off
With Alarm
  • Hardware failure or DC12V failure: Red, green
  • PFC, CC & CP slave CPU communication failure: Red, green, red
  • DC bus voltage failure: Red, green, red, green
  • Low or high AC voltage protection: Red, green, red, green, red
  • Battery not connected: Red, green, red, green, red, green
  • Segment charge timeout protection: Red, , , red
  • Battery temperature protection: Red, , , red
  • CPU temperature or transformer temperature protection: Green, red, green
  • Output short-circuit protection: Green, red, green, red
  • Transformer primary overcurrent protection: Green, red, green, red, green
Product Appearance Requirements
  • Outer surface should be flat, without obvious defects such as scratches and deformation
  • Surface coating should be uniform
  • Nameplates and signs firmly installed with clear handwriting
  • Parts and components fastened reliably, free from defects and damages
  • Each product marked with product logo at obvious locations
Packaging, Transportation & Storage
Packaging

Product name, model, specification, manufacturer name printed on label. Box contains product manual.

Transportation

Suitable for transportation by car, boat and airplane. Protected from sun, moisture with civilized transportation.

Storage

Store in packing box in clean, dry, well-ventilated environment at 5℃-40℃. Avoid exposure to sunlight, fire and water. Shelf life of 2 years from manufacturer date. If stored longer than 2 years, test by professional before use.

BMS: CAN BUS Communication Specification
Communication Specification
  • Communication speed for bus line: 250Kbps
  • Data link layer provision: Refer to CAN2.0B and J1939 regulations
  • Use and redefine 29 identifiers of CAN extended frame
  • Priority: 3 bits (8 priorities possible)
  • Every node has name and address for network access
  • Nodes may have multiple functions or share functions
Frequently Asked Questions
What is a car battery charger?

An electric vehicle/E-car charger is a device designed to charge the vehicle battery of an electric vehicle. A power conversion device with specific functions used to charge the battery. Electric vehicle chargers can be divided into DC chargers and AC chargers.

How many amps do I need to charge a 12 volt battery?

Most battery manufacturers recommend sizing the charger at about 25% of the battery capacity (ah = amp hour capacity). Thus, a 100 ah 12 volt battery would take about a 25 amp 12 volt charger (or less).

Is CAN protocol available?

Yes, we can supply CAN for your battery communication.

Is there LED light?

Yes, there are RED/YELLOW/GREEN LED lights for charging status indication.

Can Li-ion battery high-power chargers be charged in constant voltage mode?

Lithium battery uses constant current charging method.

What is Single-phase electricity?

Single-phase electricity refers to the form of electric energy transmission consisting of a phase wire (live wire) and a neutral wire.
