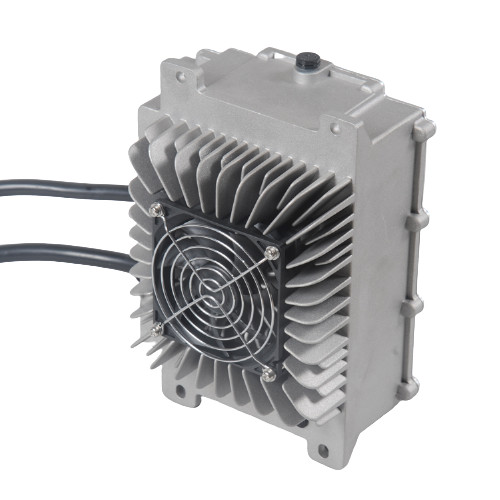

6.6KW IP66 Waterproof EV Battery Charger With Fan for Electric Vehicles and Lithium Batteries
6.6KW IP66 Waterproof EV Battery Charger With Fan for Electric Vehicles and Lithium Batteries
Specifications
Brand Name :
Deligreen
Model Number :
S2-6.6KW
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1
Price :
815.5
Payment Terms :
T/T,Western Union
Supply Ability :
1000pcs/day
Delivery Time :
10 days
Input voltage range :
AC 90～265V
Input current :
16A
Output Rated voltage :
48V/72v/84V/96V/144V/312V
Max charging voltage :
66V
Max output current :
5-45A
Power factor :
≥0.99 Half load
Efficiency :
≥93% Full load
IP :
IP66
Application :
motorcycles/boats/surfboards
Net Weight :
12kg
Single package size :
420*294*111
Description
6.6KW Waterproof IP66 EV Battery Charger With Fan
Product Overview

Large car battery charger for lithium ion battery with fan 6.6KW IP66 waterproof

Deligreen 3.3kw/6.6kw fully enclosed frequency conversion pulse charger is specifically designed for electric vehicle power batteries according to national standards. This product features high efficiency, compact size, exceptional stability, and long lifespan. The IP66 full waterproof technology ensures safe operation, high reliability, and comprehensive protection.

  • Built-in thermal sensor for reliable operation from -20℃ to +85℃
  • Overheat protection with automatic recovery function
  • IP66 waterproof rating for operation in any weather conditions
6.6KW IP66 Waterproof EV Battery Charger With Fan for Electric Vehicles and Lithium Batteries
Wide Voltage Options

Available with wide range input voltage in addition to standard 220V/110V fixed input voltage options.

Input Voltage Range Input Current Output Rated Voltage Max Charging Voltage Max Charging Current Power Factor Efficiency
AC 90～265V ≤ 16A 48V 58.8V 45A ≥0.99 ≥93% Half load
≥93% Full load
72V 99V 40A
84V 116V 40A
96V 132V 32A
144V 198V 23A
312V 440V 10A
Electrical Parameters
Input: Frequency rate: 45-65Hz
Standby power consumption: ≤ 5W
Main Output
Output type: Constant pressure/current
Output power: 3300W@220VAC, 2800W@110VAC, 2650W@90-265VAC
6600W@220VAC, 5600W@110VAC, 5280W@90-265VAC
CV Accuracy: ±1%
CC Accuracy: ±1%
Ripple voltage coefficient: 5%
Low Voltage Output
Output type: CV
Output voltage: 13.8V
Rated current: 5A
Precision of constant voltage: ±2%
Max current: 5.5A±0.5A
Output power: ≥ 62.5W
Ripple voltage coefficient: 1%
CAN Communication
CAN communication: Optional
Baud rate: 125Kbps, 250Kbps, 500Kbps
Terminating resistor: No
Protection Functions
Protection Type Specification
Input over-voltage protection AC264V
Input under-voltage protection AC90V
Output over-voltage protection Yes
Output start voltage 0.3 times rated voltage
Output over-current protection Yes
Over temperature protection Power down from 85℃, shut off at 90℃
Short circuit protection Stop output
Reverse battery protection Stop output
Ground protection ≤ 100mΩ
CAN Communication protection Automatically stop output when CAN communication fails
Power failure protection Yes
Safety Specifications
Withstand pressure: Input to output: 2000VAC≤10mA, Input to ground: 2000VAC≤12mA, Output to ground: 2000VAC≤10mA (All 1 minute)
Insulation resistance: Input, output, signal end to shell ≥10MΩ (Test voltage 1000VDC)
Electromagnetic immunity: Satisfy GB/T 18487.3-2001 11.3.1
Electromagnetic disturbance: Satisfy GB/T 18487.3-2001 11.3.2
Harmonic current: Satisfy GB 17625.1-2003 6.7.1.1
Current rise time: ≤5S, Overshoot ≤5%
Off response time: 100% to 10%≤50mS, 100% to 0%≤200mS
Protection level: IP66
Vibration resistance: 10-25Hz Amplitude 1.2mm, 25-500Hz 30m/s², each direction 8 hours
Noise: ≤60dB(Class A)
MTBF: 150000H
Working environment: Relative temperature 5%-95% without condensation
Operating temperature: -20℃ ~ +85℃
Storage temperature: -30℃ ~ +90℃
Physical Dimensions

Combination of 2 3.3KW battery chargers

6.6KW IP66 Waterproof EV Battery Charger With Fan for Electric Vehicles and Lithium Batteries

6.6KW Air cooling
Horizontal mounting size within S2-6.6KW

Connector Type
6.6KW IP66 Waterproof EV Battery Charger With Fan for Electric Vehicles and Lithium Batteries
Indicator Status Definition
No Alarm
  • Charging operation status: Red light flashes at 1s intervals, green light off
  • Heating operation status: Green light flashes at 1s intervals, red light off
  • Waiting state: Green light always on, red light off
With Alarm
  • Hardware failure or DC12V failure: red,green
  • PFC, CC & CP slave CPU communication failure: red,green,red
  • DC bus voltage failure: red,green,red,green
  • Low or high AC voltage protection: red,green,red,green,red
  • Battery is not connected: red,green,red,green,red,green
  • Segment charge timeout protection: red,,,red
  • Battery temperature protection: red,,,red
  • CPU temperature or transformer temperature protection: green,red,green
  • Output short-circuit protection: green,red,green,red
  • Transformer primary overcurrent protection: green,red,green,red,green
Product Appearance
  • Outer surface should be flat, without obvious defects such as scratches and deformation
  • Surface coating should be uniform
  • Nameplates and signs are firmly installed with clear handwriting
  • Parts and components shall be fastened and reliable, free from defects and damages
  • Each product marked with product logo including part number, trademark, model, production number, company name, and warning instructions
Packaging, Transportation and Storage
Packaging

Product name, model, specification, and manufacturer name printed on the label. Box contains product manual.

Transportation

Suitable for transportation by car, boat, and airplane. Protected from sun, moisture, and handled with care during transportation.

Storage

When not in use, store in packing box in clean, dry, well-ventilated environment at 5℃-40℃. Avoid exposure to sunlight, fire, and water. Shelf life of 2 years from manufacturer date. If stored longer than 2 years, professional testing required before use.

BMS: CAN Bus Communication Specification
Communication Specification
  • Communication speed for bus line: 250Kbps
  • Data link layer provision: Refer to CAN2.0B and J1939 regulations
  • Use and redefine 29 identifiers of CAN extended frame
  • Priority has 3 bits allowing 8 priorities
  • Every node has name and address for network access and data communication
IDENTIFIER 11BITS S R R I D E IDENTIFIER EXTENSION 18BITS
PRIORITY R DP PDU FORMAT(PF)
3 2 1 1
Frequently Asked Questions
Is CAN protocol available?

Yes, we can supply CAN for your battery communication.

Is there LED light?

Yes, there are RED/YELLOW/GREEN LED lights for charging status indication.

Can Li-ion battery high-power chargers be charged in constant voltage mode?

Lithium battery uses constant current charging method.

What is Single-phase electricity?

Single-phase electricity refers to the form of electric energy transmission consisting of a phase wire (live wire) and a neutral wire.

Shipping & Delivery Information
Shipment to USA: By sea + Express (DDP, Tax free)
ETD: 5-8 days
ETA: 25-35 days after sailing
Tracking updated after pickup by local express (15-25 days after sailing)
Shipment to EU: By railway + Express (DDP, Tax free) - Except Switzerland, Romania
ETD: 5-8 days
ETA: 30-45 working days after shipping
Tracking updated after pickup by local express (25-40 working days after shipping)

For remote areas not listed, please provide shipping address and zip code for verification.

About Deligreen Power

Changsha Deligreen Power Co., LTD, founded in 2010, is a "Green Energy Solution Service Provider" specializing in lithium rechargeable batteries, BMS, balancers, chargers and related products.

  • Main applications: electric bicycles, scooters, motorhomes, AGV, solar/wind systems, energy storage systems, trucks
  • We promise "real" lithium capacity
  • We promise "100%" refund for any quality problem
  • We promise "100%" replacement for any shipping damage
  • We promise lifetime fast technical support

Customer satisfaction is our endless pursuit.
