6.6KW IP66 Waterproof Lithium Battery Charger for 72V/60V/84V Electric Vehicles
6.6KW IP66 Waterproof Lithium Battery Charger for 72V/60V/84V Electric Vehicles
6.6KW IP66 Waterproof Lithium Battery Charger for 72V/60V/84V Electric Vehicles
6.6KW IP66 Waterproof Lithium Battery Charger for 72V/60V/84V Electric Vehicles
Specifications
Brand Name :
Deligreen
Model Number :
6.6KW
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,Western Union
Supply Ability :
1000pcs/day
Delivery Time :
10 days
Packaging Details :
35X24X20 cm/box
Input voltage range :
AC 85V~265VAC
Input current :
32A
Output Rated voltage :
48V/72v/84V/96V/144V/312V
Max charging voltage :
177V
Max output current :
60A
Power factor :
≥0.99 Half load
Efficiency :
≥93% Full load
IP :
IP66
Application :
motorcycles/boats/surfboards
Net Weight :
8.5kg
Description
TC Waterproof Battery Charger 72v 60v 80a 20a 15a Lithium Battery
TC Charger NEW VERSION — HK-L series 6.6KW charger is a product specially designed for electric vehicle power battery supplementary electric energy according to the national standard of charger. This product not only has the advantages of high efficiency, small size, high stability, long life, etc., but also has the characteristics of high protection level, high reliability, and complete protection functions. It is an ideal power source for electric vehicle charging.
6.6KW IP66 Waterproof Lithium Battery Charger for 72V/60V/84V Electric Vehicles
Model Specifications
Models Cooling Method Voltage Platform Hardware Power Weight (kg)
HK-LF-108-60 Air cooling 108V 177V/60A 6.6KW 8.5kg
HK-LF-144-46 Air cooling 144V 202V/46A 6.6KW 8.5kg
HK-LF-312-20 Air cooling 312V 450V/20A 6.6KW 8.5kg
HK-LF-540-14 Air cooling 540V 680V/14A 6.6KW 8.5kg
Main Features
  • Support UDS diagnosis CAN wake-up function
  • Fully sealed process can work reliably under conditions of -40℃ to +85℃
  • Built-in temperature sensor to shut down output under hazardous operating conditions (internal 90°C)
  • Protection class IP67 can work safely under short-term water immersion conditions
Technical Specifications
Parameter 96V/108V 144V 312V 540V
Output
Output voltage range 65~140V 90~195V 250~450V 350~680V
Output current 60A 46A 20A 14A
Output power 6600W@220VAC 3300W@110VAC
Output Mode CV / CC
CV Accuracy ±1%
CC Accuracy ±2%
Ripple Voltage Coefficient 5%
Input
Input voltage range AC 90~264V
Frequency 45-65Hz
Input current 32A
Power factor ≥0.98 more than half load
Efficiency ≥93% full-load
Stand-by Consumption ≤5W
Low Voltage Output
Output Mode Constant Voltage
Output Voltage 13.8V
Rated Current 5A
CV Accuracy ±2%
Output Power ≥62.5W
Ripple Voltage Coefficient 1%

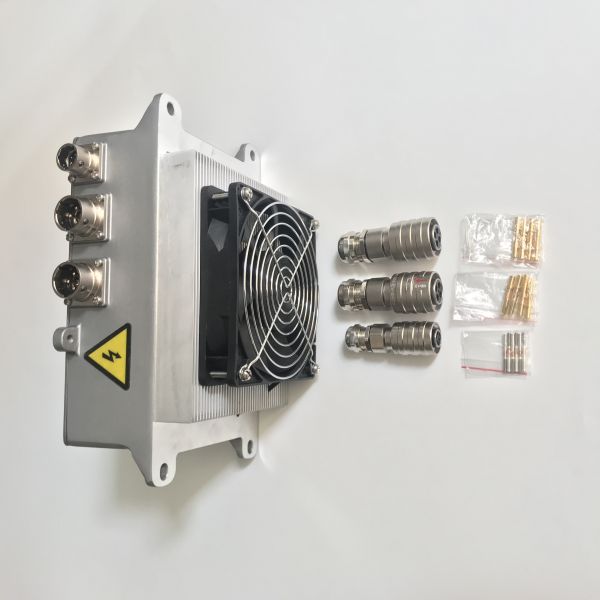

Product Images
6.6KW IP66 Waterproof Lithium Battery Charger for 72V/60V/84V Electric Vehicles 6.6KW IP66 Waterproof Lithium Battery Charger for 72V/60V/84V Electric Vehicles 6.6KW IP66 Waterproof Lithium Battery Charger for 72V/60V/84V Electric Vehicles 6.6KW IP66 Waterproof Lithium Battery Charger for 72V/60V/84V Electric Vehicles 6.6KW IP66 Waterproof Lithium Battery Charger for 72V/60V/84V Electric Vehicles
Product Appearance
(1) The outer surface should be flat, without obvious defects such as scratches and deformation. The surface coating should be uniform.
(2) The nameplates and signs are firmly installed and the handwriting is clear.
(3) The parts and components shall be fastened and reliable, and shall be free from defects and damages such as rust, burr and cracks.
(4) Each product shall be marked with a product logo, including part number, product trademark, product model, production number, production company name, warning instructions, etc., at obvious locations.
Packaging, Transportation and Storage
Packaging: Product name, model, specification, name of manufacturer are printed on the label. The box contains the product manual.
Transportation: It is suitable for transportation by car, boat and airplane. It should be protected from sun, moisture and handled with care during transportation.
Storage: When the product is not in use, it should be stored in a packing box. It should be kept in a clean, dry and well-ventilated environment at 5℃ to 40℃. Avoid exposure to sunlight, fire and water. The product has a shelf life of 2 years (from the manufacturer, from the date of storage). If the storage time exceeds 2 years, it should be tested by professional before use.
Frequently Asked Questions
What is a car battery charger?
An electric vehicle/E-car charger is a device designed to charge the vehicle battery of an electric vehicle. A power conversion device with specific functions is used to charge the battery. Electric vehicle chargers can be divided into DC chargers and AC chargers.
How many amps do I need to charge a 12 volt battery?
Most battery manufacturers recommend sizing the charger at about 25% of the battery capacity (ah = amp hour capacity). Thus, a 100 ah 12 volt battery would take about a 25 amp 12 volt charger (or less).
Where is the best car battery charger to buy?
Deligreen supplies high quality car battery chargers that are highly accepted by customers. Please send your inquiry at the end of this page, and we will contact you soon.
Is CAN protocol available?
Yes, we can supply CAN for your battery communication.
Is there LED light?
Yes, there are RED/YELLOW/GREEN LED lights for charging status indication.
Can Li-ion battery high-power chargers be charged in constant voltage mode?
Lithium batteries use constant current charging method.
What is Single-phase electricity?
Single-phase electricity refers to the form of electric energy transmission consisting of a phase wire (live wire) and a neutral wire.
Transportation & Delivery
Shipping to USA: By sea + Express (DDP, Tax free)
ETD: 5-8 days
ETA: 25-35 days after sailing (This is the delivery time for most orders. Please wait patiently or contact us online)
The tracking will be updated after pick up by local express. Usually it will take around 15-25 days after sailing.
Shipment to EU: By railway + Express (DDP, Tax free). Except Switzerland, Romania
ETD: 5-8 days
ETA: 30-45 working days after shipping (This is the delivery time for most orders. Please wait patiently or contact us online)
The tracking will be updated after pick up by local express. Usually it will take around 25-40 working days after shipping.
Other: Some remote areas not listed. Please provide shipping address and zip code to us to check.
About Us
Changsha Deligreen Power Co., LTD, founded in 2010, is a "Green Energy Solution Service Provider".
We bring newest technology, new ideas, hard-working and honest people to our business.
We focus on lithium rechargeable battery, BMS, Balancer, charger and relative products.
Main applications: electric bicycle, scooter, motorhome, AGV, solar/wind system, energy storage system, truck and more.
Our Promises:
  • We promise "real" lithium capacity
  • We promise "100%" refund for any quality problem
  • We promise "100%" replacement for any shipping damage
  • We promise lifetime fast technical support
Customers' satisfaction is our endless pursuit.
