7° Tapered Drilling Tools Long Short Skirt Rock Drilling
7° Tapered Drilling Tools Long Short Skirt Rock Drilling
7° Tapered Drilling Tools Long Short Skirt Rock Drilling
7° Tapered Drilling Tools Long Short Skirt Rock Drilling
7° Tapered Drilling Tools Long Short Skirt Rock Drilling
7° Tapered Drilling Tools Long Short Skirt Rock Drilling
Specifications
Brand Name :
Litian Heavy Industry
Model Number :
Top Hammer Drill Bit
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, D/P, L/C, Western Union, MoneyGram
Supply Ability :
According to order quantity
Delivery Time :
3-30 days
Packaging Details :
Plywooden cases
Product Name :
Tapered Button Bit
Taper :
7°
Material :
Tugestun Carbide，Structural Alloy Steel
Application :
Mining , Bolting, Drifting, Etc
Diameter :
32mm~41mm
OEM :
Acceptable
Description

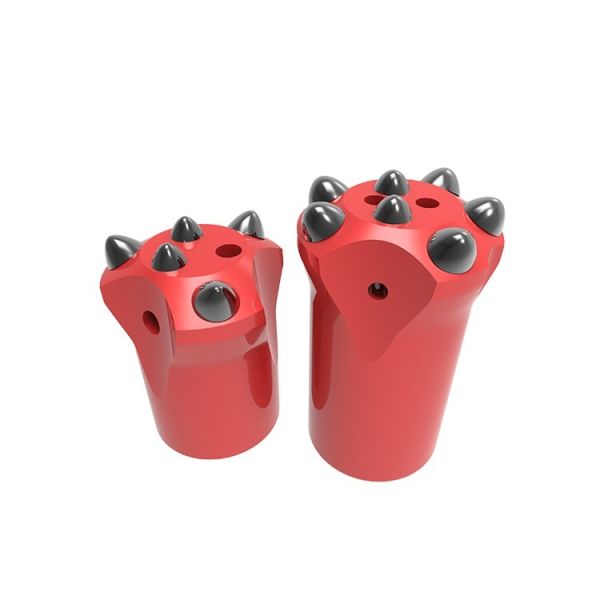

Tapered Rock Drilling Tools Button Bit 7° Long Short Skirt

The tapered drill bit is a drill bit used in conjunction with a pneumatic rock drill and a taper rod. It is connected to the drill rod through the taper to perform drilling operations. It is mainly used for secondary crushing in mines, bolting, drifting and other fields.

Product Parameters

Tapered Drill Bit Diameter No.×button diameter Flushing hole Weight
(kg)
7° mm inch Front Gauge Angle Front Side

7° Tapered Drilling Tools Long Short Skirt Rock Drilling

Button bit,Short skirt

 32 1 1/4 1×8 3×8 35° 1 1 0.24
33 1 19/64 2×7 5×7 35° 2 1 0.26
34 1 11/32 2×7 4×7 40° 1 1 0.29
35 1 3/8 2×7 5×8 35° 1 1 0.33
36 1 27/64 1×8 3×9 40° 1 1 0.37
36 1 27/64 2×7 5×8 35° 1 1 0.37
38 1 1/2 1×8 3×9 35° 1 1 0.38
38 1 1/2 2×7 5×8 35° 1 1 0.38
38 1 1/2 2×7 5×9 40° 2 1 0.38
40 1 37/64 1×8 3×9 30° 1 1 0.40
40 1 37/64 1×9 3×10 30° 1 1 0.40
40 1 37/64 1×9 3×9 35° 1 1 0.40
40 1 37/64 2×7 5×9 35° 1 1 0.40
42 1 21/32 1×8 3×9 30° 1 1 0.43
42 1 21/32 1×9 3×10 30° 1 1 0.43
42 1 21/32 1×9 3×9 35° 1 1 0.43
42 1 21/32 2×8 5×9 35° 1 1 0.43

7° Tapered Drilling Tools Long Short Skirt Rock Drilling

Button bit, Long skirt

 32 1 1/4 2×7 5×7 35° 1 1 0.30
33 1 19/64 2×7 5×7 35° 1 1 0.31
35 1 3/8 2×7 5×8 35° 1 1 0.36
38 1 1/2 2×7 5×9 35° 1 1 0.41
41 1 5/8 2×7 5×9 35° 1 1 0.42
