Hexagonal Tapered Drilling Tools Top Hammer Drill Rods For Quarrying
Hexagonal Tapered Drilling Tools Top Hammer Drill Rods For Quarrying
Hexagonal Tapered Drilling Tools Top Hammer Drill Rods For Quarrying
Hexagonal Tapered Drilling Tools Top Hammer Drill Rods For Quarrying
Hexagonal Tapered Drilling Tools Top Hammer Drill Rods For Quarrying
Hexagonal Tapered Drilling Tools Top Hammer Drill Rods For Quarrying
Specifications
Brand Name :
Litian Heavy Industry
Model Number :
Top Hammer Drill Rod
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, D/P, L/C, Western Union, MoneyGram
Supply Ability :
According to order quantity
Delivery Time :
3-30 days
Packaging Details :
Plywooden cases
Taper :
7°，11°，12°
Material :
Structural Alloy Steel
Body Type :
Hexagonal Type
Application :
Blasting , Mining , Quarrying, Small hole drilling
Length :
610mm~2440mm
Custom Design :
Thread, Diameter, Length Can Be Customized
Description

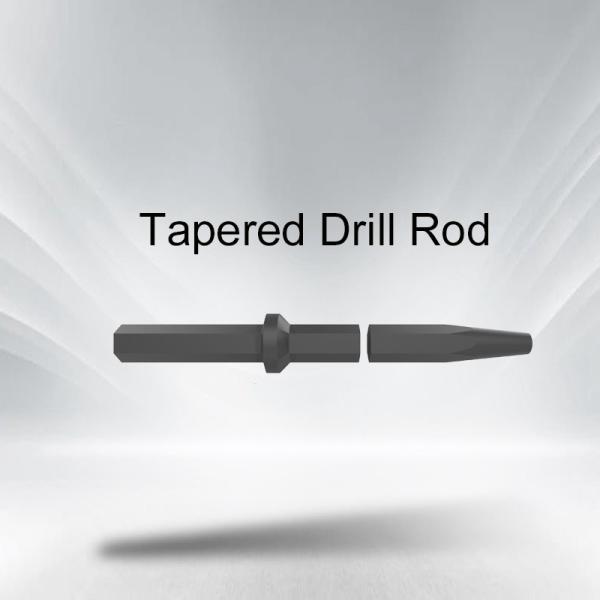

Tapered Drill Rod Handheld Drilling Tools

Handheld rock drilling is a type of rock drilling carried out with a light-weight rock drilling machine. It is mainly used in small construction sites or environments where larger equipment cannot be used in a limited space.

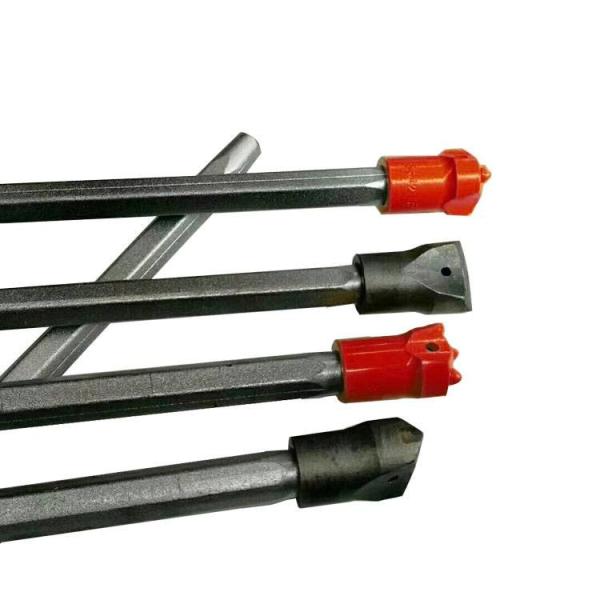

The tapered drill rod is generally configured on a handheld light-weight rock drill, and is mainly used for drilling in quarries, coal mine rock drilling, and blasting holes.

Product Parameters

Tapered Drill Rod Length Diameter Weight(kg) Model No.
mm feet/inch mm inch

Hexagonal Tapered Drilling Tools Top Hammer Drill Rods For Quarrying

Tapered drill rod, Hex 22, 7°

 1800 5.91' 22 7/8" 5.78 H22-H22-1800
2400 7' 10" 22 7/8" 7.6 H22-H22-2400
　 　 　 　 　 　 　

Hexagonal Tapered Drilling Tools Top Hammer Drill Rods For Quarrying

Tapered drill rod, Hex 22, 11°

 1220 4' 22 7/8" 4.02 H22-H22-1200
1830 6' 22 7/8" 5.87 H22-H22-1830
　 　 　 　 　 　 　

Hexagonal Tapered Drilling Tools Top Hammer Drill Rods For Quarrying

Tapered drill rod, Hex 22, 12°

 610 2' 22 7/8" 2.19 H22-H22-610
1220 4' 22 7/8" 4.05 H22-H22-1220
1830 6' 22 7/8" 5.91 H22-H22-1830.2
2440 8' 22 7/8" 7.77 H22-H22-2400.2
　 　 　 　 　 　 　

Hexagonal Tapered Drilling Tools Top Hammer Drill Rods For Quarrying

Tapered drill rod, Hex 25, 7°

 2400 7' 10" 25 1" 8.15 H25-H25-2400
1800 5.91' 25 1" 6.35 H25-H25-1800
