Specifications
Brand Name :
Litian Heavy Industry
Model Number :
Top Hammer Drill Bit
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, D/P, L/C, Western Union, MoneyGram
Supply Ability :
According to order quantity
Delivery Time :
3-30 days
Packaging Details :
Plywooden cases
Product Name :
Tapered drill bit
Material :
Tugestun Carbide，Structural Alloy Steel
Taper :
4°, 7°
Diameter :
26mm~43mm
Type :
Horseshoe Chisel
OEM :
Acceptable
Description

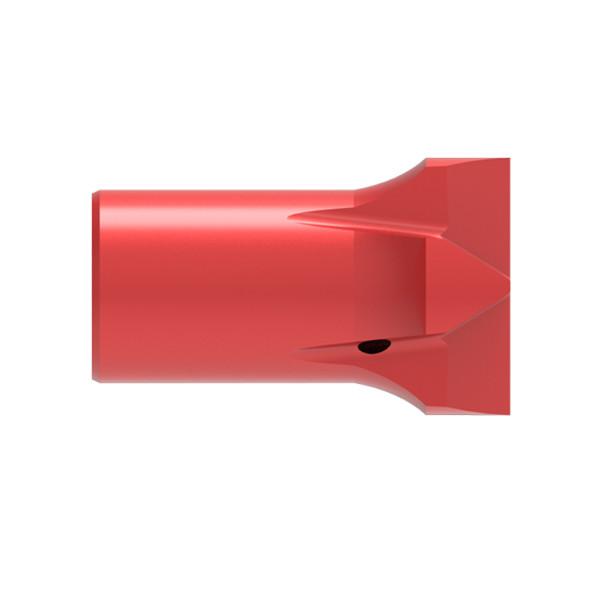

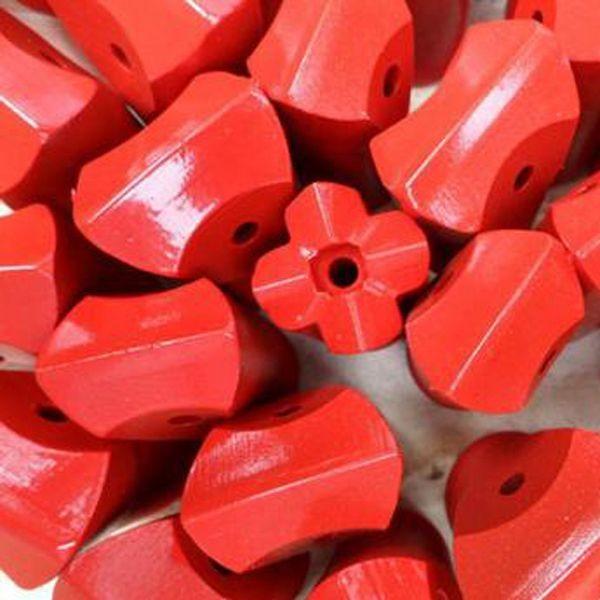

Tapered drill bit 4° 7° rock drilling tools

The tapered drill bit is a drill bit used in conjunction with a pneumatic rock drill and a taper rod. It is connected to the drill rod through the taper to perform drilling operations. It is mainly used for secondary crushing in mines, bolting, drifting and other fields.

Product Parameters

Tapered Drill Bit Diameter Tip size Weight
(kg)		 Taper For class of rock
mm inch Height×Width

Horseshoe Chisel Cross Type Tapered Drilling Tools Top Hammer Drill Bits

Horseshoe chisel bit

 26 1 1/32 10×7 0.17 7° 10-14
28 1 7/64 10×7 0.18 7° 10-14
30 1 3/16 13.5×8 0.22 7° 8-12
30 1 3/16 13.5×8 0.22 7° 10-14
32 1 1/4 13.5×8 0.24 7° 8-12
32 1 1/4 13.5×8 0.24 7° 10-14
34 1 11/32 13.5×8 0.27 7° 8-12
34 1 11/32 13.5×8 0.27 7° 10-14
36 1 27/64 13.5×8 0.30 7° 8-12
36 1 27/64 13.5×8 0.30 7° 10-14
38 1 1/2 13.5×8 0.33 7° 8-12
38 1 1/2 13.5×8 0.33 7° 10-14
38 1 1/2 15×9 0.33 7° 8-12
38 1 1/2 15×9 0.33 7° 10-14
40 1 37/64 13.5×9.2 0.38 7° 8-12
40 1 37/64 13.5×9.2 0.38 7° 10-14
40 1 37/64 13.5×9.2 0.38 7° 14-16
40 1 37/64 13.5×9.2 0.38 7° 16-18
40 1 37/64 15×9.8 0.38 7° 8-12
40 1 37/64 15×9.8 0.38 7° 10-14
40 1 37/64 15×9.8 0.38 7° 14-16
40 1 37/64 15×9.8 0.38 7° 16-18
42 1 21/32 13.5×9.2 0.41 7° 8-12
42 1 21/32 13.5×9.2 0.41 7° 10-14
42 1 21/32 13.5×9.2 0.41 7° 14-16
42 1 21/32 13.5×9.2 0.41 7° 16-18
42 1 21/32 15×9.8 0.41 7° 8-12
42 1 21/32 15×9.8 0.41 7° 10-14
42 1 21/32 15×9.8 0.41 7° 10-14
42 1 21/32 15×9.8 0.41 7° 16-18
43 1 11/16 13.5×9.2 0.42 7° 8-12
43 1 11/16 13.5×9.2 0.42 7° 10-14
43 1 11/16 15×9.8 0.42 7° 8-12
43 1 11/16 15×9.8 0.42 7° 10-14

Horseshoe Chisel Cross Type Tapered Drilling Tools Top Hammer Drill Bits

Oblique chipways chisel bit

 20 25/32 12×6 0.10 4° 10-14
22 55/64 12×6 0.12 4° 10-14
24 15/16 12×6 0.14 4° 10-14
26 1 1/32 12×6 0.16 4° 10-14
28 1 7/64 13×8 0.19 7° 10-14
30 1 3/16 13.5×8 0.22 7° 10-14
32 1 1/4 13.5×8 0.24 7° 10-14
33 1 19/64 13.5×8 0.25 7° 10-14
34 1 11/32 13.5×8 0.27 7° 10-14
36 1 27/64 13.5×8 0.29 7° 10-14
38 1 1/2 13.5×8 0.34 7° 10-14
40 1 37/64 13.5×9.2 0.40 7° 10-14
41 1 5/8 13.5×9.2 0.41 7° 10-14
42 1 21/32 13.5×9.2 0.43 7° 10-14

Horseshoe Chisel Cross Type Tapered Drilling Tools Top Hammer Drill Bits

Flat chipways chisel bit

 38 1 1/2 16×10 0.36 7° 10-14
40 1 37/64 16×10 0.38 7° 10-14
41 1 5/8 16×10 0.41 7° 10-14
42 1 21/32 16×10 0.43 7° 10-14
45 1 3/4 22×16×10 0.60 7° 10-14
46 1 3/4 22×16×10 0.61 7° 10-14
48 1 7/8 22×16×10 0.63 7° 10-14
50 1 31/32 22×16×10 0.65 7° 10-14
56 2 1/4 24×16×10 0.82 7° 10-14
60 2 23/64 26×16×10 0.91 7° 10-14
65 2 1/2 26×16×10 1.12 7° 10-14
80 3 1/8 36×16×10 1.40 7° 10-14

Horseshoe Chisel Cross Type Tapered Drilling Tools Top Hammer Drill Bits

Oblique-flat chipways chisel bit

 36 1 27/64 15×10 0.40 7° 10-14
38 1 1/2 15×10 0.42 7° 10-14
40 1 37/64 15×10 0.45 7° 10-14
41 1 5/8 15×10 0.47 7° 10-14
42 1 21/32 15×10 0.49 7° 10-14
43 1 11/16 15×10 0.51 7° 10-14

Horseshoe Chisel Cross Type Tapered Drilling Tools Top Hammer Drill Bits

Cross-type bit

 30 1 3/16 12×12×8 0.29 7° 11-15
32 1 1/4 12×12×8 0.31 7° 11-15
33 1 19/64 12×12×8 0.33 7° 11-15
34 1 11/32 12×12×8 0.34 7° 11-15
35 1 3/8 12×12×8 0.36 7° 11-15
36 1 27/64 13×12×8 0.37 7° 11-15
38 1 1/2 14×12×8 0.43 7° 11-15
40 1 37/64 15×12×8 0.47 7° 11-15
41 1 5/8 15×12×8 0.49 7° 11-15
42 1 21/32 15×12×8 0.51 7° 11-15
43 1 11/16 15×12×8 0.53 7° 11-15
45 1 3/4 17×14×8 0.58 7° 11-15
48 1 7/8 17×14×8 0.67 7° 11-15
50 1 31/32 19×14×8 0.72 7° 11-15
55 2 1/4 20×16×10 0.92 7° 11-15
60 2 3/8 22×16×10 1.19 7° 11-15
