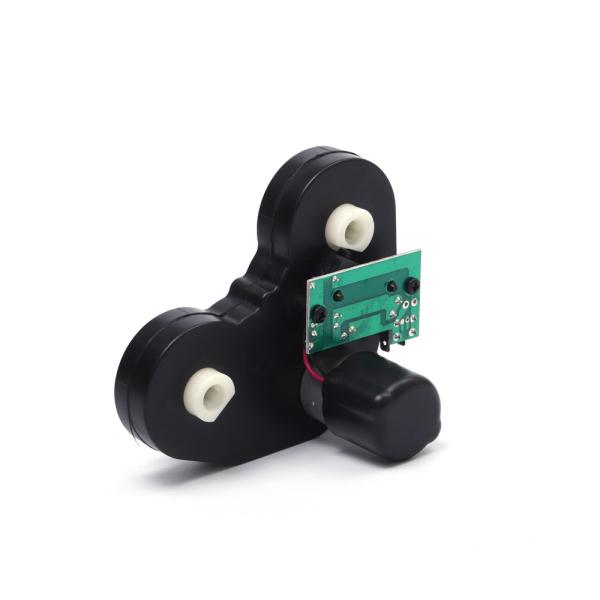

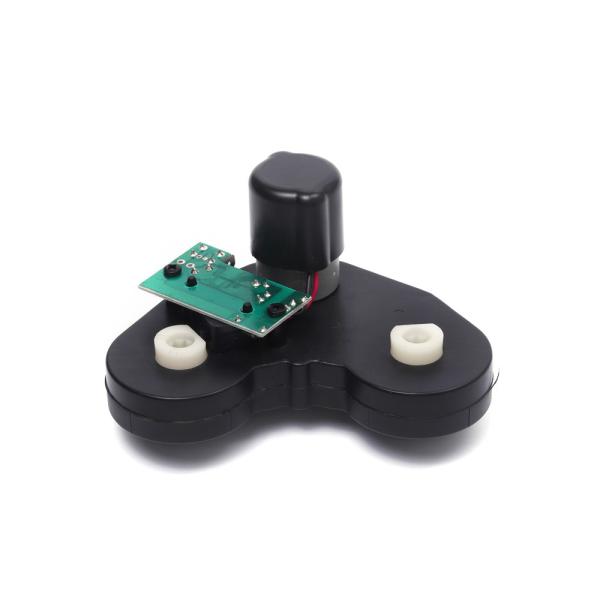

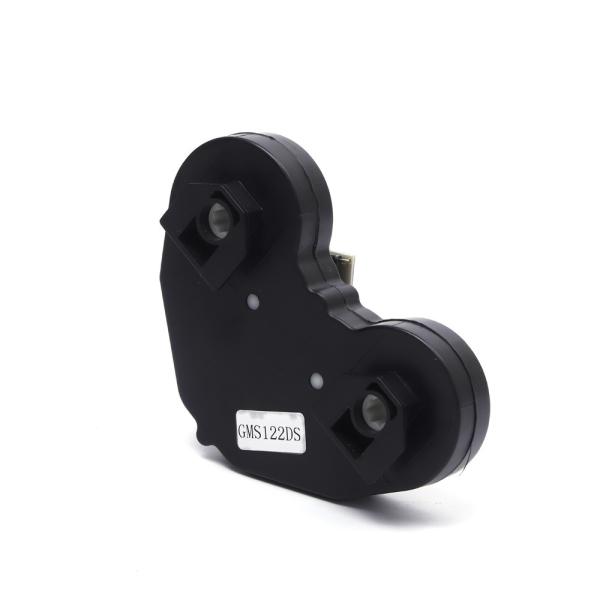

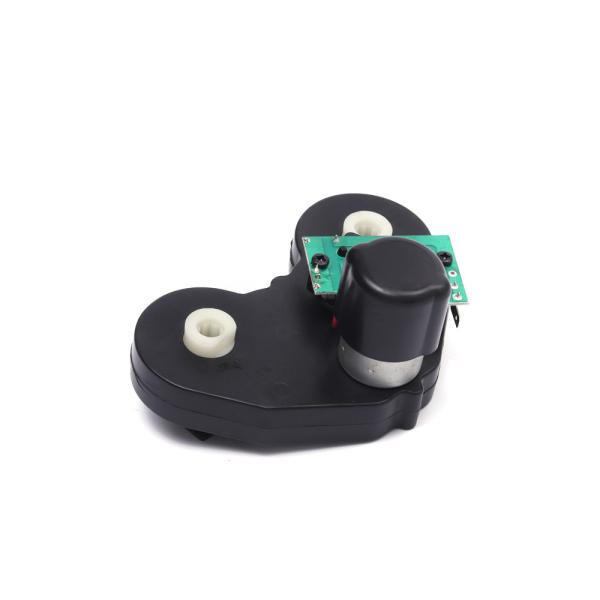

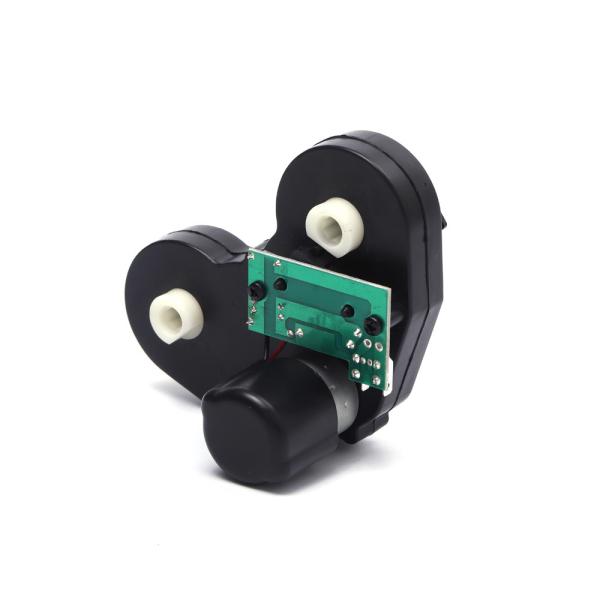

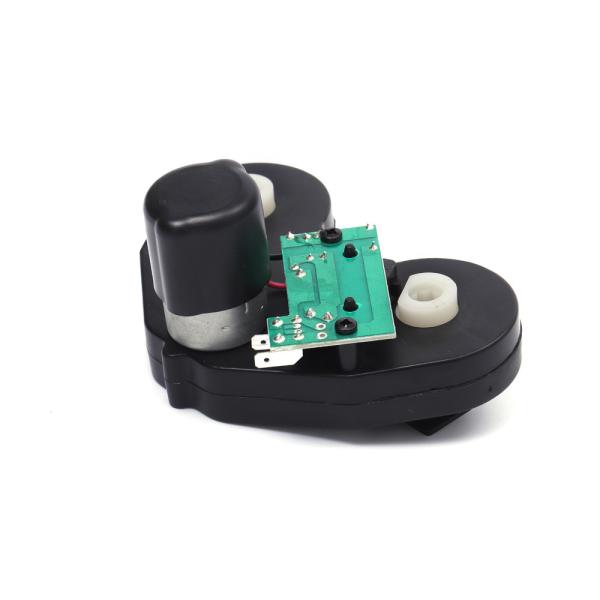

Double Output RS365 Dc Geared Motor 12VDC 24VDC GMS122DS Square Shape
Double Output RS365 Dc Geared Motor 12VDC 24VDC GMS122DS Square Shape
Double Output RS365 Dc Geared Motor 12VDC 24VDC GMS122DS Square Shape
Double Output RS365 Dc Geared Motor 12VDC 24VDC GMS122DS Square Shape
Double Output RS365 Dc Geared Motor 12VDC 24VDC GMS122DS Square Shape
Double Output RS365 Dc Geared Motor 12VDC 24VDC GMS122DS Square Shape
Double Output RS365 Dc Geared Motor 12VDC 24VDC GMS122DS Square Shape
Double Output RS365 Dc Geared Motor 12VDC 24VDC GMS122DS Square Shape
Double Output RS365 Dc Geared Motor 12VDC 24VDC GMS122DS Square Shape
Double Output RS365 Dc Geared Motor 12VDC 24VDC GMS122DS Square Shape
Double Output RS365 Dc Geared Motor 12VDC 24VDC GMS122DS Square Shape
Double Output RS365 Dc Geared Motor 12VDC 24VDC GMS122DS Square Shape
Specifications
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
The price ranges from 10 to 50 yuan per unit. The specific model requirements vary
Packaging Details :
Carton with pallet
Delivery Time :
30work days
Payment Terms :
T/T
Supply Ability :
100,000 units per month
Model Number :
GMS122DS
Brand Name :
LINO
Certification :
ROHS
VOLTAGE :
12VDC, 24VDC
Direction of rotation :
CW, CCW
Motor type :
RS365
Output :
double
Description

DC GEAR MOTOR GMS122DS

Products' type: DC geared motor

Double Output RS365 Dc Geared Motor 12VDC 24VDC GMS122DS Square Shape
Model: GMS122DS
Sort: Square shape DC geared motor
Typical applications: vending machine,coffee machine,communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…
Weight 164g (approx)

MODEL VOLTAGE AT NO LOAD AT MAXIMUM EFFICIENCY AT STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC RPM A RPM A mN.m kg.cm mN.m kg.cm A
GMS122DS-365 24 24 0.11 19 0.29 1519 15.500 8232 84.000 1.17
Base motor option RS360,RS365,RS380,RS385,RS390,RS395
Gear ratio option 419
Note The specifications and output shaft can be changed as customer's request.
Packing detail Carton, Size: 49X40X58.5CM;90pcs/carton; G.W:16.8Kg.

Double Output RS365 Dc Geared Motor 12VDC 24VDC GMS122DS Square Shape

Double Output RS365 Dc Geared Motor 12VDC 24VDC GMS122DS Square Shape
