RF520 RF500 RS365 RS385 DC MOTOR 6VDC 12VDC 24VDC Customizable Shaft GM59
RF520 RF500 RS365 RS385 DC MOTOR 6VDC 12VDC 24VDC Customizable Shaft GM59
RF520 RF500 RS365 RS385 DC MOTOR 6VDC 12VDC 24VDC Customizable Shaft GM59
RF520 RF500 RS365 RS385 DC MOTOR 6VDC 12VDC 24VDC Customizable Shaft GM59
RF520 RF500 RS365 RS385 DC MOTOR 6VDC 12VDC 24VDC Customizable Shaft GM59
RF520 RF500 RS365 RS385 DC MOTOR 6VDC 12VDC 24VDC Customizable Shaft GM59
RF520 RF500 RS365 RS385 DC MOTOR 6VDC 12VDC 24VDC Customizable Shaft GM59
RF520 RF500 RS365 RS385 DC MOTOR 6VDC 12VDC 24VDC Customizable Shaft GM59
Specifications
Model Number :
GM59
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
The price ranges from 10 to 50 yuan per unit. The specific model requirements vary
Payment Terms :
T/T
Supply Ability :
100,000 units per month
Delivery Time :
30work days
Packaging Details :
Carton with pallet
Brand Name :
LINO
Certification :
ROHS
VOLTAGE :
6VDC,12VDC,24VDC
Direction of rotation :
CW, CCW
Motor type :
RF520,RF500,RS365,RS385 DC MOTOR
Shaft :
Customizable
GEAR RATIO :
from 75 to 1302083
Description

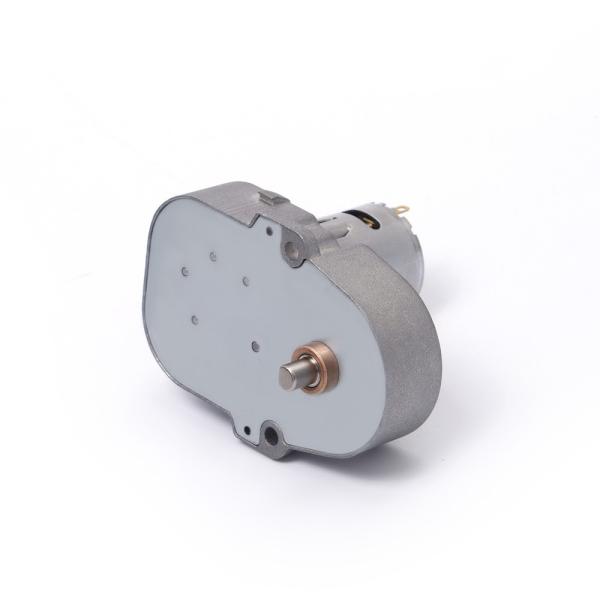

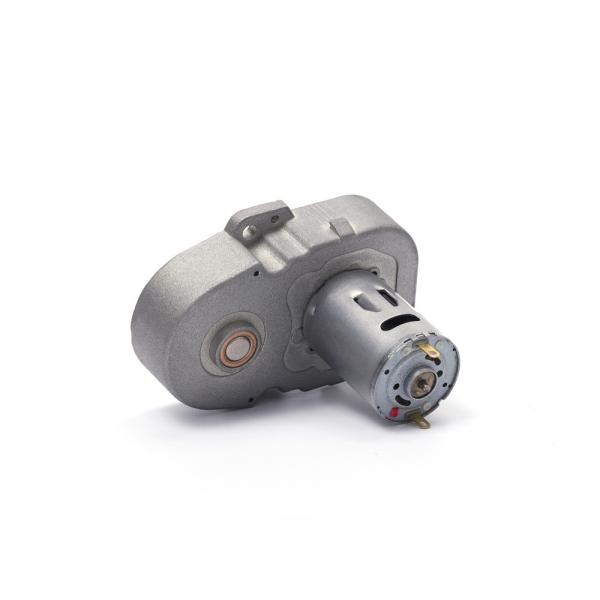

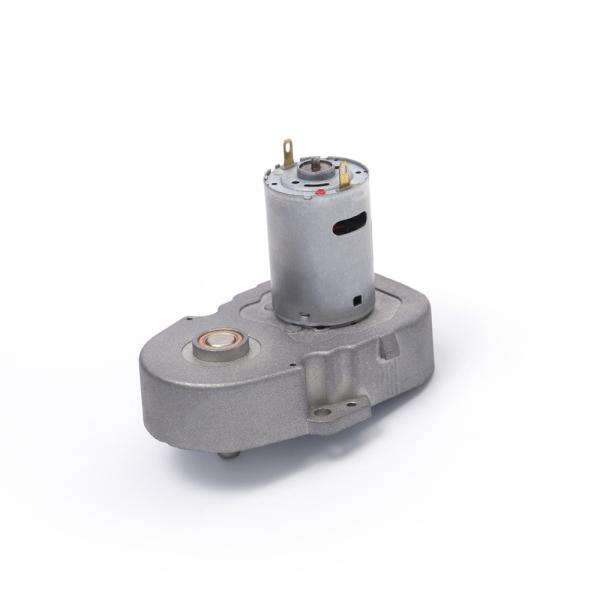

DC GEAR MOTOR GM59

Products' type: DC geared motor

RF520 RF500 RS365 RS385 DC MOTOR 6VDC 12VDC 24VDC Customizable Shaft GM59
Model: GM59
Sort: Pear shape DC geared motor
Typical applications: Valve,coffee machine, coin machine,communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…
Weight 257g (approx)

MODEL VOLTAGE AT NO LOAD AT MAXIMUM EFFICIENCY AT STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC RPM A RPM A mN.m kg.cm mN.m kg.cm A
GM59625-360 24 10.7 0.07 8.25 0.235 2156 22.000 9408 96.000 0.8
Base motor option RS360,RS365,RS380,RS385,RS390,RS395,RF500,RF520
Gear ratio option

A:104.17,138.9,140.625,156.25,187.5,208.3,210.9,250,277.8,281.25,312.5,333.3,351.6,375,416.7,421.875,468.75,500,520.8,562.5,625,694.4,

703.125,750,833.3,843.75,937.5,1125,1171.875,1250,1406.25,1562.5,1875,2083.3,2343.75,3125,3906.25,5208.3

B:2373,3164,4218.75,4746,5625,6328.125,7500,7910,8437.5,9492,10000,10546.875,11250,12656.25,13333.3,14062.5,15000,15820,16875,18750,

18984.375,20000,21093.75,22500,25000,25312.5,26367,28125,30000,31640.625,33333.3,33750,35156.25,37500,37968.75,42187.5,45000,46875,

50000,50625,52734.375,56250,62500,63281.25,67500,70312.5,75000,75937.5,83333.3,84375,87890.625,93750,101250,105468.75,112500,117187.5,

125000,126562.5,140625,156250,168750,175781.25,187500,208333.3,210937.5,234375,281250,292968.75,312500,351562.5,390625,468750,520833.3,

585937.5,781250,976562.5,1302083.3

C:31.25 , 34.72, 52.08, 11.25, 12.5, 15 , 18.75 , 20
Note The specifications and output shaft can be changed as customer's request.
Packing detail Carton, Size: 52X36X36CM;100pcs/carton; G.W:29Kg.
