Square Shape DC Geared Motor 137g GMF6345 For Solar Tracking System Optical Equipment
Square Shape DC Geared Motor 137g GMF6345 For Solar Tracking System Optical Equipment
Square Shape DC Geared Motor 137g GMF6345 For Solar Tracking System Optical Equipment
Square Shape DC Geared Motor 137g GMF6345 For Solar Tracking System Optical Equipment
Square Shape DC Geared Motor 137g GMF6345 For Solar Tracking System Optical Equipment
Square Shape DC Geared Motor 137g GMF6345 For Solar Tracking System Optical Equipment
Square Shape DC Geared Motor 137g GMF6345 For Solar Tracking System Optical Equipment
Square Shape DC Geared Motor 137g GMF6345 For Solar Tracking System Optical Equipment
Square Shape DC Geared Motor 137g GMF6345 For Solar Tracking System Optical Equipment
Square Shape DC Geared Motor 137g GMF6345 For Solar Tracking System Optical Equipment
Specifications
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
Negotiable
Packaging Details :
Carton with pallet
Delivery Time :
30work days
Payment Terms :
T/T
Supply Ability :
100,000 units per month
Model Number :
GMF6345
VOLTAGE :
6VDC,12VDC,24VDC
Direction of rotation :
CW, CCW
Motor type :
530
Shaft :
Customizable
Brand Name :
LINO
Certification :
ROHS
Description

DC GEAR MOTOR GMF6345

Products' type: DC geared motor

Square Shape DC Geared Motor 137g GMF6345 For Solar Tracking System Optical Equipment
Model: GMF6345
Sort: Square shape DC geared motor
Typical applications: Solar tracking system, optical equipment, medical instrumentation, office equipment, household appliances,etc…
Weight 137g (approx)

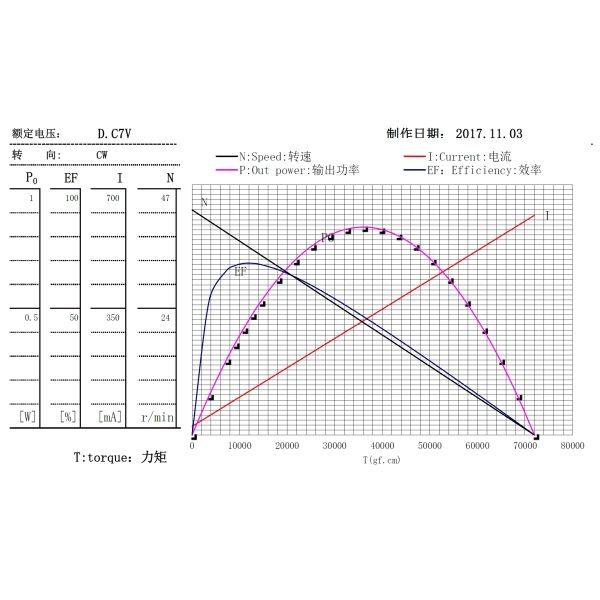

MODEL VOLTAGE AT NO LOAD AT MAXIMUM EFFICIENCY AT STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC RPM A RPM A mN.m kg.cm mN.m kg.cm A
GMF634557-3230 7 42 0.85 30.5 0.23 176.4 1.800 637 6.500 0.61
Base motor option 3330
Gear ratio option 57
Note The specifications and output shaft can be changed as customer's request.
Packing detail Carton, Size: 51X51X8CM;45pcs/carton; G.W:7.3Kg.
