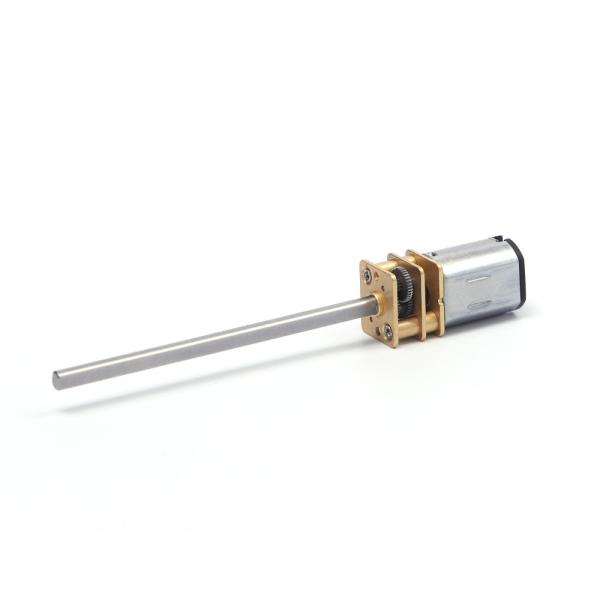

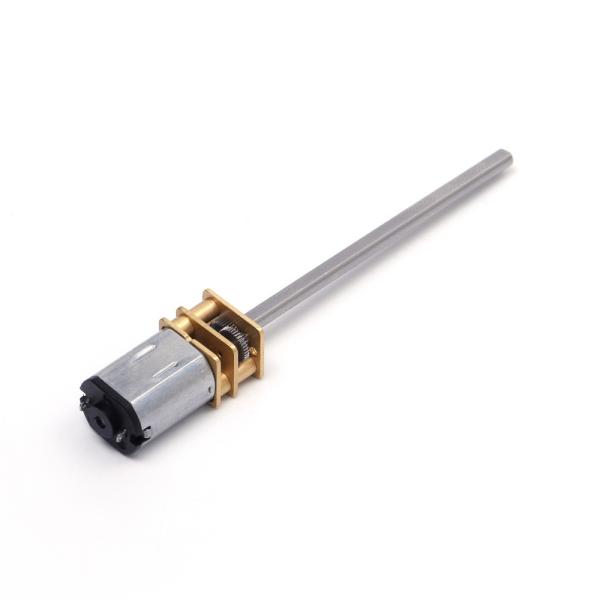

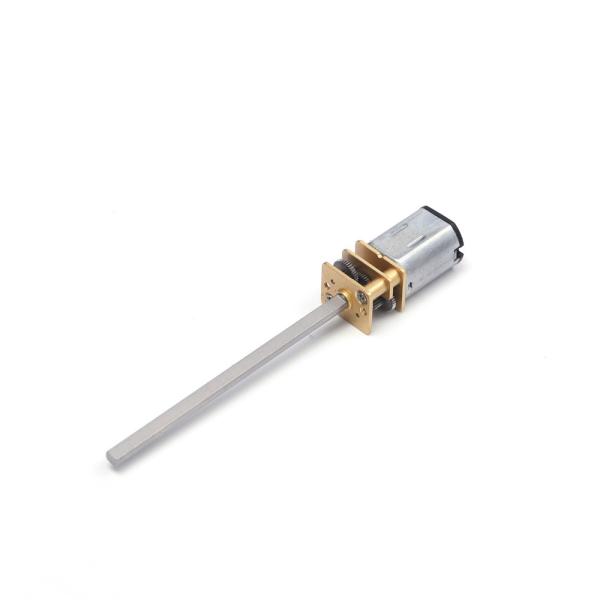

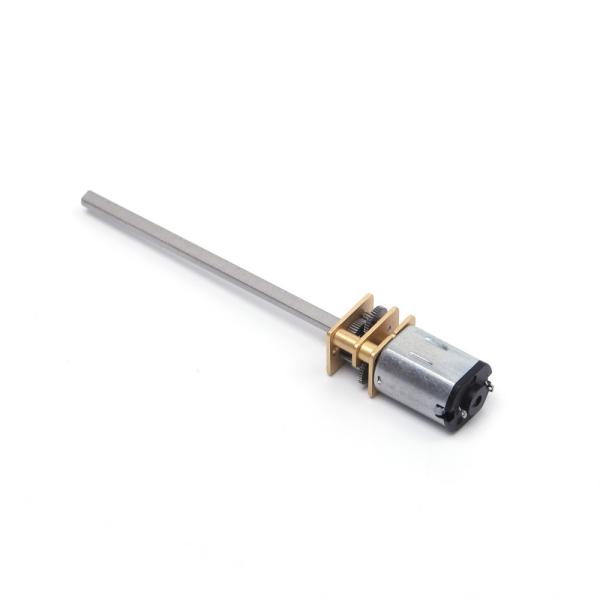

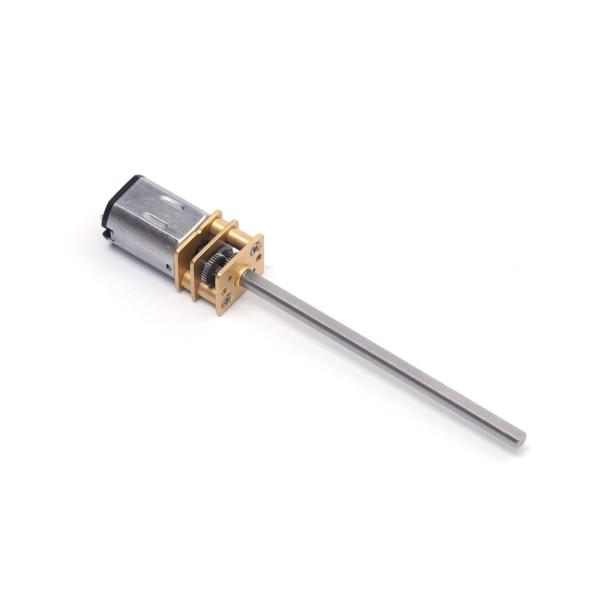

Square Shape DC GEAR Lino Motor 10g GMF12 For Electronic Lock
Square Shape DC GEAR Lino Motor 10g GMF12 For Electronic Lock
Square Shape DC GEAR Lino Motor 10g GMF12 For Electronic Lock
Square Shape DC GEAR Lino Motor 10g GMF12 For Electronic Lock
Square Shape DC GEAR Lino Motor 10g GMF12 For Electronic Lock
Square Shape DC GEAR Lino Motor 10g GMF12 For Electronic Lock
Square Shape DC GEAR Lino Motor 10g GMF12 For Electronic Lock
Square Shape DC GEAR Lino Motor 10g GMF12 For Electronic Lock
Square Shape DC GEAR Lino Motor 10g GMF12 For Electronic Lock
Square Shape DC GEAR Lino Motor 10g GMF12 For Electronic Lock
Specifications
Model Number :
GMF12
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
The price ranges from 10 to 50 yuan per unit. The specific model requirements vary
Payment Terms :
T/T
Supply Ability :
100,000 units per month
Delivery Time :
30work days
Packaging Details :
Carton with pallet
Description

DC GEAR MOTOR GMF12

Products' type: DC geared motor

Square Shape DC GEAR Lino Motor 10g GMF12 For Electronic Lock
Model: GMF12
Sort: Square shape DC geared motor
Typical applications: Electronic lock, optical equipment, medical instrumentation, office equipment, Stereo Equipment,household appliances, Vedio Game
Weight 10g (approx)

MODEL VOLTAGE AT NO LOAD AT MAXIMUM EFFICIENCY AT STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC RPM A RPM A mN.m kg.cm mN.m kg.cm A
GMF12298N2009170 4.5 53 0.05 41.87 0.169 41.944 0.428 199.724 2.038 0.63
Base motor option N20,N30
Gear ratio option 5,10,15,30,35,50,75,100,150,210,256,298,380,429(L= 9mm)
Note The specifications and output shaft can be changed as customer's request.
Packing detail Carton, Size: 31X24X31CM;800pcs/carton; G.W:11.5Kg.

Square Shape DC GEAR Lino Motor 10g GMF12 For Electronic Lock

Square Shape DC GEAR Lino Motor 10g GMF12 For Electronic Lock
