Specifications
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
The price ranges from 10 to 50 yuan per unit. The specific model requirements vary
Packaging Details :
Carton with pallet
Delivery Time :
30work days
Payment Terms :
T/T
Supply Ability :
100,000 units per month
Model Number :
GMF8137
Brand Name :
LINO
Certification :
ROHS
Voltage range :
6VDC,12VDC,24VDC
Direction of rotation :
CW, CCW
Motor type :
365
Description

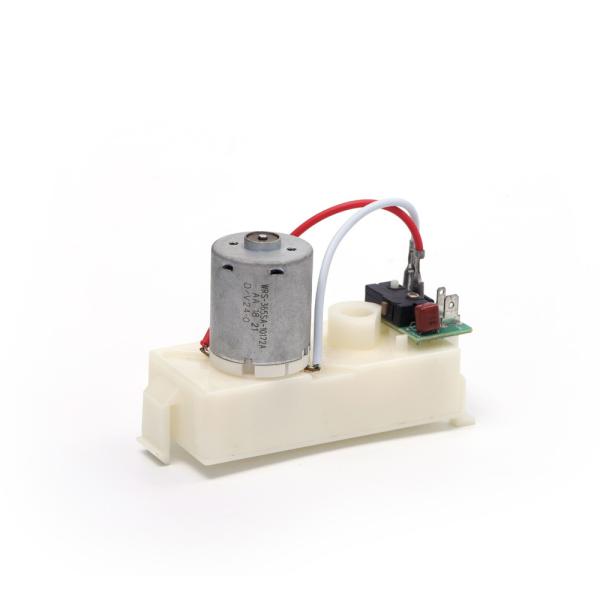

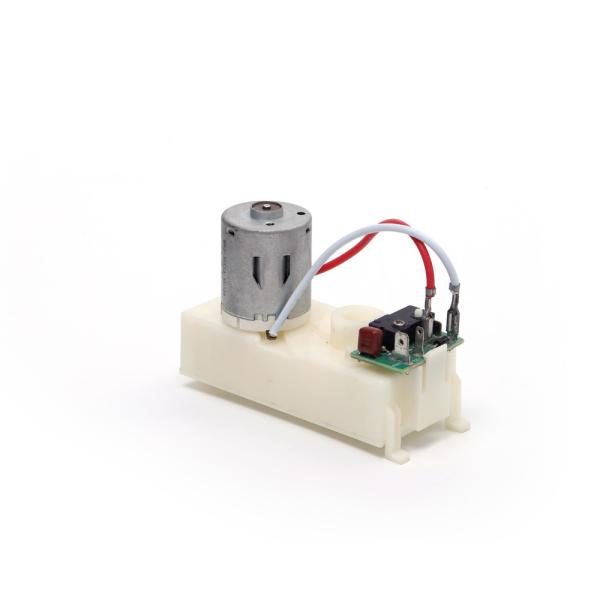

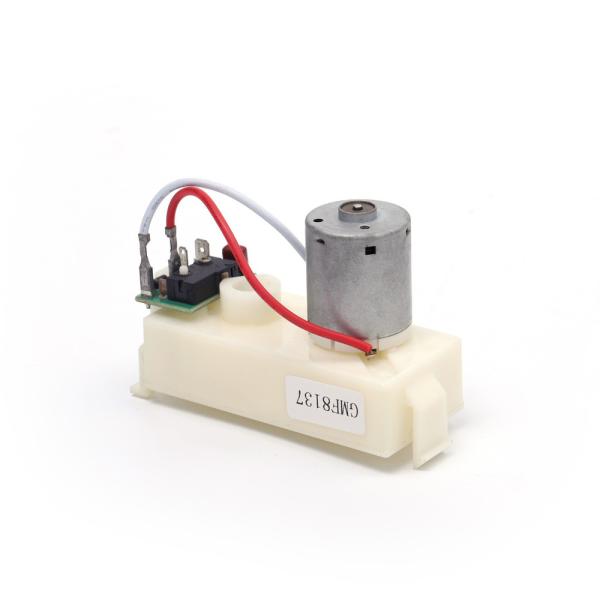

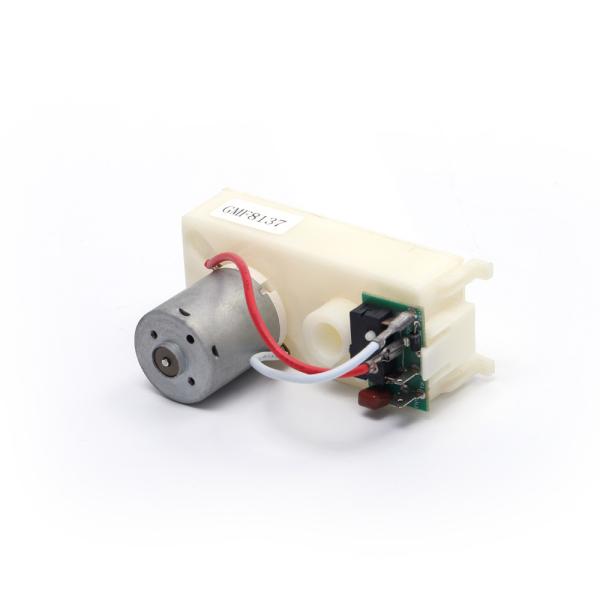

DC GEAR MOTOR GMF8137

Products' type: DC geared motor

90g 24v Dc Gear Motor High Torque RS360 RS365 RS380 Rs 385 Dc Motor GMF8137
Model: GMF8137
Sort: Square shape DC geared motor
Typical applications: vending machine,coffee machine,communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…
Weight 90g (approx)

MODEL VOLTAGE AT NO LOAD AT MAXIMUM EFFICIENCY AT STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC RPM A RPM A mN.m kg.cm mN.m kg.cm A
GMF8251-365 24 25 0.11 19 0.34 1519 15.500 6370 65.000 1.09
Base motor option RS360,RS365,RS380,RS385,RS390,RS395
Gear ratio option 399.3
Note The specifications and output shaft can be changed as customer's request.
Packing detail Carton, Size:49.5X28X42CM;200pcs/carton; G.W:19.8Kg.
