118g 24RPM DC Gear Motor RS390 RS395 GMF8964 RS365 For Vending Machine Induced Garbage Can
118g 24RPM DC Gear Motor RS390 RS395 GMF8964 RS365 For Vending Machine Induced Garbage Can
118g 24RPM DC Gear Motor RS390 RS395 GMF8964 RS365 For Vending Machine Induced Garbage Can
118g 24RPM DC Gear Motor RS390 RS395 GMF8964 RS365 For Vending Machine Induced Garbage Can
118g 24RPM DC Gear Motor RS390 RS395 GMF8964 RS365 For Vending Machine Induced Garbage Can
118g 24RPM DC Gear Motor RS390 RS395 GMF8964 RS365 For Vending Machine Induced Garbage Can
118g 24RPM DC Gear Motor RS390 RS395 GMF8964 RS365 For Vending Machine Induced Garbage Can
118g 24RPM DC Gear Motor RS390 RS395 GMF8964 RS365 For Vending Machine Induced Garbage Can
118g 24RPM DC Gear Motor RS390 RS395 GMF8964 RS365 For Vending Machine Induced Garbage Can
118g 24RPM DC Gear Motor RS390 RS395 GMF8964 RS365 For Vending Machine Induced Garbage Can
Specifications
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
The price ranges from 10 to 50 yuan per unit. The specific model requirements vary
Packaging Details :
Carton with pallet
Delivery Time :
30work days
Payment Terms :
T/T
Supply Ability :
100,000 units per month
Model Number :
GMF8964
Brand Name :
LINO
Certification :
ROHS
VOLTAGE :
12VDC,24VDC
Direction of rotation :
CW, CCW
Motor type :
RS365
Description

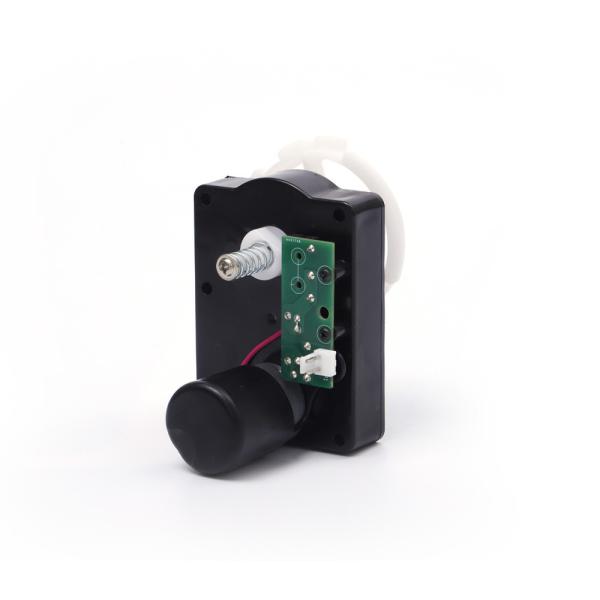

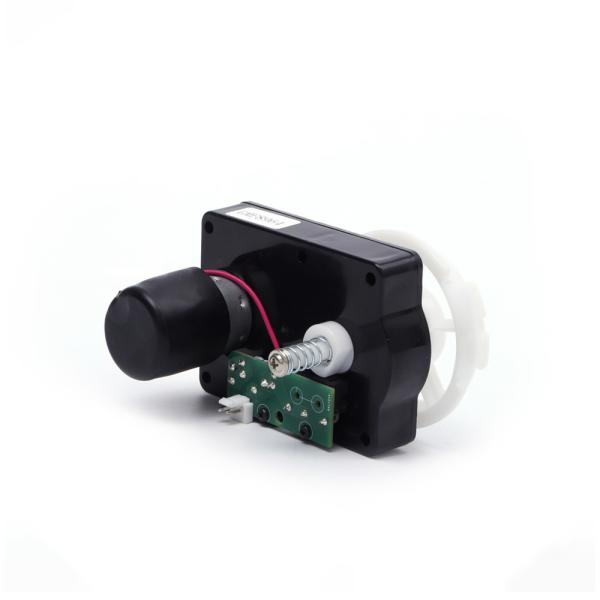

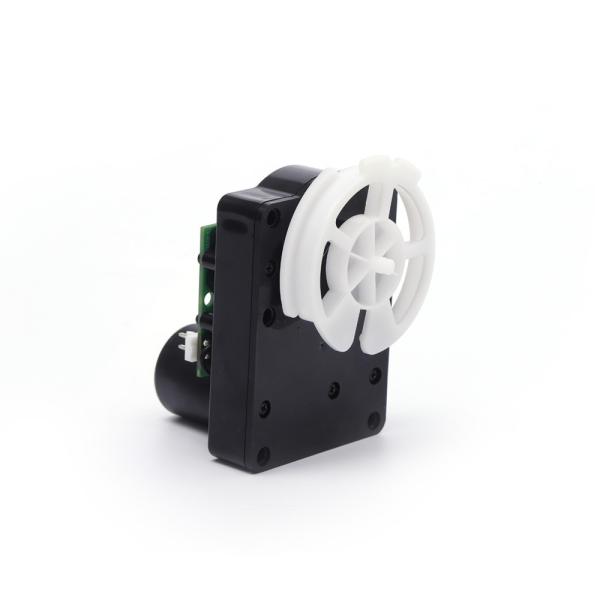

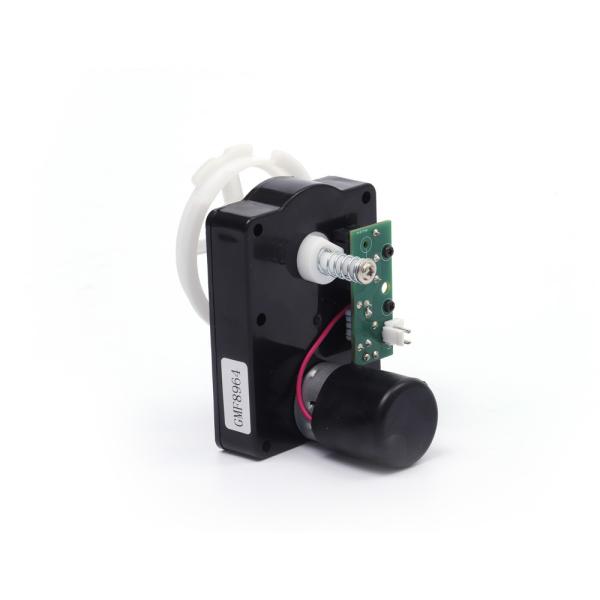

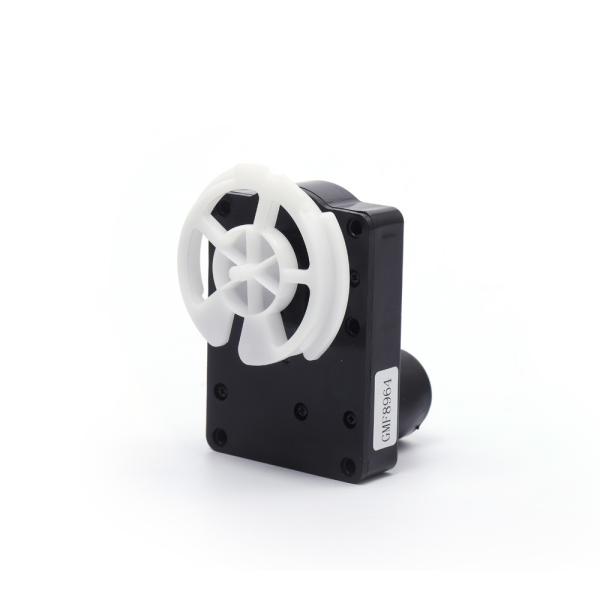

DC GEAR MOTOR GMF8964

Products' type: DC geared motor

118g 24RPM DC Gear Motor RS390 RS395 GMF8964 RS365 For Vending Machine Induced Garbage Can
Model: GMF8964
Sort: Square shape DC geared motor
Typical applications: vending machine,coffee machine,communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…
Weight 118g (approx)

MODEL VOLTAGE AT NO LOAD AT MAXIMUM EFFICIENCY AT STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC RPM A RPM A mN.m kg.cm mN.m kg.cm A
GMF8964-365 24 24 0.11 19 0.29 1519 15.500 8232 84.000 1.17
Base motor option RS360,RS365,RS380,RS385,RS390,RS395
Gear ratio option 419
Note The specifications and output shaft can be changed as customer's request.
Packing detail Carton, Size: 40X35X41.5CM;108pcs/carton; G.W:14.5Kg.
