Specifications
Model Number :
GMF6136
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
The price ranges from 10 to 50 yuan per unit. The specific model requirements vary
Supply Ability :
100,000 units per month
Delivery Time :
30work days
Packaging Details :
Carton with pallet
Payment Terms :
T/T
Brand Name :
LINO
Certification :
ROHS
VOLTAGE :
6VDC,12VDC,24VDC
Direction of rotation :
CW, CCW
Motor type :
370 OR 365 OR 385 DC MOTOR
Shaft :
Customizable
Description

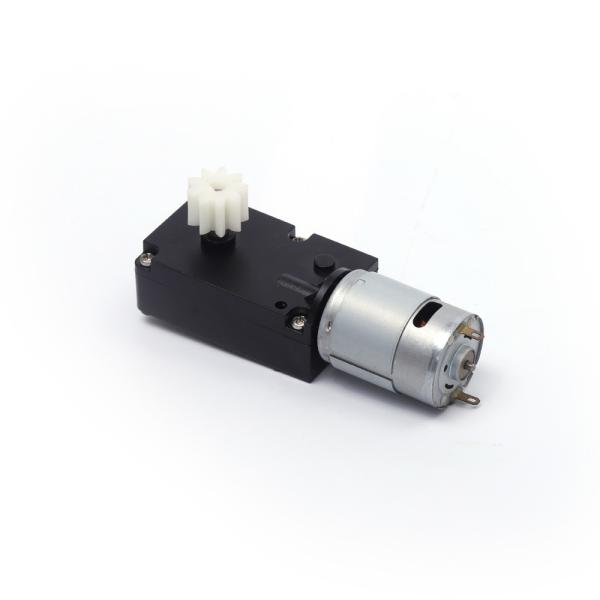

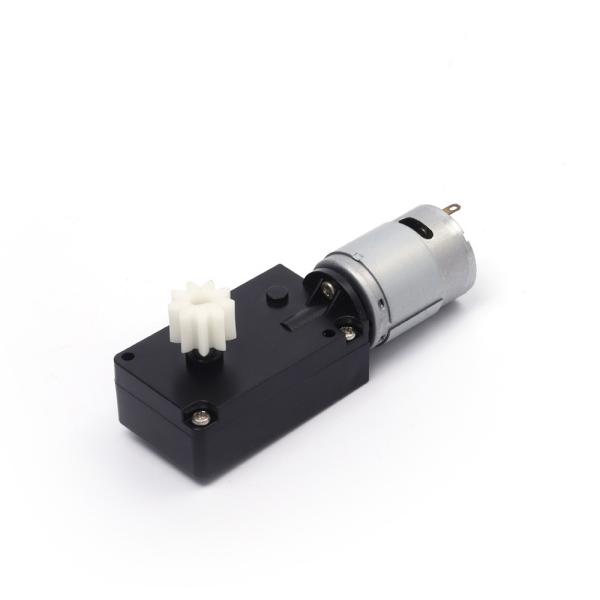

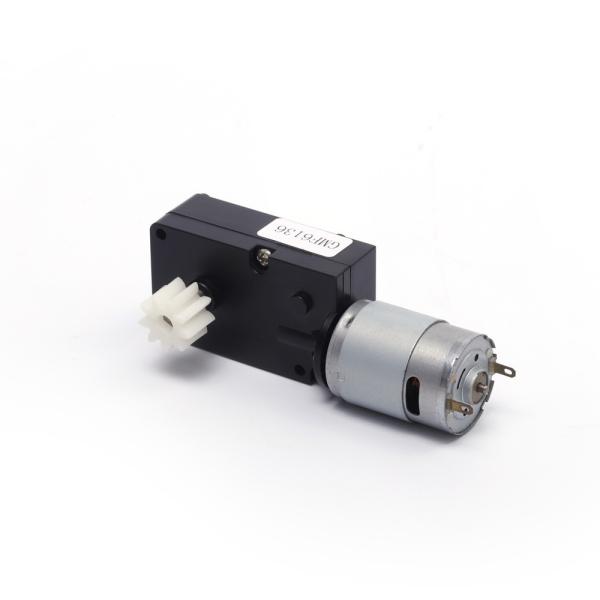

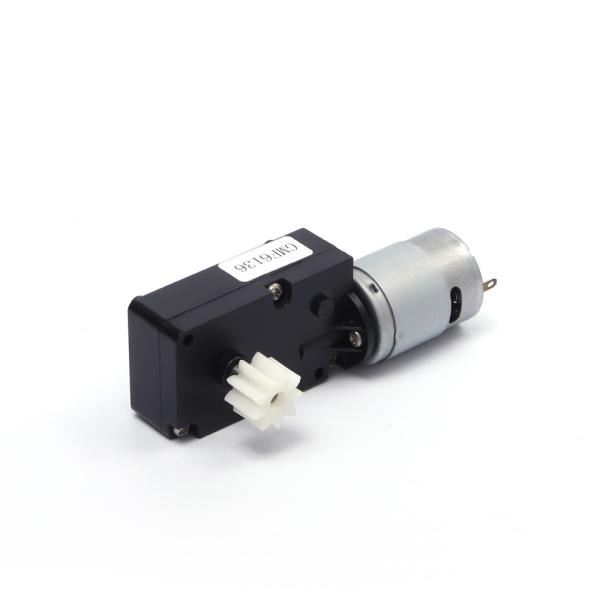

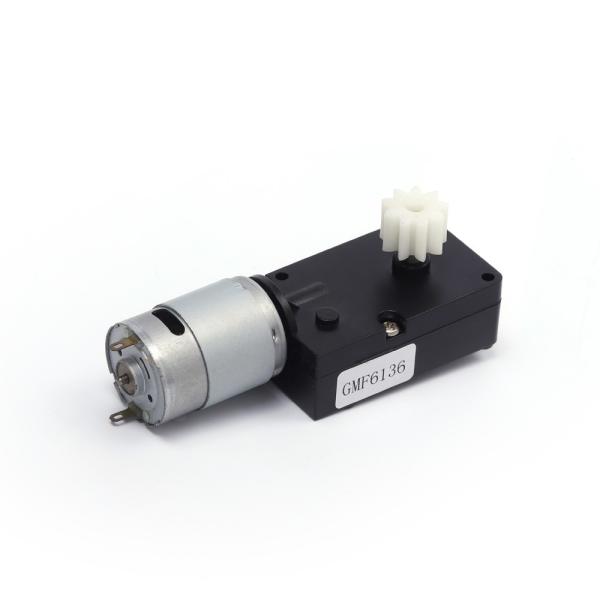

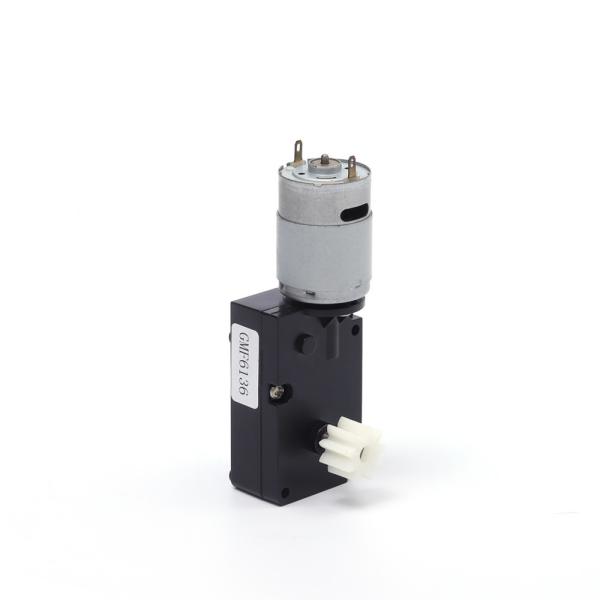

DC GEAR MOTOR GMF6136

Products' type: DC geared motor

Weight 112g DC Gear Motor 100RPM 24 Volt Dc Geared Motor GMF6136
Model: GMF6136
Sort: Square shape DC geared motor
Typical applications: Valve,coffee machine, coin machine,communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…
Weight 112g (approx)

MODEL VOLTAGE AT NO LOAD AT MAXIMUM EFFICIENCY AT STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC RPM A RPM A mN.m kg.cm mN.m kg.cm A
GMF6136-385 24 100 0.1 83 0.49 470.4 4.800 2744 28.000 2.4
Base motor option RS360,RS365,RS380,RS385,RS390,RS395,RF370
Gear ratio option 79
Note The specifications and output shaft can be changed as customer's request.
Packing detail Carton, Size: 52X36X36CM;100pcs/carton; G.W:14Kg.
