6VDC 12VDC 24VDC 370 Or 365 Dc Motor Round Shape 90g GM25
6VDC 12VDC 24VDC 370 Or 365 Dc Motor Round Shape 90g GM25
6VDC 12VDC 24VDC 370 Or 365 Dc Motor Round Shape 90g GM25
6VDC 12VDC 24VDC 370 Or 365 Dc Motor Round Shape 90g GM25
6VDC 12VDC 24VDC 370 Or 365 Dc Motor Round Shape 90g GM25
6VDC 12VDC 24VDC 370 Or 365 Dc Motor Round Shape 90g GM25
6VDC 12VDC 24VDC 370 Or 365 Dc Motor Round Shape 90g GM25
6VDC 12VDC 24VDC 370 Or 365 Dc Motor Round Shape 90g GM25
6VDC 12VDC 24VDC 370 Or 365 Dc Motor Round Shape 90g GM25
6VDC 12VDC 24VDC 370 Or 365 Dc Motor Round Shape 90g GM25
Specifications
voltage :
6VDC,12VDC,24VDC
Direction of rotation :
CW, CCW
Motor type :
370 or 365 dc motor
Shaft :
Customizable
Model Number :
GM25
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100,000 units per month
Delivery Time :
30work days
Packaging Details :
Carton with pallet
Brand Name :
lino
Certification :
rohs
Description

DC GEAR MOTOR GM25

Products' type: DC geared motor

6VDC 12VDC 24VDC 370 Or 365 Dc Motor Round Shape 90g GM25
Model: GM25
Sort: Round shape DC geared motor
Typical applications: Electronic lock, optical equipment, medical instrumentation, office machines, Stereo Equipment,household appliances, Video game etc...
Weight 90g (approx)

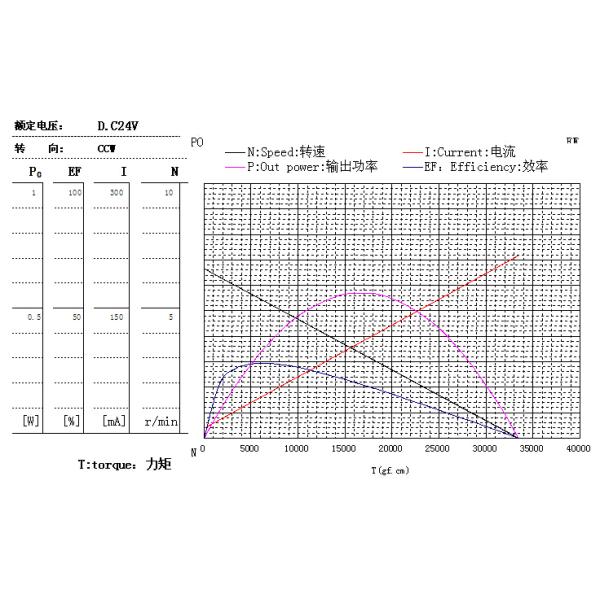

MODEL VOLTAGE AT NO LOAD AT MAXIMUM EFFICIENCY AT STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC RPM A RPM A mN.m kg.cm mN.m kg.cm A
GM25653-370 24 6.6 0.011 5.4 0.049 603.876 6.162 3273.2 33.400 0.215
Base motor option RC280,RF330,RF370
Gear ratio option 9.7,12.7,16.6,21.3,27.9(L=19), 36.5,46.9,61.3(L=21), 80.3,103.1,134.9(L=23), 176.7,226.8,296.8(L=25), 388.7,498.9,653(L=27)
Note The specifications and output shaft can be changed as customer's request.
Packing detail Carton

6VDC 12VDC 24VDC 370 Or 365 Dc Motor Round Shape 90g GM25

6VDC 12VDC 24VDC 370 Or 365 Dc Motor Round Shape 90g GM25
