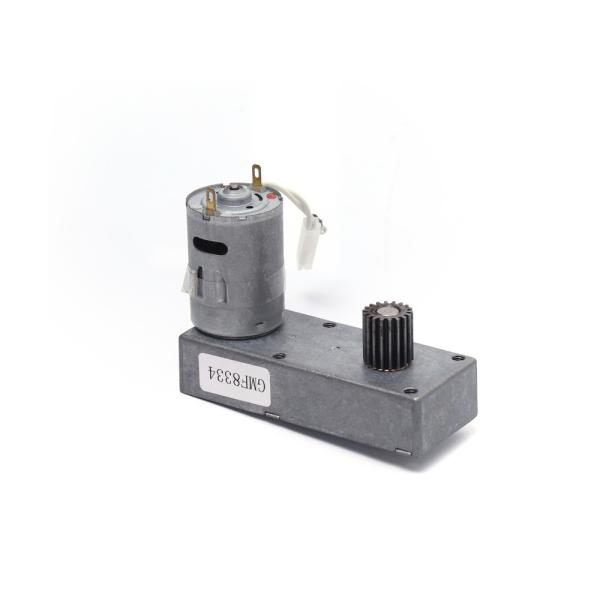

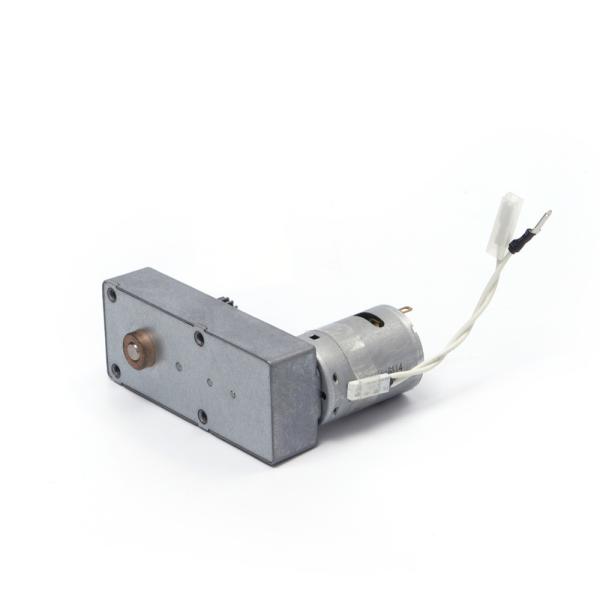

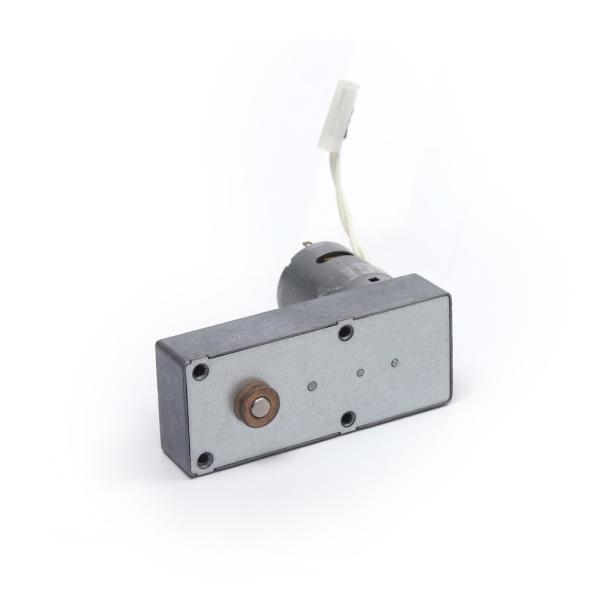

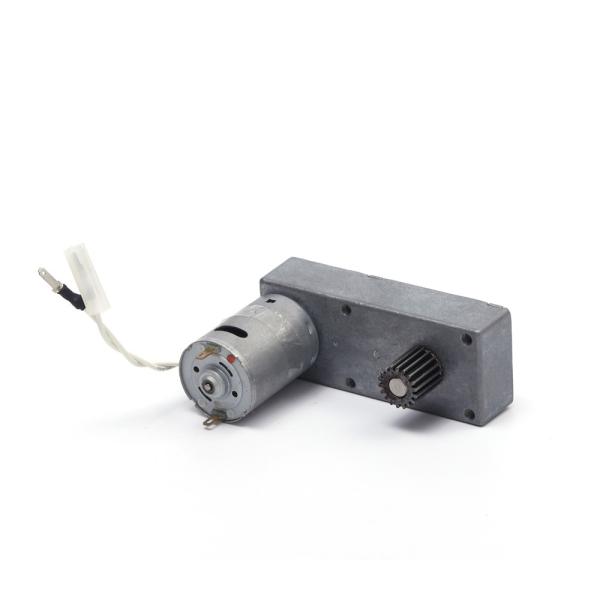

RS365 RS385 DC Gear Motor Customizable Shaft GMF8334
RS365 RS385 DC Gear Motor Customizable Shaft GMF8334
RS365 RS385 DC Gear Motor Customizable Shaft GMF8334
RS365 RS385 DC Gear Motor Customizable Shaft GMF8334
RS365 RS385 DC Gear Motor Customizable Shaft GMF8334
RS365 RS385 DC Gear Motor Customizable Shaft GMF8334
RS365 RS385 DC Gear Motor Customizable Shaft GMF8334
RS365 RS385 DC Gear Motor Customizable Shaft GMF8334
Specifications
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
The price ranges from 10 to 50 yuan per unit. The specific model requirements vary
Packaging Details :
Carton with pallet
Delivery Time :
30work days
Payment Terms :
T/T
Supply Ability :
100,000 units per month
Model Number :
GMF8334
Brand Name :
LINO
Certification :
ROHS
Voltage range :
6VDC,12VDC,24VDC
Direction of rotation :
CW, CCW
Motor type :
RS365,RS385
Shaft :
Customizable
Description

DC GEAR MOTOR GMF8334

Products' type: DC geared motor

RS365 RS385 DC Gear Motor Customizable Shaft GMF8334
Model: GMF8334
Sort: Square shape DC geared motor
Typical applications: Valve,coffee machine, coin machine,communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…
Weight 240g (approx)

MODEL VOLTAGE AT NO LOAD AT MAXIMUM EFFICIENCY AT STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC RPM A RPM A mN.m kg.cm mN.m kg.cm A
GMF8334103.5-385 24 102 0.15 84 0.65 784 8.000 4606 47.000 2.9
Base motor option 365,385,395
Gear ratio option 103.5
Note The specifications and output shaft can be changed as customer's request.
Packing detail Carton, Size: 52X36X36CM;100pcs/carton; G.W:26.6Kg.

RS365 RS385 DC Gear Motor Customizable Shaft GMF8334

RS365 RS385 DC Gear Motor Customizable Shaft GMF8334
