LINO AC Gear Motor 150g PM Synchronous Motor 230V GM48PSMS48
LINO AC Gear Motor 150g PM Synchronous Motor 230V GM48PSMS48
LINO AC Gear Motor 150g PM Synchronous Motor 230V GM48PSMS48
LINO AC Gear Motor 150g PM Synchronous Motor 230V GM48PSMS48
LINO AC Gear Motor 150g PM Synchronous Motor 230V GM48PSMS48
LINO AC Gear Motor 150g PM Synchronous Motor 230V GM48PSMS48
LINO AC Gear Motor 150g PM Synchronous Motor 230V GM48PSMS48
LINO AC Gear Motor 150g PM Synchronous Motor 230V GM48PSMS48
LINO AC Gear Motor 150g PM Synchronous Motor 230V GM48PSMS48
LINO AC Gear Motor 150g PM Synchronous Motor 230V GM48PSMS48
Specifications
Brand Name :
LINO
Model Number :
GM48PSMS48
Certification :
ROHS,CE
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
The price ranges from 28 to 40 RMB per unit. The specific model requirements vary
Payment Terms :
T/T
Supply Ability :
10,0000 units per month
Delivery Time :
30work days
Packaging Details :
Carton with pallet
Input :
<3W
Voltage range :
from 12VAC to 230VAC
Direction of rotation :
CW, CCW, FREE
Motor type :
PM synchronous motor
Noise :
<55dB
Shaft :
Customizable
Description

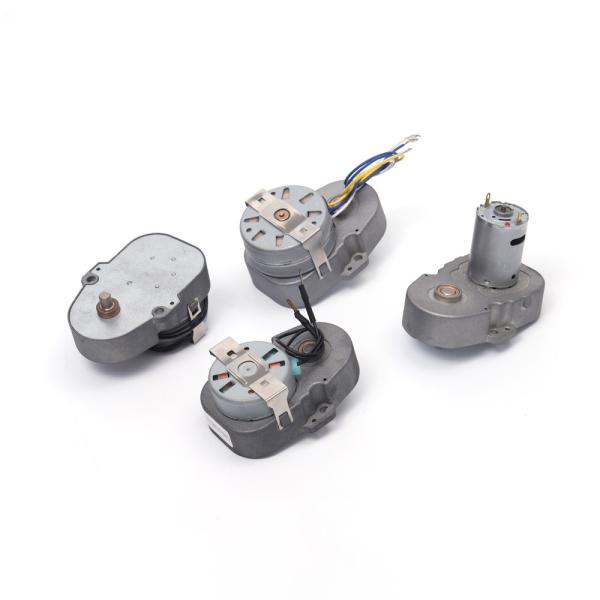

AC gear motor GM48PSMS48

Products' type: AC geared motor

LINO AC Gear Motor 150g PM Synchronous Motor 230V GM48PSMS48
Model: GM48PSMS48500
Sort: Pear shape AC synchronous geared motor
Typical applications: Valve,coffee machine, communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…
Weight 150g (approx)

Specifications UNIT GM48PSMS48500
Voltage VAC 24; 110; 230
Frequency Hz 50/60
Input W <=3W
Current A 0.012(230V)
Standard gear ratio

a:12.5, 15,25,41.7(125/3),83.3(244/3),164.2, 246.3, 308, 450,985,1846.875(max load:8kg.cm);

b: 34.6, 128.6, 400, 500, 600, 750, 2400,4500 (max load:15kg.cm)
Speed RPM 0.666666667 0.83 1.25 3.04 6 12 33.3
Torque Kg.cm 30 25 18 8 4 2 0.7
Noise dB <=60
Dielectric strength AC1800V / 1 SEC
Direction of rotation CW；CCW； CW/CCW(FREE)
Note Voltage and output shaft can be changed as customer's request.
Packing detail Carton, Size: 52X36X36CM; 100pcs/carton; G.W:18Kg.

LINO AC Gear Motor 150g PM Synchronous Motor 230V GM48PSMS48
