Specifications
Brand Name :
LINO
Model Number :
GM58
Certification :
ROHS
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
The price ranges from 30 to 50 RMB per unit. The specific model requirements vary
Payment Terms :
T/T
Supply Ability :
100,000 units per month
Delivery Time :
30work days
Packaging Details :
Carton with pallet
Voltage range :
6VDC,12VDC,24VDC
Direction of rotation :
CW, CCW
Motor :
RS365,RS385,RS395
Shaft :
Customizable, Rear shaft is available
Description

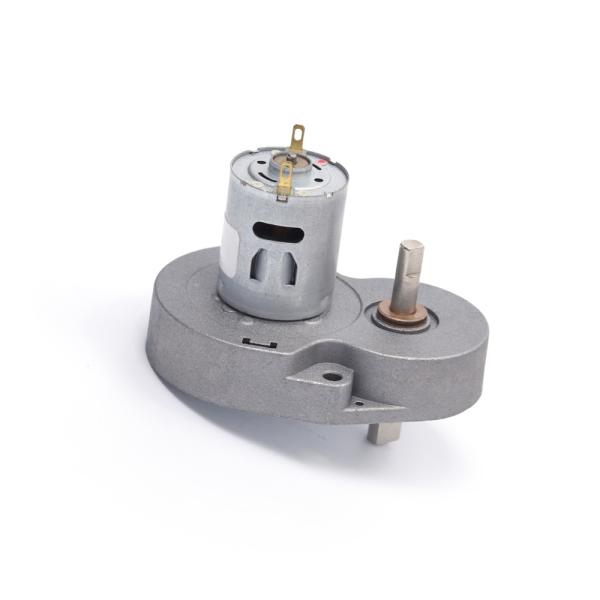

DC GEAR MOTOR GM58

Products' type: DC geared motor

RS365 RS395 Rs 385 Dc Motor 6VDC 12VDC 24VDC 15.8RPM GM58
Model: GM58
Sort: Pear shape DC geared motor
Typical applications: Valve,coffee machine, coin machine,communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…
Weight 250g (approx)

MODEL VOLTAGE AT NO LOAD AT MAXIMUM EFFICIENCY AT STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC RPM A RPM A mN.m kg.cm mN.m kg.cm A
GM58499-360 24 15.8 0.1 13.1 0.275 1911 19.500 11172 114.000 1.12
Base motor option RS360,RS365,RS380,RS385,RS390,RS395,RF500,RF520
Gear ratio option 195.5, 499,844,1036.5,2073, 2850
Note The specifications and output shaft can be changed as customer's request.
Packing detail Carton, Size: 52X36X36CM;100pcs/carton; G.W:28Kg.
