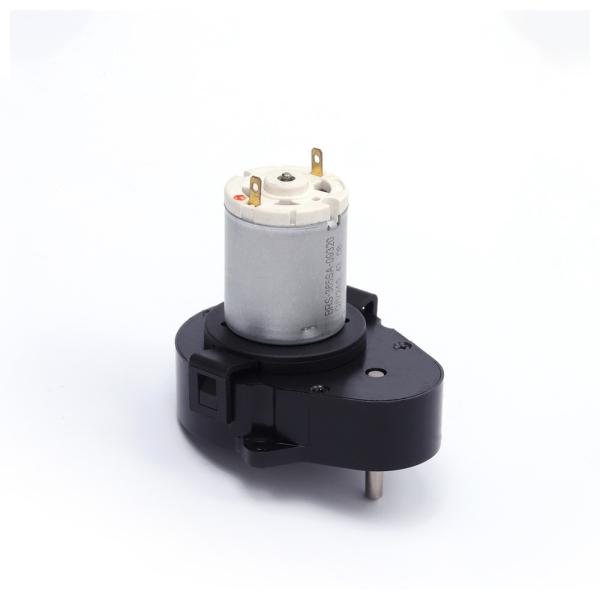

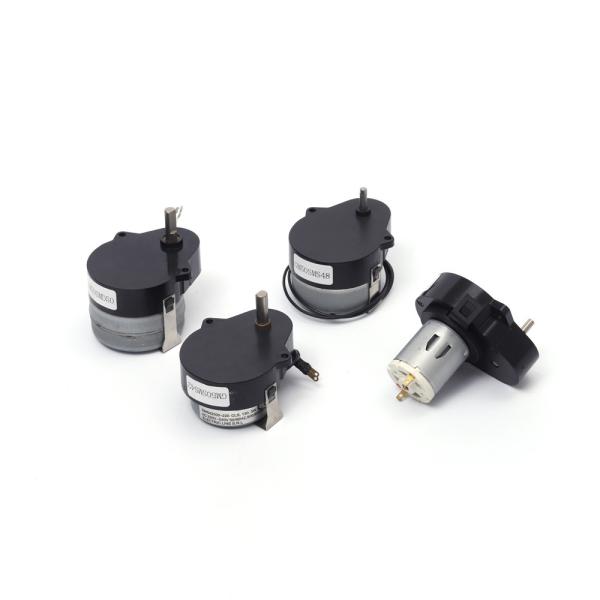

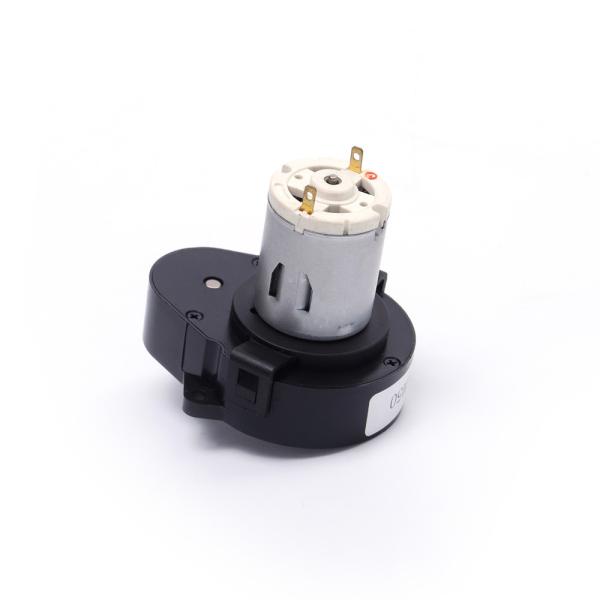

24V DC Pear Shape Gear Motor with One Way Clutch GM50
24V DC Pear Shape Gear Motor with One Way Clutch GM50
24V DC Pear Shape Gear Motor with One Way Clutch GM50
24V DC Pear Shape Gear Motor with One Way Clutch GM50
24V DC Pear Shape Gear Motor with One Way Clutch GM50
24V DC Pear Shape Gear Motor with One Way Clutch GM50
24V DC Pear Shape Gear Motor with One Way Clutch GM50
24V DC Pear Shape Gear Motor with One Way Clutch GM50
Specifications
Brand Name :
LINO
Model Number :
GM50
Certification :
ROHS
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
The price ranges from 15to 30 rmb per unit. The specific model requirements vary
Payment Terms :
T/T
Supply Ability :
100,000 units per month
Delivery Time :
30work days
Packaging Details :
Carton with pallet
Voltage range :
6VDC,12VDC,24VDC
Direction of rotation :
CW, CCW
Motor :
RS365,RS385,RS395,RF500,RF520
Shaft :
Customizable
Clutch :
CW,CCW or two way clutch is available
gear ratio :
from 6.25 to 694444.4
Description

5202DC GEAR MOTOR GM50

Products' type: DC geared motor

24V DC Pear Shape Gear Motor with One Way Clutch GM50
Model: GM50
Sort: Pear shape DC geared motor
Typical applications: Coffee machine, communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…
Weight 85g (approx)

MODEL VOLTAGE AT NO LOAD AT MAXIMUM EFFICIENCY AT STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC RPM A RPM A mN.m kg.cm mN.m kg.cm A
GM50600-360 24 11.5 0.095 9.4 0.22 1842.4 18.800 10094 103.000 0.78
Base motor option RS360,RS365,RF370,RS380,RS385,RS390,RS395,RF500,RF520,RF500
Gear ratio option

a: 6.25,7.5, 8.33, 11.25, 12.5, 14.1, 15, 17.6, 20, 25, 30, 33.3, 37.5, 41.6, 45, 50,56.25, 60, 62.5, 66.6, 75, 83.3, 84.375, 90, 93.75, 100, 112.5, 120, 125, 133.33, 135, 150, 166.6, 168.75, 180, 187.5, 200, 208.3, 225, 240, 250, 266.67, 270, 281.25, 300, 312.5, 333.3, 337.5, 360, 375, 400, 405, 416.6, 421.875, 450, 468.75, 500, 506.25, 540, 562.5, 600, 625, 666.67, 675, 703.125, 750, 833.3, 843.75, 900, 937.5, 1000, 1041.6, 1125, 1250, 1406.25, 1500, 1562.5, 1666.6, 1875, 2083.3, 2343.75, 2500, 3125)

b:(500, 666.67, 694.4, 833.333, 925.925, 1111.1, 1125, 1234.57, 1388.9, 1500, 1851.85, 2000, 2083.3, 2250, 2314.8, 2500, 2666.67, 2777.78, 3000, 3086.4, 3125, 3333.3, 3703.7, 3750, 4000, 4166.67, 4444.4, 4500, 4938.27, 5000, 5208.3, 5555.556, 6000, 6250, 6666.67, 6750, 6944.4, 7407.4, 7500, 8000, 8333.3, 9000, 9259.26, 10000, 10125, 10416.67, 10666.67, 11111.1, 11250, 12000, 12345.68, 12500, 13333.3, 13500, 13888.89, 15000, 16000, 16666.67, 16875, 17361.1, 17777.78, 18000, 18518.5, 18750, 20000, 20250, 20833.3, 22500, 23148.15, 24000, 25000, 26666.67, 27000, 27777.78, 28125, 30000, 30864.2, 33333.3, 33750, 34722.2, 36000, 37500, 40000, 40500, 44444.4, 45000, 46296.3, 46875, 50000, 54000, 56250, 57870.37, 60000, 62500, 66666.67, 67500, 75000, 77160.5, 83333.3, 90000, 93750, 100000, 111111.1, 112500, 125000, 150000, 156250, 166666.67, 187500, 208333.3, 250000, 277777.78, 312500, 416666.67, 520833.3, 694444.4)
Note The specifications and output shaft can be changed as customer's request.
Packing detail Carton, Size: 38X35.5X34CM;100pcs/carton; G.W:11Kg.
