LINO Square Geared Dc Motor N20 N30 3VDC 6VDC 12VDC GMF12 For Electronic Lock Vedio Game
LINO Square Geared Dc Motor N20 N30 3VDC 6VDC 12VDC GMF12 For Electronic Lock Vedio Game
LINO Square Geared Dc Motor N20 N30 3VDC 6VDC 12VDC GMF12 For Electronic Lock Vedio Game
LINO Square Geared Dc Motor N20 N30 3VDC 6VDC 12VDC GMF12 For Electronic Lock Vedio Game
Specifications
Brand Name :
LINO
Model Number :
GMF12
Certification :
ROHS
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
The price ranges from 15 to 20 RMB per unit. The specific model requirements vary
Payment Terms :
T/T
Supply Ability :
100,000 units per month
Delivery Time :
30work days
Packaging Details :
Carton with pallet
Voltage range :
3VDC,6VDC,12VDC
Direction of rotation :
CW, CCW
Motor :
N20,N30
Shaft :
Customizable
Description

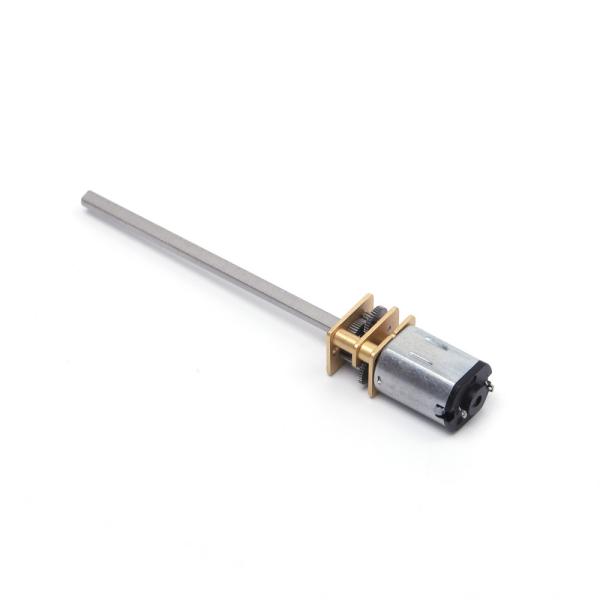

DC GEAR MOTOR GMF12

Products' type: DC geared motor

LINO Square Geared Dc Motor N20 N30 3VDC 6VDC 12VDC GMF12 For Electronic Lock Vedio Game
Model: GMF12
Sort: Square shape DC geared motor
Typical applications: Electronic lock, optical equipment, medical instrumentation, office equipment, Stereo Equipment,household appliances, Vedio Game
Weight 10g (approx)

MODEL VOLTAGE AT NO LOAD AT MAXIMUM EFFICIENCY AT STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC RPM A RPM A mN.m kg.cm mN.m kg.cm A
GMF12298N2009170 4.5 53 0.05 41.87 0.169 41.944 0.428 199.724 2.038 0.63
Base motor option N20,N30
Gear ratio option 5,10,15,30,35,50,75,100,150,210,256,298,380,429(L= 9mm)
Note The specifications and output shaft can be changed as customer's request.
Packing detail Carton, Size: 31X24X31CM;800pcs/carton; G.W:11.5Kg.
