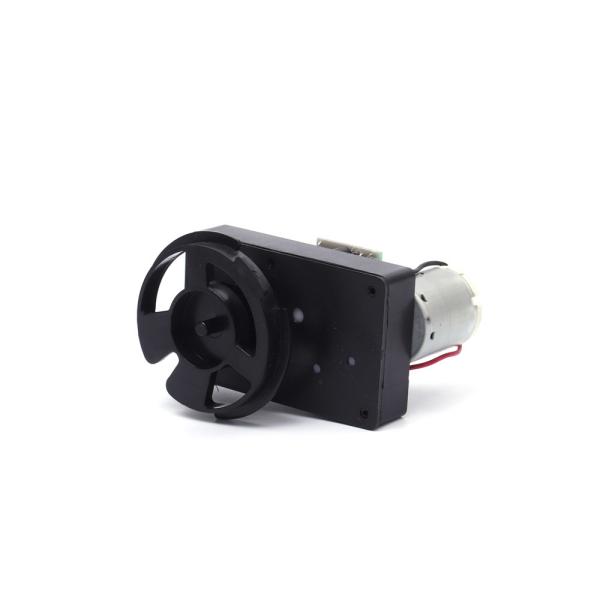

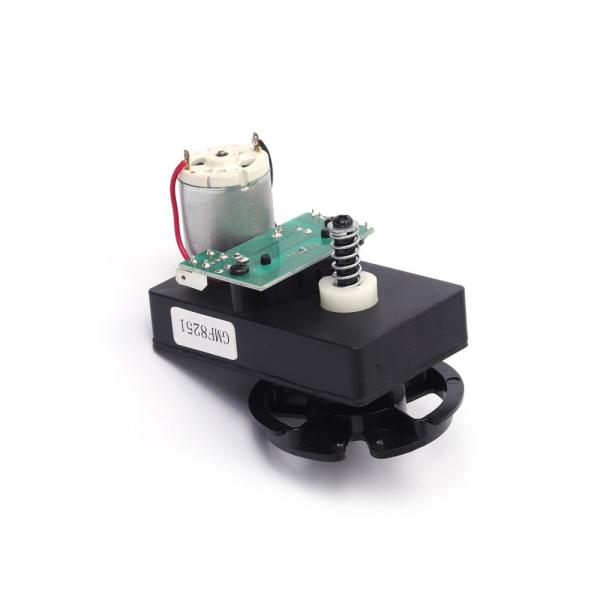

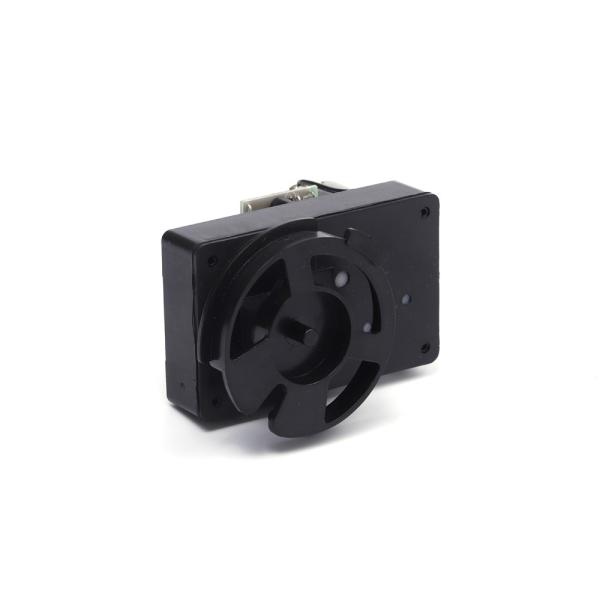

RS365 BLDC Square Gear Motor GMF8251 With Switch Type Or Hall Type PCB
RS365 BLDC Square Gear Motor GMF8251 With Switch Type Or Hall Type PCB
RS365 BLDC Square Gear Motor GMF8251 With Switch Type Or Hall Type PCB
RS365 BLDC Square Gear Motor GMF8251 With Switch Type Or Hall Type PCB
RS365 BLDC Square Gear Motor GMF8251 With Switch Type Or Hall Type PCB
RS365 BLDC Square Gear Motor GMF8251 With Switch Type Or Hall Type PCB
Specifications
Brand Name :
LINO
Model Number :
GMF8251
Certification :
ROHS
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
The price ranges from 15 to 30 rmb per unit. The specific model requirements vary
Payment Terms :
T/T
Supply Ability :
100,000 units per month
Delivery Time :
30work days
Packaging Details :
Carton with pallet
Voltage :
12VDC,24VDC
Motor :
RS365,BLDC
PCB :
switch type or Hall type
typical application :
vending machine
Description

DC GEAR MOTOR GMF8251

Products' type: DC geared motor

RS365 BLDC Square Gear Motor GMF8251 With Switch Type Or Hall Type PCB
Model: GMF8251
Sort: Square shape DC geared motor
Typical applications: vending machine,coffee machine,communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…
Weight 118g (approx)

MODEL VOLTAGE AT NO LOAD AT MAXIMUM EFFICIENCY AT STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC RPM A RPM A mN.m kg.cm mN.m kg.cm A
GMF8251-365 24 24 0.11 19 0.29 1519 15.500 8232 84.000 1.17
Base motor option RS360,RS365,RS380,RS385,RS390,RS395
Gear ratio option 419
Note The specifications and output shaft can be changed as customer's request.
Packing detail Carton, Size: 52X36X36CM;100pcs/carton; G.W:14Kg.

RS365 BLDC Square Gear Motor GMF8251 With Switch Type Or Hall Type PCB

RS365 BLDC Square Gear Motor GMF8251 With Switch Type Or Hall Type PCB
