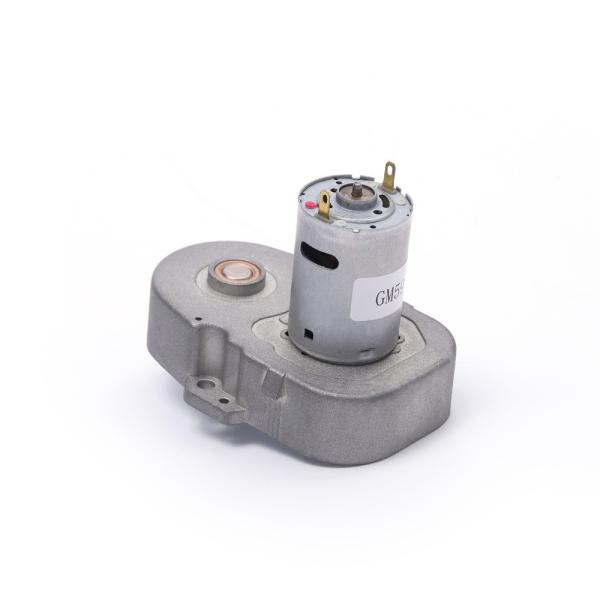

GM59 Pear Shape DC Geared Motor 257g For Coin Machine / ACU-RITE
GM59 Pear Shape DC Geared Motor 257g For Coin Machine / ACU-RITE
GM59 Pear Shape DC Geared Motor 257g For Coin Machine / ACU-RITE
GM59 Pear Shape DC Geared Motor 257g For Coin Machine / ACU-RITE
GM59 Pear Shape DC Geared Motor 257g For Coin Machine / ACU-RITE
GM59 Pear Shape DC Geared Motor 257g For Coin Machine / ACU-RITE
GM59 Pear Shape DC Geared Motor 257g For Coin Machine / ACU-RITE
GM59 Pear Shape DC Geared Motor 257g For Coin Machine / ACU-RITE
GM59 Pear Shape DC Geared Motor 257g For Coin Machine / ACU-RITE
GM59 Pear Shape DC Geared Motor 257g For Coin Machine / ACU-RITE
Specifications
Brand Name :
LINO
Model Number :
GM59
Certification :
ROHS
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
The price ranges from 30 to 50 RMB per unit. The specific model requirements vary
Payment Terms :
T/T
Supply Ability :
100,000 units per month
Delivery Time :
30work days
Packaging Details :
Carton with pallet
Voltage range :
6VDC,12VDC,24VDC
Direction of rotation :
CW, CCW
Motor :
RS365,RS385,RF500,RF520
Shaft :
Customizable
Description

DC GEAR MOTOR GM59

Products' type: DC geared motor

GM59 Pear Shape DC Geared Motor 257g For Coin Machine / ACU-RITE
Model: GM59
Sort: Pear shape DC geared motor
Typical applications: Valve,coffee machine, coin machine,communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…
Weight 257g (approx)

MODEL VOLTAGE AT NO LOAD AT MAXIMUM EFFICIENCY AT STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC RPM A RPM A mN.m kg.cm mN.m kg.cm A
GM59625-360 24 10.7 0.07 8.25 0.235 2156 22.000 9408 96.000 0.8
Base motor option RS360,RS365,RS380,RS385,RS390,RS395,RF500,RF520
Gear ratio option

A:104.17,138.9,140.625,156.25,187.5,208.3,210.9,250,277.8,281.25,312.5,333.3,351.6,375,416.7,421.875,468.75,500,520.8,562.5,625,694.4,

703.125,750,833.3,843.75,937.5,1125,1171.875,1250,1406.25,1562.5,1875,2083.3,2343.75,3125,3906.25,5208.3

B:2373,3164,4218.75,4746,5625,6328.125,7500,7910,8437.5,9492,10000,10546.875,11250,12656.25,13333.3,14062.5,15000,15820,16875,18750,

18984.375,20000,21093.75,22500,25000,25312.5,26367,28125,30000,31640.625,33333.3,33750,35156.25,37500,37968.75,42187.5,45000,46875,

50000,50625,52734.375,56250,62500,63281.25,67500,70312.5,75000,75937.5,83333.3,84375,87890.625,93750,101250,105468.75,112500,117187.5,

125000,126562.5,140625,156250,168750,175781.25,187500,208333.3,210937.5,234375,281250,292968.75,312500,351562.5,390625,468750,520833.3,

585937.5,781250,976562.5,1302083.3

C:31.25 , 34.72, 52.08, 11.25, 12.5, 15 , 18.75 , 20
Note The specifications and output shaft can be changed as customer's request.
Packing detail Carton, Size: 52X36X36CM;100pcs/carton; G.W:29Kg.
