Industrial Control Cable with Copper Conductor PVC Sheath and Silicone Rubber Insulation for Power Signal Control
Industrial Control Cable with Copper Conductor PVC Sheath and Silicone Rubber Insulation for Power Signal Control
Industrial Control Cable with Copper Conductor PVC Sheath and Silicone Rubber Insulation for Power Signal Control
Industrial Control Cable with Copper Conductor PVC Sheath and Silicone Rubber Insulation for Power Signal Control
Industrial Control Cable with Copper Conductor PVC Sheath and Silicone Rubber Insulation for Power Signal Control
Industrial Control Cable with Copper Conductor PVC Sheath and Silicone Rubber Insulation for Power Signal Control
Industrial Control Cable with Copper Conductor PVC Sheath and Silicone Rubber Insulation for Power Signal Control
Industrial Control Cable with Copper Conductor PVC Sheath and Silicone Rubber Insulation for Power Signal Control
Industrial Control Cable with Copper Conductor PVC Sheath and Silicone Rubber Insulation for Power Signal Control
Industrial Control Cable with Copper Conductor PVC Sheath and Silicone Rubber Insulation for Power Signal Control
Industrial Control Cable with Copper Conductor PVC Sheath and Silicone Rubber Insulation for Power Signal Control
Industrial Control Cable with Copper Conductor PVC Sheath and Silicone Rubber Insulation for Power Signal Control
Specifications
Certification :
3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949
Place of Origin :
Guangdong, China
Brand Name :
Linke
MOQ :
1000 m
Price :
Negotiable
Packaging Details :
According to requirement
Delivery Time :
7-15 days
Payment Terms :
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability :
50000m/day
Model NO. :
Industrial Cable
Conductor Material :
Copper
Sheath Material :
PVC
Insulation Material :
Silicone Rubber
Material Shape :
Round Wire
Range of Application :
Flame Retardant
Name :
Industrial Cable
Conductor :
Tinned Copper
Filler :
Optional
Type :
Insulated
Conductor Type :
Twisted wire
Application :
Overhead, Heating, Underground, Industrial
Samples :
US$ 1000/meter 1 meter(Min.Order) |
Customization :
Available
Shipping Cost :
about shipping cost and estimated delivery time.
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Core :
Multiple
conductor material :
copper/Tinned Copper
Exterior material :
customize：PVC、PE、LSFOH、silicone rubber
insulating materials :
customize:PVC、PE 、XLPE、EPR、SIR
specifications :
0.1-450mm²
rated voltage :
300-600V
rated temperature :
-60± 200℃
package :
By roll
Lead Time :
7-15days
Description
Industrial Control Cable with Copper Conductor PVC Sheath and Silicone Rubber Insulation for Power Signal Control

Product Description
Conductor Bare copper
4 Twisted Pair 8C
AWG 26
Construction (±0.01MM) 7/0.16
Stranded Dia. (MM) 0.152
Insulation HD-PE
Nom.Thickness (±0.02MM) 0.18
Insulation Dia. ( ±0.05) 1.01
Sepaiaior /
Shield/Braid AL/AL-Mg
Overlap (%) 25%
Darin wire 7/0.12
Jacket pvc
Nom.Thickness (±0.05MM) 0.55
Outer Dia. ( ±0.2MM) 6.0

Industrial Control Cable with Copper Conductor PVC Sheath and Silicone Rubber Insulation for Power Signal Control

Industrial Control Cable with Copper Conductor PVC Sheath and Silicone Rubber Insulation for Power Signal Control

Industrial Control Cable with Copper Conductor PVC Sheath and Silicone Rubber Insulation for Power Signal Control
Certifications

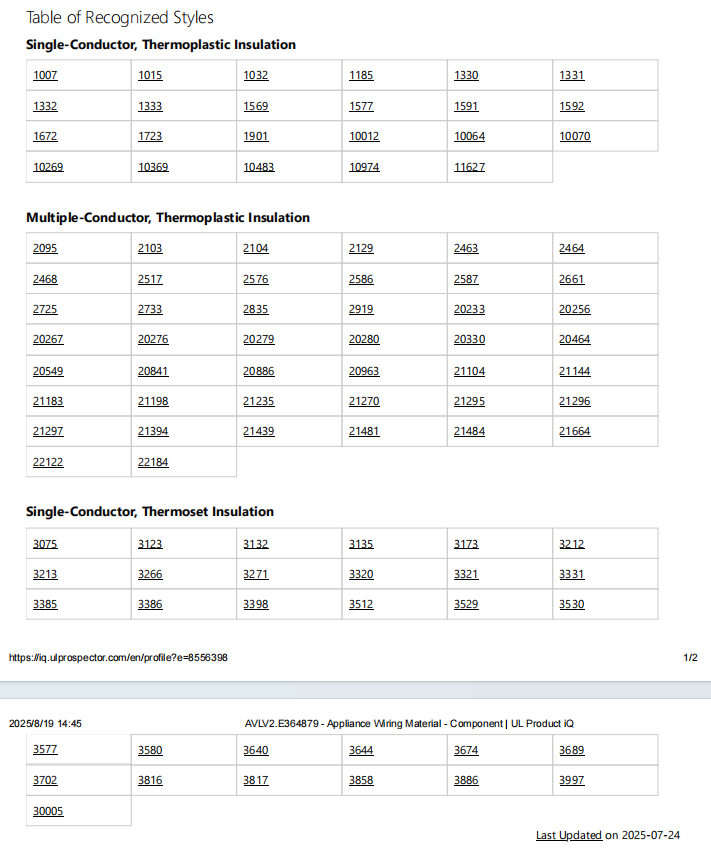

We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269

(Single conductor,thermoplastic insulation)

UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664

ISO9001 and ISO13485,TS16949

CNR- Appliance Wiring Material,

Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.

Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.

Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

4. Can I get a discount?

It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?

Yes, could print your company name, we even custom the quality card to promote your company.

For More Information, Please do feel free to contact us!
