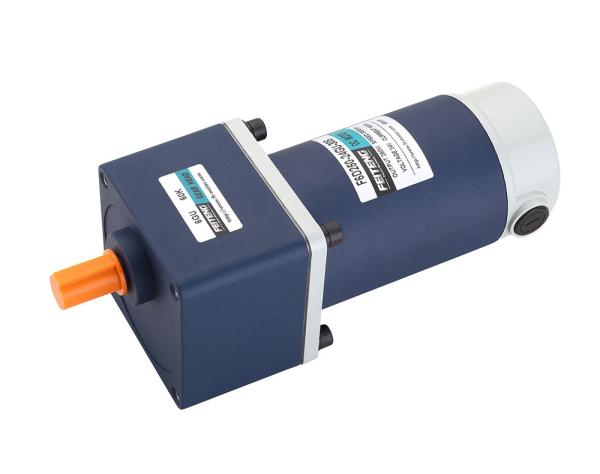

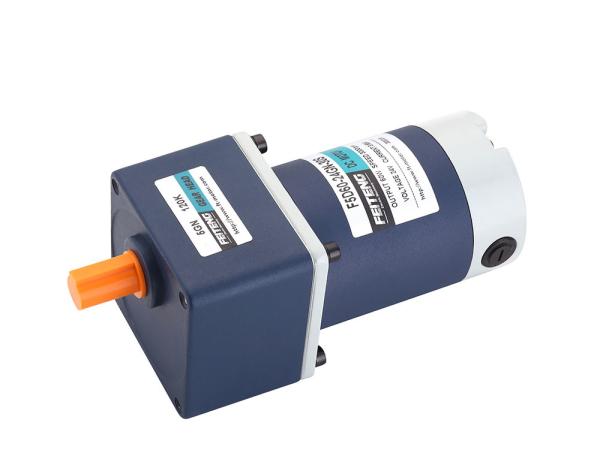

F5D90 90mm 24 Volt DC Gear Motor 90w , Brush Gear Motor DC 12v 90v
F5D90 90mm 24 Volt DC Gear Motor 90w , Brush Gear Motor DC 12v 90v
F5D90 90mm 24 Volt DC Gear Motor 90w , Brush Gear Motor DC 12v 90v
F5D90 90mm 24 Volt DC Gear Motor 90w , Brush Gear Motor DC 12v 90v
F5D90 90mm 24 Volt DC Gear Motor 90w , Brush Gear Motor DC 12v 90v
F5D90 90mm 24 Volt DC Gear Motor 90w , Brush Gear Motor DC 12v 90v
F5D90 90mm 24 Volt DC Gear Motor 90w , Brush Gear Motor DC 12v 90v
F5D90 90mm 24 Volt DC Gear Motor 90w , Brush Gear Motor DC 12v 90v
Specifications
Brand Name :
CHE
Model Number :
F5D90 Series
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, D/P, Western Union, MoneyGram
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Voltage :
12v, 24v, 48v, 90v
Power :
6w 10w 15w 25w 40w 60w 90w 120w 20w 250w
Size :
60mm, 70mm, 80mm, 90mm, 104mm
Rated Speed :
1800rpm 3000rpm
Brush Life :
2000 hours
Gear Ratio :
3/ 3.6/ 5/ 7.5/ 10/ 12.5/ 15/ 18/ 20/ 25/ 30......../ 200
OEM & ODM Service :
Available
Efficiency :
Ie 3
Description

F5D90 90mm 24 Volt DC Gear Motor 90w, Brush Gear Motor DC 12v 90v

F5D90 90mm 24 Volt DC Gear Motor 90w , Brush Gear Motor DC 12v 90v

A brush motor is a permanent type brush DC motor. A brush motor can also be called a "brushed motor", "permanent-magnet field type commutator motor", "governorless motor", or "permanent-magnet DC motor". These motors are most commonly used for models, automobile auxiliary devices, and other applications all over the world. If you have any questions regarding the requirement of controllers to use, please contact our engineering team.

Motor Parameters:

Model Voltage Power No-load Parameter Load Parameter Brush lLife Motor Weight
Speed Current Speed Torque Current
V W r/min A r/min mN.m A H kg
F5D90-12 12 90 3400 1.7 3000 286 10.2 2000 2.2
F5D90-24 24 90 3350 0.9 3000 286 5.2 2000 2.2
F5D90-90 90 90 3300 0.35 3000 286 1.4 2000 2.2
F5D90-12 12 90 2200 1.1 1800 477 10.2 2000 2.2
F5D90-24 24 90 2150 0.7 1800 477 5.2 2000 2.2
F5D90-90 90 90 2100 0.3 1800 477 1.4 2000 2.2

  • Motor voltage, power and speed will be customized according to your requirements under allowed circumstance.
  • For external brush motor, customer can replace the brush directly. For internal ones, we need to disaaembly the motor first. F6D series motor is external motor

Gear Ratio Performance:

Model Gear Ratio 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
F5D90-24-30S Speed (r/min) 999 833 600 500 400 333 300 240 200 166 150 120 100 83 75 60 50 40 33 30 25 20 16.5 15
Torque (N.m) 0.69 0.83 1.16 1.39 1.74 2.09 2.09 2.61 3.13 3.75 3.75 4.69 5.63 6.76 7.51 9.38 11.25 14.07 15.2 16.89 20 20 20 20
F5D90-24-18S Speed (r/min) 600 500 360 300 240 200 180 144 120 100 90 72 60 50 45 36 30 24 20 18 15 12 10 9
Torque (N.m) 1.16 1.39 1.93 2.32 3.48 3.86 4.35 5.22 6.26 6.95 7.82 9.39 11.27 12.52 15.65 18.78 20 20 20 20 20 20 20 20

90w 90mm Brush DC Gear Motor Drawings:

F5D90 90mm 24 Volt DC Gear Motor 90w , Brush Gear Motor DC 12v 90v
