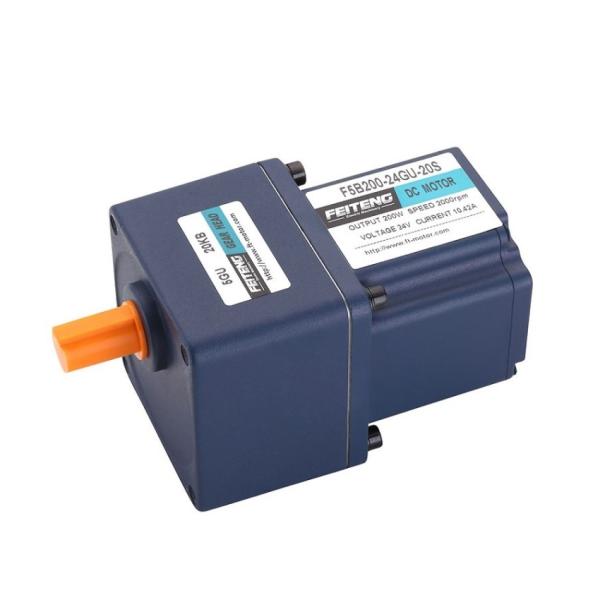

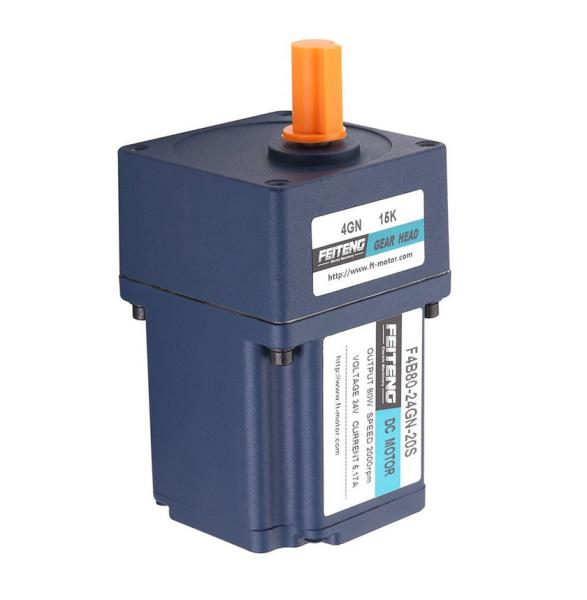

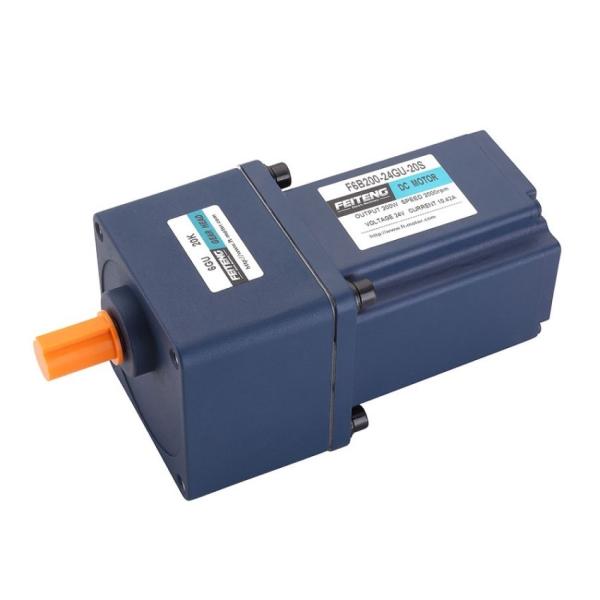

48v 24v Brushless DC Gearmotor , 200w 90mm BLDC Motor With Gearbox
48v 24v Brushless DC Gearmotor , 200w 90mm BLDC Motor With Gearbox
48v 24v Brushless DC Gearmotor , 200w 90mm BLDC Motor With Gearbox
48v 24v Brushless DC Gearmotor , 200w 90mm BLDC Motor With Gearbox
48v 24v Brushless DC Gearmotor , 200w 90mm BLDC Motor With Gearbox
48v 24v Brushless DC Gearmotor , 200w 90mm BLDC Motor With Gearbox
48v 24v Brushless DC Gearmotor , 200w 90mm BLDC Motor With Gearbox
48v 24v Brushless DC Gearmotor , 200w 90mm BLDC Motor With Gearbox
48v 24v Brushless DC Gearmotor , 200w 90mm BLDC Motor With Gearbox
48v 24v Brushless DC Gearmotor , 200w 90mm BLDC Motor With Gearbox
Specifications
Brand Name :
CHE
Model Number :
F55B200 series
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, D/P, Western Union, MoneyGram
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Voltage :
DC 12v, 24v, 48v
Power :
200w, 120w, 80w, 30w, 15w
Rated Speed :
2000rpm
Rated Torque :
0.955Nm
Brush Life :
5000 hours
Gear Ratio :
3/ 5/ 7.5/ 10/ 12.5/ 15/ 18/ 20/ 25/ 30......../ 150
OEM & ODM Service :
Available
Weight :
2100g
Description

Gear Box BLDC 48v 24v Electric DC Brushless Geared Motor 200w 90mm

48v 24v Brushless DC Gearmotor , 200w 90mm BLDC Motor With Gearbox

  • A brushless motor or BLDC gear motor is controlled by a motor driver or electronic controller that allows them to provide precise control of motor positioning, while delivering optimal speed and torque.
  • A brushless dc electric motor typically comes equipped with hall-effect sensors or an internal motor driver.
  • The accurate control of an ISL BLDC Motor results in reduced power consumption and less heat generation, creating a more efficient solution.
  • If you have any questions regarding the requirement of controllers to use, please contact us, our engineering team will provide a ull set of solution for you.
  • Available power 200w, 120w, 80w, 30w, 15w, available size 60mm, 70mm, 80mm, 90mm, 104mm

Motor Data:

Type Voltage Power Rated Torque No Load Speed No Load Current Rated Speed Rated Current Hall(Y.N) Life(Hours) Length Internal Drive Weight
V W N.m r/min A r/min A / H mm / g
F55B200--24GU-20S 24 200 0.955 2600 <1.0 2000 10.42 BOTH >5000 90 YES 2100
F55B200--48GU-20S 48 200 0.955 2600 <0.5 2000 5.2 BOTH >5000 90 YES 2100

90 GearBox:

Gear Ratio 3 3.6 5 6 7.5 9 10 12.5 15 18 25 30 36 40 50 60 75 90 100 120 150 180 200
Output Speed (r/min) 667 556 400 333 267 222 320 160 133 111 80 67 56 50 40 33 27 22 20 17 13 11 10
Allowance Torque (N.m) 2.32 2.78 3.86 4.64 5.8 6.96 7.01 8.96 10.44 12.53 15.66 18.79 20 20 20 20 20 20 20 20 20 20 20

200w 90mm Brushless DC Gear Motor Drawings:

48v 24v Brushless DC Gearmotor , 200w 90mm BLDC Motor With Gearbox
