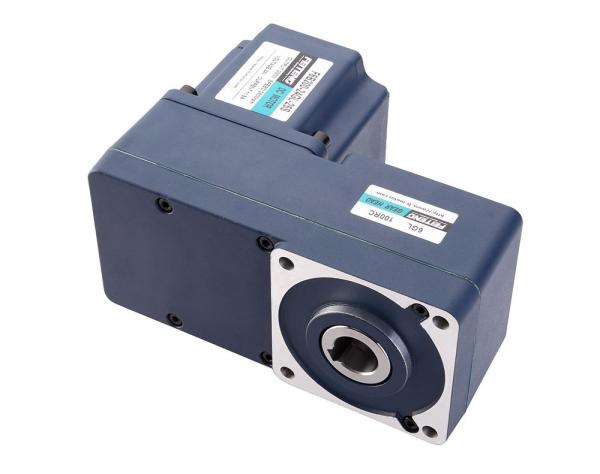

200 Watt Brushless DC Geared Motor 250W 400W With Right Angle Gearbox
200 Watt Brushless DC Geared Motor 250W 400W With Right Angle Gearbox
200 Watt Brushless DC Geared Motor 250W 400W With Right Angle Gearbox
200 Watt Brushless DC Geared Motor 250W 400W With Right Angle Gearbox
200 Watt Brushless DC Geared Motor 250W 400W With Right Angle Gearbox
200 Watt Brushless DC Geared Motor 250W 400W With Right Angle Gearbox
200 Watt Brushless DC Geared Motor 250W 400W With Right Angle Gearbox
200 Watt Brushless DC Geared Motor 250W 400W With Right Angle Gearbox
200 Watt Brushless DC Geared Motor 250W 400W With Right Angle Gearbox
200 Watt Brushless DC Geared Motor 250W 400W With Right Angle Gearbox
Specifications
Brand Name :
CHE
Model Number :
F5B90-24GL
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, D/P, Western Union, MoneyGram
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Voltage :
DC 12v, 24v, 36v, 48v
Power :
25w, 40w, 60w, 90w, 120w, 150w, 200w, 400w
Size :
60mm, 80mm, 90mm, 100mm
Rated Speed :
2500rpm
Gear Ratio :
5/ 10/ 15/ 20/ 30/ 50/ 100/ 150/ 200
OEM & ODM Service :
Available
Efficiency :
Ie 4
Description

25W to 200 Watt 250W 400W BLDC Brushless DC Geared Motor With Right Angle Gearbox

200 Watt Brushless DC Geared Motor 250W 400W With Right Angle Gearbox

A brushless motor or BLDC gear motor is controlled by a motor driver or electronic controller that allows them to provide precise control of motor positioning, while delivering optimal speed and torque. A brushless dc electric motor typically comes equipped with hall-effect sensors or an internal motor driver. The accurate control of an ISL BLDC Motor results in reduced power consumption and less heat generation, creating a more efficient solution. If you have any questions regarding the requirement of controllers to use, please contact our engineering team.

Motor Parameters:

Motor Model Voltage Power No Load Current No Load Speed Rated Current Rated Speed Rated Torque
Type Of Motor V W A RPM A RPM N.m
F6B120-24GL-25S 12/24/36/48 120 <0.8 3500 7.0 2500 0.458
F6B200-24GL-25S 12/24/36/48 200 <1.2 3500 11.5 2500 0.764
F6B400-24GL-25S 12/24/36/48 400 <1.6 3500 22.0 2500 1.528


Gear Ratio Performance:

Gear Ratio Unit 5 10 15 20 30 50 100 150 200
Allowable Torque N.m 7.0 13.9 20.9 13.3 19.9 33.2 66.4 90 100
Recommend Power W 200 200 200 150 150 150 150 90 90
Recommend Speed 2500RPM
Output Torque n.m 5.6 11.2 16.7 11.2 16.7 27.9 55.8 83.7 100
RatedSpeed rpm 500 250 125 125 83 50 25 16.7 12.5

  • In the table, the speed is calculated form the base of the motor's avaerage speed divided by the deceleration ratio. The actual speed will vary with the load, ranging from 2 to 20%.
  • Table transfer torque is calculated from motor rated torque "deceleration ratio" transmission efficiency


100GL Right Angle Brushless DC Gear Motor Drawings:

200 Watt Brushless DC Geared Motor 250W 400W With Right Angle Gearbox
