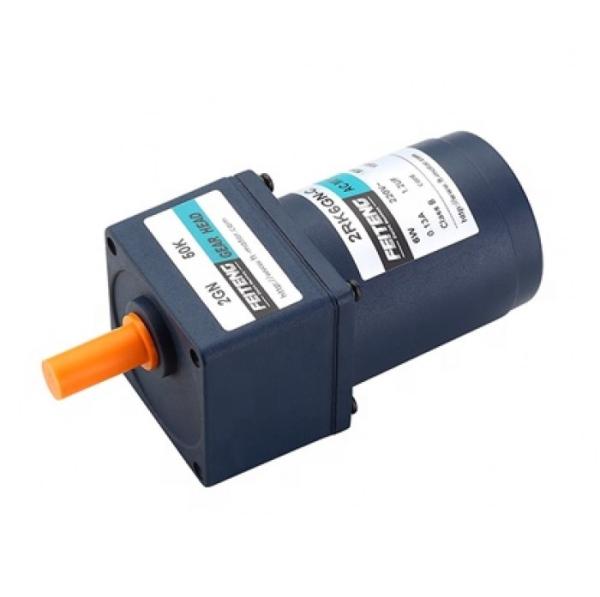

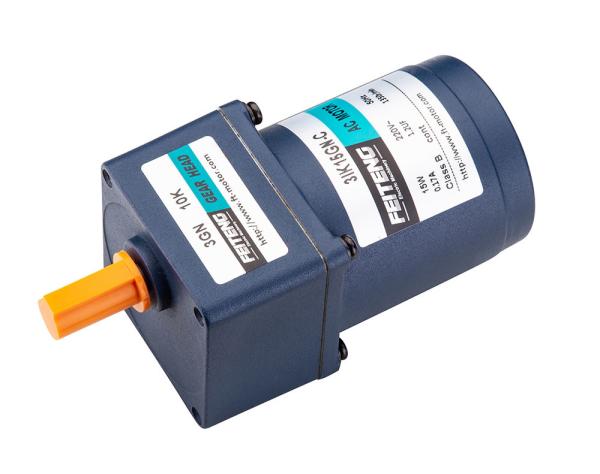

1Phase 220v Small AC Gear Motor 15w 70mm 1250rpm Gear Motor
1Phase 220v Small AC Gear Motor 15w 70mm 1250rpm Gear Motor
1Phase 220v Small AC Gear Motor 15w 70mm 1250rpm Gear Motor
1Phase 220v Small AC Gear Motor 15w 70mm 1250rpm Gear Motor
1Phase 220v Small AC Gear Motor 15w 70mm 1250rpm Gear Motor
1Phase 220v Small AC Gear Motor 15w 70mm 1250rpm Gear Motor
Specifications
Brand Name :
CHE
Model Number :
3IK15GU-C
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, D/P, Western Union, MoneyGram
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Voltage :
AC 110V, 220V, 380V
Power :
25W, 40W, 60W, 90W, 120W, 200W, 400W
Size :
80mm, 90mm, 104mm, 120mm
Frequency :
50Hz
Rated Speed :
1350rpm
Rated Torque :
1414Nm
Starting Torque :
1050Nm
OEM & ODM Service :
Available
Description

1Phase 220v Small AC Gear Motor 15w 70mm 1250rpm Gear Motor

CHE AC Induction Gear Motor Features:

1. Coaxial helical gear motor has compact structure, small volume, beautiful shape and strong overload capacity.

2. Low energy consumption, superior performance, reducer efficiency up to 96%, low vibration, low noise.

3. CHE induction gear motors have variable size and power:

6w 15w 25w 40w 60w 90w 120w 200w
60mm 70mm 80mm 90mm 90mm 90mm 90mm 104mm

4. Widely used in those industry

* Metering Pump
* Consumer Electronics
* Cordless Power Tools
* Drones
* Dental Tools
* HVAC Systems
* Industrial Automation
* Printers & Copiers
* Robotics
* Medical Tools

List of Motor Characteristics:

Motor Model Output Power Voltage Frequency Current Rated Speed Rated Torque Statring Torque Capacitor
Pinion Shaft Round Shaft W V Hz A r/min mN.m mN.m μF/VAC

3IK15GN-C

 3IK15A-C 15 1ph220 50 0.17 1250 125 884 1.2/450
60 0.24 1450 92 86
3IK15GN-A 3IK15A-A 15 1ph110 50 0.34 1250 127 109 5.0/250
60 0.35 1450 94120

Gear Reduction Ratio:

Gear Ratio 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 50 60 75 90 100 120 150 180 200
50Hz Speed (r/min) 450 375 270 225 180 150 135 108 90 75 67.5 54 45 37.5 3.7 22.5 18 15 13.5 11.3 9 7.5 6.75
Torque(Nm) 1.05 0.36 0.5 0.61 0.76 0.91 1.01 1.26 1.5 1.64 1.82 2.27 2.73 3.27 3.63 4.54 4.9 5 5 5 5 5
60Hz Speed (r/min) 516 430 310 258 206 172 15 124 103 86.1 77.5 62 51.6 43.1 31 25.8 20.6 17.2 15.5 12.9 10.3 8.6 7.75
Torque(Nm) 0.22 0.27 0.37 0.45 0.56 0.67 0.74 0.93 1.11 1.2 1.34 1.67 2.01 2.41 2.67 3.34 3.11 4.11 5 5 5 5 5

Drawings of Gear Motor:

1Phase 220v Small AC Gear Motor 15w 70mm 1250rpm Gear Motor

1Phase 220v Small AC Gear Motor 15w 70mm 1250rpm Gear Motor

Wiring Diagram:

1Phase 220v Small AC Gear Motor 15w 70mm 1250rpm Gear Motor
