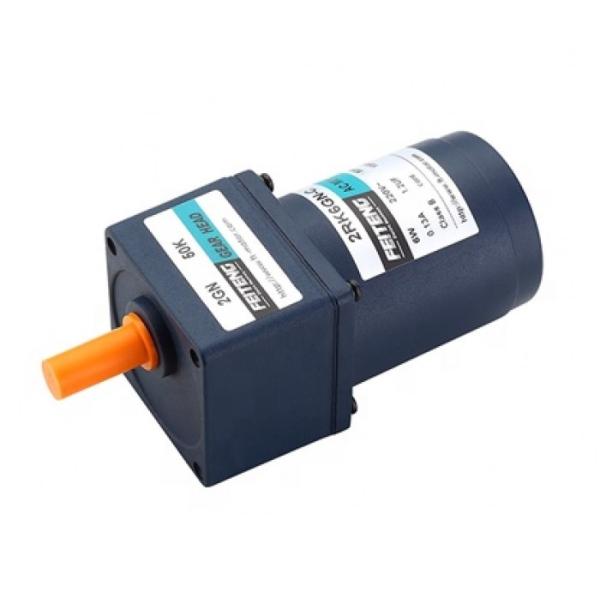

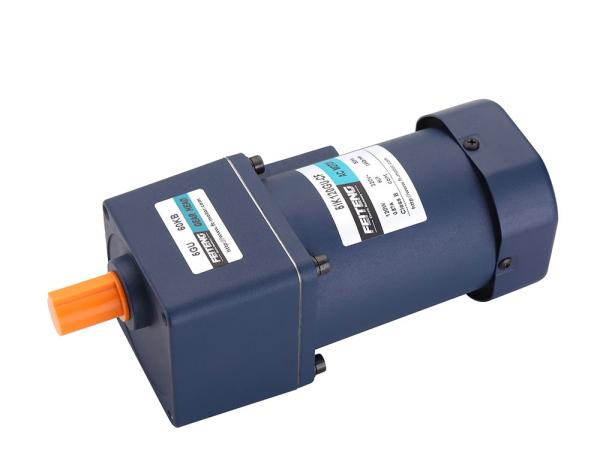

120w 1350rpm 380v AC 3 Phase Induction Motor With Gearbox
120w 1350rpm 380v AC 3 Phase Induction Motor With Gearbox
120w 1350rpm 380v AC 3 Phase Induction Motor With Gearbox
120w 1350rpm 380v AC 3 Phase Induction Motor With Gearbox
120w 1350rpm 380v AC 3 Phase Induction Motor With Gearbox
120w 1350rpm 380v AC 3 Phase Induction Motor With Gearbox
Specifications
Brand Name :
CHE
Model Number :
5IK120GU-S3F
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, D/P, Western Union, MoneyGram
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Voltage :
AC 110V, 220V, 380V
Power :
25W, 40W, 60W, 90W, 120W, 200W, 400W
Size :
80mm, 90mm, 104mm, 120mm
Frequency :
50Hz
Rated Speed :
1350rpm
Rated Torque :
1414Nm
Starting Torque :
1050Nm
OEM & ODM Service :
Available
Description

4IK25GN-C 25w 80mm Small AC Induction Gear Motor 3 Phase

4IK25GN-C 25w 80mm Small AC Induction Gear Motor 3 Phase

CHE AC Induction Gear Motor Features:

1. Coaxial helical gear motor has compact structure, small volume, beautiful shape and strong overload capacity.

2. Low energy consumption, superior performance, reducer efficiency up to 96%, low vibration, low noise.

3. CHE induction gear motors have variable size and power:

6w 15w 25w 40w 60w 90w 120w 200w
60mm 70mm 80mm 90mm 90mm 90mm 90mm 104mm

4. Widely used in those industry

* Metering Pump
* Consumer Electronics
* Cordless Power Tools
* Drones
* Dental Tools
* HVAC Systems
* Industrial Automation
* Printers & Copiers
* Robotics
* Medical Tools

List of Motor Characteristics:

Motor Model Output Power Voltage Frequency Current Rated Speed Rated Torque Statring Torque Capacitor
Pinion Shaft Round Shaft W V Hz A r/min mN.m mN.m μF/VAC

5IK120GU-CF

 5IK120A-CF 120 1ph220 50 0.87 1350 874 663 6.0/450
60 0.24 1550 149 168
5IK120GU-AF 5IK120A-AF 120 1ph110 50 1.79 1350 919 500 25.0/250
60 1.65 1550 740 512
5IK120GU-SF 5IK120A--SF 120 3ph220 50 0.81 1350 879 2800 /
60 0.27 1550 735 2150
5IK120GU-S3F 5IK120A-S3F 120 3ph380 50 0.46 1350 879 2660 /
60 0.4 1550 731 2030

Gear Reduction Ratio:

Gear Ratio 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 50 60 75 90 100 120 150 180 200
50Hz Speed (r/min) 450 375 270 225 180 150 135 108 90 75 67.5 54 45 37.5 3.7 22.5 18 15 13.5 11.3 9 7.5 6.75
Torque(Nm) 2.12 2.55 3.54 4.25 5.31 6.37 6.9 7.96 9.56 11.47 12 14.36 17.2 20 20 20 20 20 20 20 20 20 20
60Hz Speed (r/min) 516 430 310 258 206 172 15 124 103 86.1 77.5 62 51.6 43.1 31 25.8 20.6 17.2 15.5 12.9 10.3 8.6 7.75
Torque(Nm) 1.72 2.07 2.87 3.45 4.31 5.17 5.8 6.46 7.75 9.3 9.9 11.63 13.96 16.75 18.61 20 20 20 20 20 20 20 20
