12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller
12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller
12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller
12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller
Specifications
Model Number :
LC86H3156+LCDA2260E
Brand Name :
Lichuan
Place of Origin :
Guangdong, China
MOQ :
1 piece
Price :
$170.60-188.30 / piece
Phase :
3
Type :
Hybrid
Current / Phase :
3A
Warranty :
3 months ~ 1 year
Motor Step/angle :
1.2
Motor Length :
129+22mm
Motor Holidng torque :
12N.m
Motor Motor weight :
4.6KGS
Motor Rotor inertia :
3000 g.cm2
Driver voltage input :
150-230VAC
Driver Maximum current :
6A
Driver Subdivision range :
200 ~ 51200ppr
Driver Impulse response limit frequency :
200KHZ
MACH3 :
Support
Description

Nema 34 closed loop Motor 10N.m 3phase closed loop stepper motor with driver controller for AC 220V with digital display

Packing list

NO. Item No. Description QTY
1 LCDA2260E 3 phase closed loop digital stepper motor driver 1PC
2 LC86H3156 3 phase 10NM NEMA34 Closed-loop stepper motor 1PC
3 Encoder cable 3M Encoder cable (Longer cable available) 1PC

Product Description

>>>3 phase 10NM NEMA34 Closed-loop stepper motor/ LC86H3156 information

Three-phase 86 series closed-loop stepper motor, the use of high-quality raw materials and high-standard permanent magnet silicon steel, with 1000-line high-precision encoder, completely overcome the open-loop stepper motor stepping problems, while significantly enhance the motor high-speed performance, To facilitate the traditional step-by-step drive program upgrade, cost reduction compared to servo motor to reduce more than 50%. Motor length 129mm ~ 156mm between the torque range: 9N.m ~ 12N.m

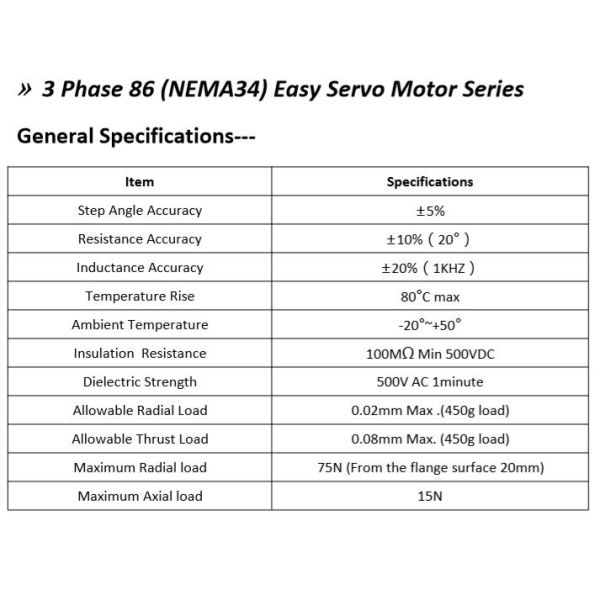

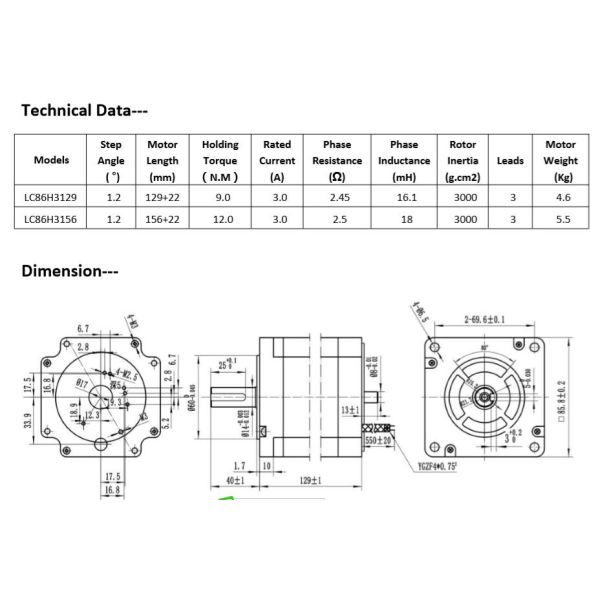

Lichuan 3 phase 10NM NEMA34 Closed-loop stepper hybrid motor specification:

12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller

12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller

>>>Lichuan 3 phase NEMA34 digital Closed-loop stepper motor drive /LCDA2260E information

LCDA2260E using the latest dedicated motor control DSP chip and vector closed-loop control technology, completely overcome the open-loop stepper motor stepped the problem, while significantly enhance the motor high-speed performance, reduce motor heating and reduce motor vibration, improve machine processing speed and accuracy, Machine energy consumption. This drive is suitable for motor mounting size compatible with 86/110 series stepper motor, to facilitate the traditional step-by-step drive program upgrade, significantly reduce costs.

3 phase NEMA34 digital Closed-loop stepper motor driver /LCDA2260E specification:

Features:

1. Voltage input range: 150 ~ 230VAC
2. Quiescent current and dynamic current can be set at 0 ~ 6A
3. Closed-loop vector control to ensure that the motor high-speed high-torque output, while ensuring the motor does not lose step
4. Built-in sub-sub-low-speed low-level operation can also be very smooth
5. Parameter automatic setting function
6. Current dynamic control greatly reduces the motor heat, ultra-low vibration noise
7. External digital debugging panel for easy parameter setting and monitoring
8. Sub-adjustable range of 200 ~ 51200ppr, impulse response frequency up to 200KHZ
9. Serial communication function, current, subdivision can be adjusted, signal edge, alarm output logic and other functions adjustable
10. Closed-loop vector control to ensure that the motor high-speed high-torque output,

while ensuring that the motor is not lost step with over-voltage, over-current, tracking error tolerance

Main parameter :

1. Electrical indicators

Parameter/Vaule

LCDA2260H

Minimum

Typical

Maximum

Unit

Max peak current

-

-

6

A

Input voltage

150

220

230

VAC

Logic input current

7

10

16

mA

Pulse frequency

-

-

200

KHZ

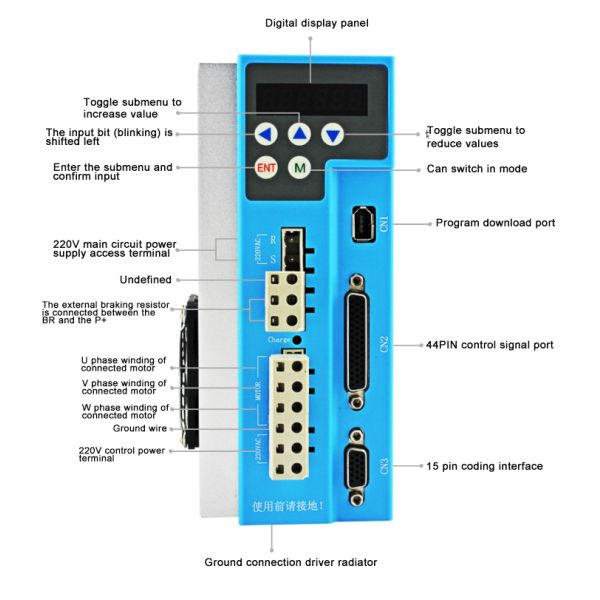

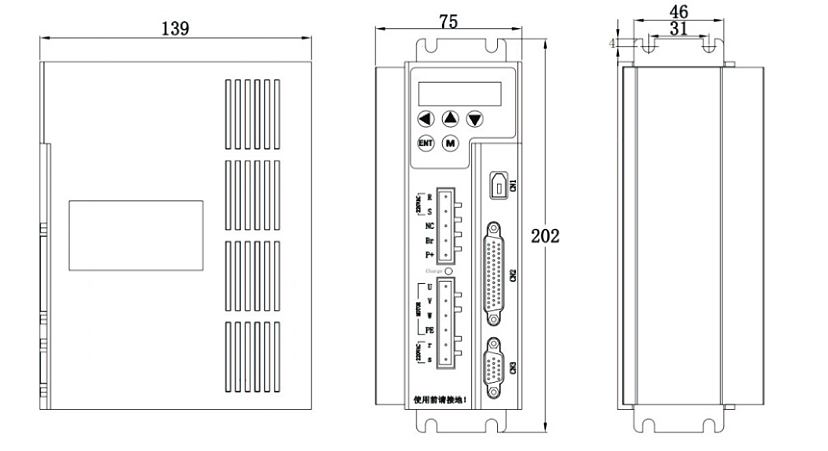

3 phase NEMA43 digital Closed-loop stepper motor driver /LCDA2260E size and wiring:

12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller

3phase Nema34 closed loop stepper motor wtih driver for AC 220V 12NM with digital disply for China CNC router kit

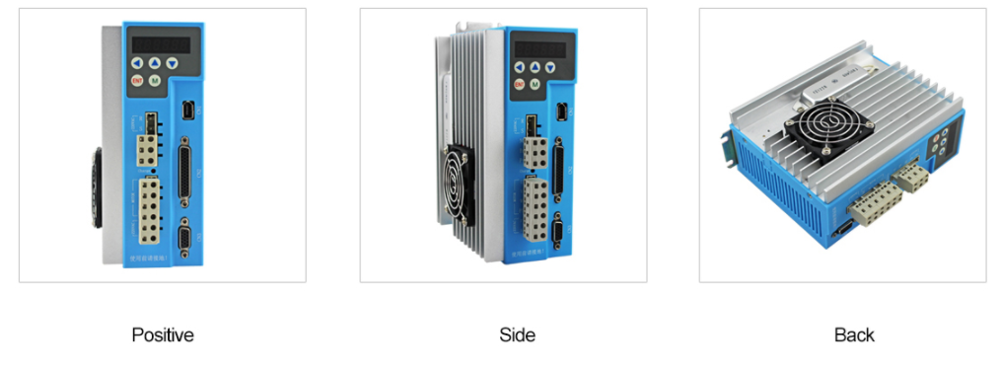

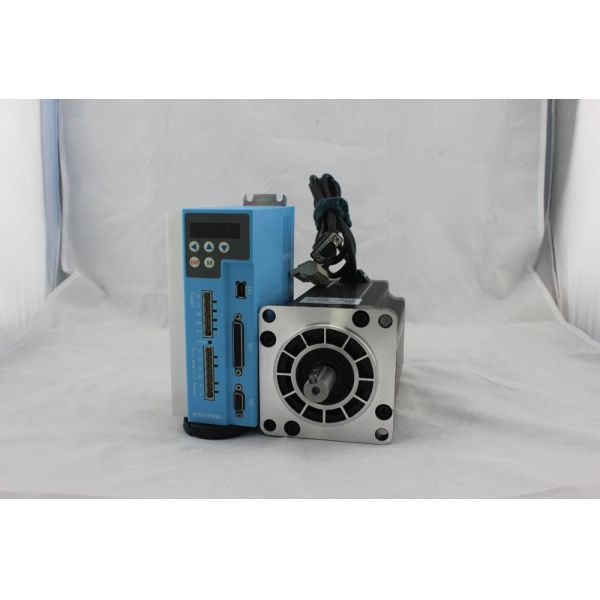

LCDA2260E+LC86H3156 pictures:

12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller

12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller12N.M 3A 3 Phase Nema 34 Closed Loop Motor Closed Loop Stepper Motor With Driver Controller
