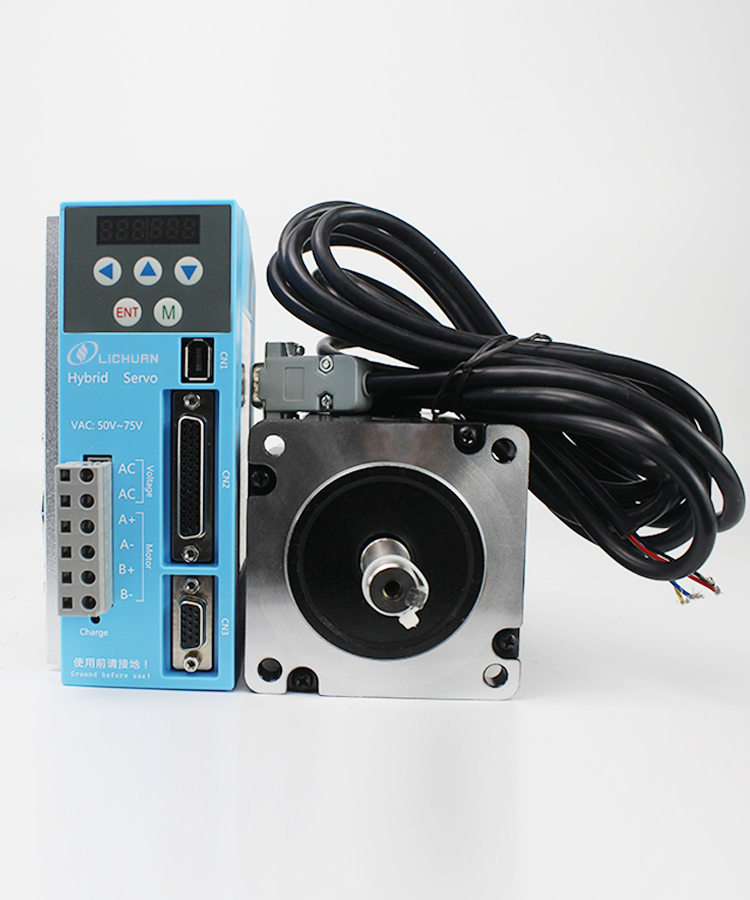

LICHUAN 4.5 N.m Nema 34 Closed Loop Stepper Motor Driver 2 Phase Closed Loop Stepper Motor with Driver LC86H280+LCDA808F
LICHUAN 4.5 N.m Nema 34 Closed Loop Stepper Motor Driver 2 Phase Closed Loop Stepper Motor with Driver LC86H280+LCDA808F
LICHUAN 4.5 N.m Nema 34 Closed Loop Stepper Motor Driver 2 Phase Closed Loop Stepper Motor with Driver LC86H280+LCDA808F
LICHUAN 4.5 N.m Nema 34 Closed Loop Stepper Motor Driver 2 Phase Closed Loop Stepper Motor with Driver LC86H280+LCDA808F
LICHUAN 4.5 N.m Nema 34 Closed Loop Stepper Motor Driver 2 Phase Closed Loop Stepper Motor with Driver LC86H280+LCDA808F
LICHUAN 4.5 N.m Nema 34 Closed Loop Stepper Motor Driver 2 Phase Closed Loop Stepper Motor with Driver LC86H280+LCDA808F
LICHUAN 4.5 N.m Nema 34 Closed Loop Stepper Motor Driver 2 Phase Closed Loop Stepper Motor with Driver LC86H280+LCDA808F
LICHUAN 4.5 N.m Nema 34 Closed Loop Stepper Motor Driver 2 Phase Closed Loop Stepper Motor with Driver LC86H280+LCDA808F
LICHUAN 4.5 N.m Nema 34 Closed Loop Stepper Motor Driver 2 Phase Closed Loop Stepper Motor with Driver LC86H280+LCDA808F
LICHUAN 4.5 N.m Nema 34 Closed Loop Stepper Motor Driver 2 Phase Closed Loop Stepper Motor with Driver LC86H280+LCDA808F
Specifications
Model Number :
LC86H280+LCDA808F
Brand Name :
LICHUAN, LICHUAN
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
$79.20-91.80 / set
Phase :
2
Type :
Hybrid, LC86H280+LCDA808F
Current / Phase :
6A
Warranty :
3 months ~ 1 year
Name :
Nema34 closed loop stepper motor kit
Torque :
4.5N.M
motor current :
6A
Voltage :
AC50V~80V
Application :
High Speed CNC Machine
Motor length :
105
Encoder Resolution(PPR) :
1000
Weight :
2.5
Description
Packing List
NO.
Product name
Model / Description
Quantity
1
Lichuan Nema34 closed loop stepper motor
LC86H280
1
2
Lichuan closed loop stepper driver
LCDA808F
1
3
Encoder Cable direct connection
Standard(3m)
1
LICHUAN 4.5 N.m Nema 34 Closed Loop Stepper Motor Driver 2 Phase Closed Loop Stepper Motor with Driver LC86H280+LCDA808F
Products Description

2 Phase Digital Hybrid Servo Driver

LCDA808F adopts the latest special motor control DSP chip and vector closed loop control technology, completely solves step missing issues for open loop stepper motor,obviously improves motor performance at high speed, reduces heat generation and vibration of motor, increases processing speed and precision of machine, decreases power consumption, applies to 2 phase Nema34 closed loop motors, has both stepper and servo advantages.
LICHUAN 4.5 N.m Nema 34 Closed Loop Stepper Motor Driver 2 Phase Closed Loop Stepper Motor with Driver LC86H280+LCDA808F
LICHUAN 4.5 N.m Nema 34 Closed Loop Stepper Motor Driver 2 Phase Closed Loop Stepper Motor with Driver LC86H280+LCDA808F
LICHUAN 4.5 N.m Nema 34 Closed Loop Stepper Motor Driver 2 Phase Closed Loop Stepper Motor with Driver LC86H280+LCDA808F
2 Phase Digital Hybrid Servo Driver
Parameter
Drive Details
Driver type
LCDA808F
Match Motor recommend
Nema34 closed loop stepper motor
Voltage Input range
AC50V~80V
Max peak current
8A
Subdivision range
200~51200ppr
200KHZPulse response frequency
2500PPR incremental
Signal input
Differen al/single terminal, pulse/direc on
Weight
1kg
LICHUAN 4.5 N.m Nema 34 Closed Loop Stepper Motor Driver 2 Phase Closed Loop Stepper Motor with Driver LC86H280+LCDA808F
2 Phase Nema34 Closed Loop Stepper Motor
Motor type
LC86H280
Step Angle (°)
1.8
Length (mm)
105
Holding torque(N.m)
4.5
Phase Current(A)
6.0
Encoder Resolution(PPR)
1000
Length (mm)
105
Shaft Length(mm)
40
Shaft Diameter(mm)
φ14
Motor Weight(kg)
2.5
Application Area
