2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines
2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines
2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines
2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines
Specifications
Model Number :
LC86H298+LCDA808H
Brand Name :
LICHUAN
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
$103-113 / set
Phase :
2, 2-Phase
Type :
Hybrid, LC86H298+LCDA808H
Current / Phase :
6A
Warranty :
3 Months
Name :
Nema34 closed loop stepper motor kit
Voltage :
DC20-50V
Application :
High Speed CNC Machine
Torque :
6.5N.M
motor current :
6A
Motor length :
98+22mm
PPR :
1000
motor weight :
3.3Kg
Description

2 Phase 6.5 N.m LC86H298+LCDA808H Nema 34 closed loop stepper motor driver for CNC machines

Product Description

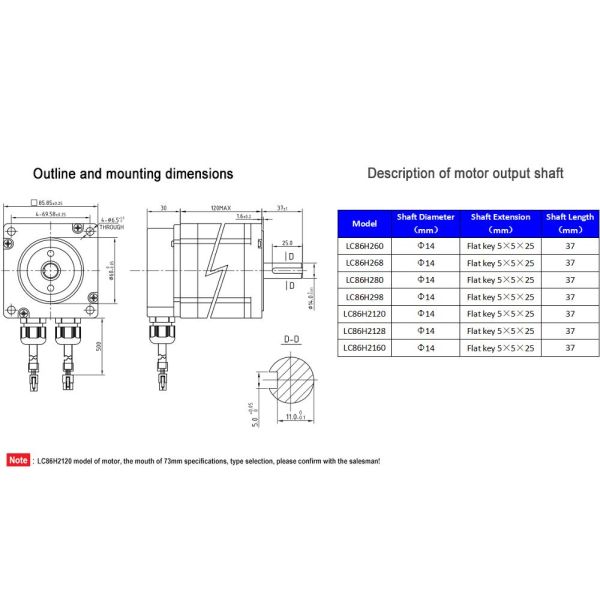

Nema34 LC86H298 Motor specification:

Motor model

Step/angle

Length

Holding torque

Current

Rotor inertia

Encoder line

Lead wire

Weight

°

mm

N.M

A

g.cm2

PPR

NO.

Kg

LC86H260

1.8

60+22

3

6

1100

1000

4

2.0

LC86H268

1.8

68+22

3.5

6

1400

1000

4

2.2

LC86H280

1.8

80+22

4.5

6

1800

1000

4

2.5

LC86H298

1.8

98+22

6.5

6

2800

1000

4

3.3

LC86H2120

1.8

120+22

8.2

6

3600

1000

4

4.0

LC86H2128

1.8

130+22

10

7.5

4200

1000

4

4.5

LC86H2160

1.8

156+22

12

7.5

5400

1000

4

5.


2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines

2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines

Motor Driver LCDA808H Products information :

Parameter/Value

LCDA808H

Minimum

Typical

Maxmum

unit

Maximum current

-

-

8

A

Input power voltage

50

70

80

VAC

Logic input current

7

10

16

mA

Pulse frequency

-

200

-

kHz

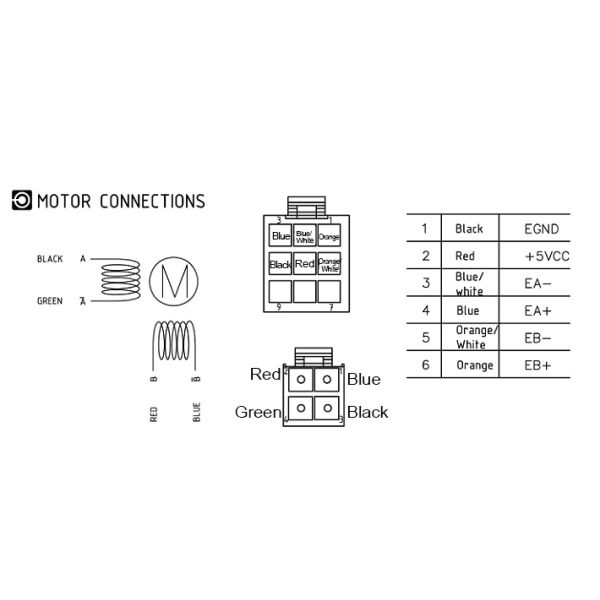

Pin

Symbol

Color

Name

2

EB+

Yellow

Motor encoder B phase positive input

12

EB-

Green

Motor encoder B phase negative input

1

EA+

Black

Motor encoder A Phase positive input

11

EA-

Blue

Motor encoder A phase negative input

13

VCC

Red

Encoder + 5V input

3

EGND

White

Encoder power ground

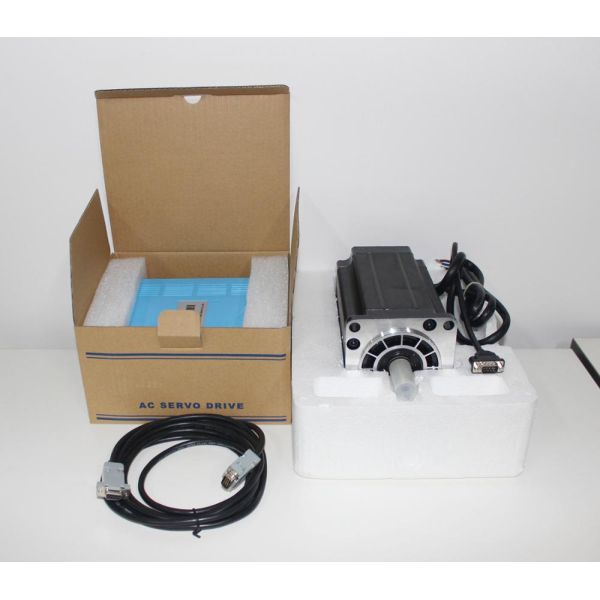

Motor Nema34 and Driver pictures:

2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines

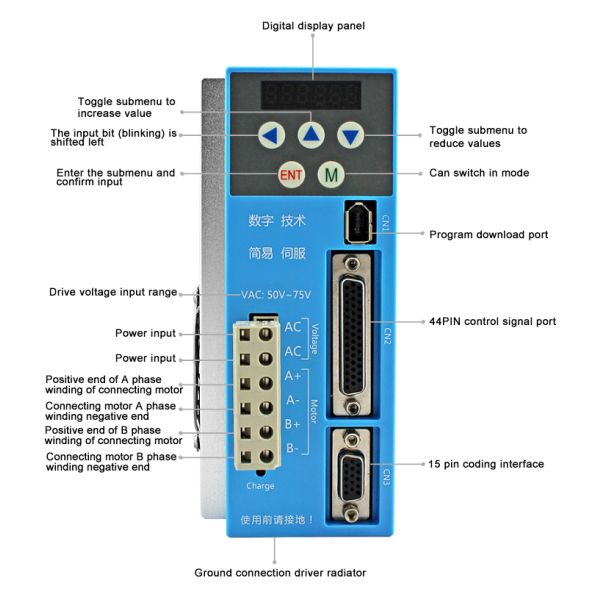

Lichuan Driver LCDA808H Panel Instruction :
2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines
2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines2 Phase 6.5N.M LC86H298+LCDA808H Closed Loop Stepper Nema 34 For CNC Machines
