LCDA808F+LC86H2150 12N.m 7.5A Nema 34 Closed Loop Stepper Motor with Driver for Milling Machine
LCDA808F+LC86H2150 12N.m 7.5A Nema 34 Closed Loop Stepper Motor with Driver for Milling Machine
LCDA808F+LC86H2150 12N.m 7.5A Nema 34 Closed Loop Stepper Motor with Driver for Milling Machine
LCDA808F+LC86H2150 12N.m 7.5A Nema 34 Closed Loop Stepper Motor with Driver for Milling Machine
LCDA808F+LC86H2150 12N.m 7.5A Nema 34 Closed Loop Stepper Motor with Driver for Milling Machine
LCDA808F+LC86H2150 12N.m 7.5A Nema 34 Closed Loop Stepper Motor with Driver for Milling Machine
LCDA808F+LC86H2150 12N.m 7.5A Nema 34 Closed Loop Stepper Motor with Driver for Milling Machine
LCDA808F+LC86H2150 12N.m 7.5A Nema 34 Closed Loop Stepper Motor with Driver for Milling Machine
LCDA808F+LC86H2150 12N.m 7.5A Nema 34 Closed Loop Stepper Motor with Driver for Milling Machine
LCDA808F+LC86H2150 12N.m 7.5A Nema 34 Closed Loop Stepper Motor with Driver for Milling Machine
Specifications
Model Number :
LCDA808F+LC86H2150
Brand Name :
Lichuan
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
$108.30-116.10 / set
Phase :
2, 2
Type :
Hybrid
Current / Phase :
7.5A
Warranty :
3 months ~ 1 year
Product name :
12Nm Nema34 digital stepper servo motor system
Driver voltage :
50~80VAC
Phase Current :
7.5A
Frame size :
86*86mm
Motor weight :
5.4kg
Motor lenght :
160mm
Shaft daimeter :
8mm
Axis length :
22mm
PPR :
1000
Description

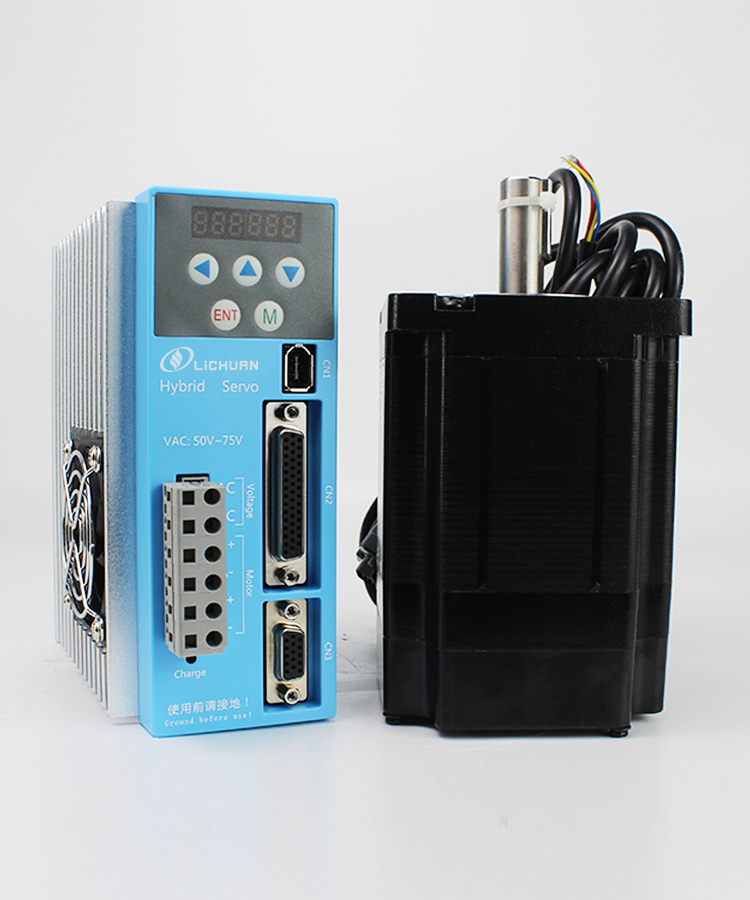

Packing List
NO.
Product Name
Model/Description
Quantity
1
Nema 34 closed loop stepper motor
LC86H2150
1
2
Nema 34 closed loop stepper driver
LCDA808F
1
3
Driver encoder cable
Standard (3m)
1
LCDA808F+LC86H2150 12N.m 7.5A Nema 34 Closed Loop Stepper Motor with Driver for Milling Machine
Products Description

LCDA808F adopts the latest special motor control DSP chip and vector closed loop control technology, completely solves step missing issues for open loop stepper motor, obviously improves motor performance at high speed, reduces heat generation and vibration of motor, increases processing speed and precision of machine, decreases power consumption, applies to 2 phase Nema34 closed loop motors, has both stepper and servo advantages, low noise, strong anti-interference capacity, is suitable for high speed, external digital debugging panel and easy parameter setings and monitoring.
LCDA808F+LC86H2150 12N.m 7.5A Nema 34 Closed Loop Stepper Motor with Driver for Milling Machine
LCDA808F+LC86H2150 12N.m 7.5A Nema 34 Closed Loop Stepper Motor with Driver for Milling Machine
LCDA808F+LC86H2150 12N.m 7.5A Nema 34 Closed Loop Stepper Motor with Driver for Milling Machine

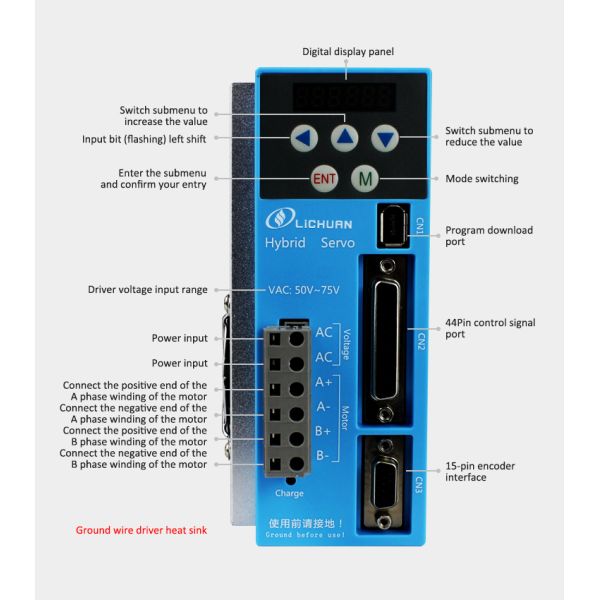

Lichuan 2 Phase Digital Hybrid Servo Driver
Product Model
LCDA808F

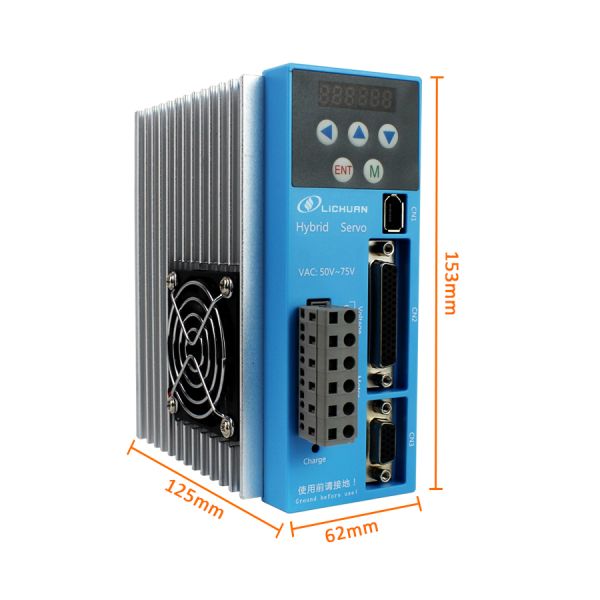

Product Size
125*62*153mm
Voltage input range
AC50V~80V
Max peak current
8A
Subdivision range
200~51200ppr
Pulse response frequency
200KHZ
Pulse form
Pulse + direction,CW/CCW
Match for Motor
LCDA808F+LC86H2150 12N.m 7.5A Nema 34 Closed Loop Stepper Motor with Driver for Milling Machine
2 Phase Nema 34 Closed Loop Stepper Motor
Motor
LC86H2150
Step Angle (°)
1.8
Length (mm)
176
Holding Torque (N.m)
12
Phase Current (A)
7.5
Weight(kg)
5.5
Encoder Resolution(PPR)
1000
Application Area
