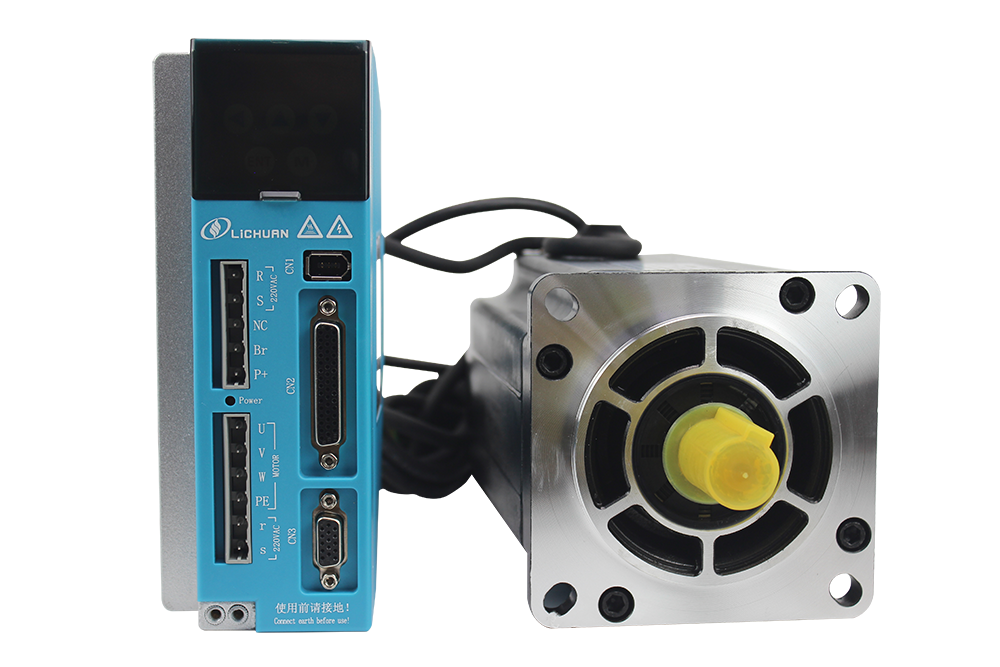

Lichuan 220V 12NM 3 Phase Nema 34 Closed Loop Stepper Motor Driver With Digital Display
Lichuan 220V 12NM 3 Phase Nema 34 Closed Loop Stepper Motor Driver With Digital Display
Lichuan 220V 12NM 3 Phase Nema 34 Closed Loop Stepper Motor Driver With Digital Display
Lichuan 220V 12NM 3 Phase Nema 34 Closed Loop Stepper Motor Driver With Digital Display
Lichuan 220V 12NM 3 Phase Nema 34 Closed Loop Stepper Motor Driver With Digital Display
Lichuan 220V 12NM 3 Phase Nema 34 Closed Loop Stepper Motor Driver With Digital Display
Lichuan 220V 12NM 3 Phase Nema 34 Closed Loop Stepper Motor Driver With Digital Display
Lichuan 220V 12NM 3 Phase Nema 34 Closed Loop Stepper Motor Driver With Digital Display
Lichuan 220V 12NM 3 Phase Nema 34 Closed Loop Stepper Motor Driver With Digital Display
Lichuan 220V 12NM 3 Phase Nema 34 Closed Loop Stepper Motor Driver With Digital Display
Specifications
Type :
Hybrid
Motor Step/angle :
1.2
Driver Subdivision range :
200 ~ 51200ppr
Current / Phase :
3A
Product name :
3 phase Nema 34 closed loop stepper motor driver
Motor Motor weight :
5.5KG
Motor Length :
156+22mm
Driver Maximum current :
6A
Model Number :
LCDA2260E+LC86H3156
Brand Name :
Lichuan
Place of Origin :
Guangdong, China
MOQ :
1 piece
Price :
$172.60-188.30 / piece
Driver Impulse response limit frequency :
200KHZ
Motor Holidng torque :
12N.m
Driver voltage input :
150-230VAC
Motor Rotor inertia :
3000 g.cm2
Phase :
3
Warranty :
3 months ~ 1 year
Description
Lichuan Motor Stepper AC 220V 12NM 3 Phase Nema 34 Closed Loop Stepper Motor Driver With Digital Display For CNC Router Kit

Packing List
NO.
Product Name
Model / Description
Quantity
1
Nema 34 closed loop stepper motor
LC86H3156
1
2
Nema 34 closed loop stepper driver
LCDA2260E
1
3
Driver encoder cable
Standard (3m)
1
Lichuan 220V 12NM 3 Phase Nema 34 Closed Loop Stepper Motor Driver With Digital Display
Products Description

3 phase 10NM NEMA34 Closed-loop stepper motor driver/ LC86H3156 information

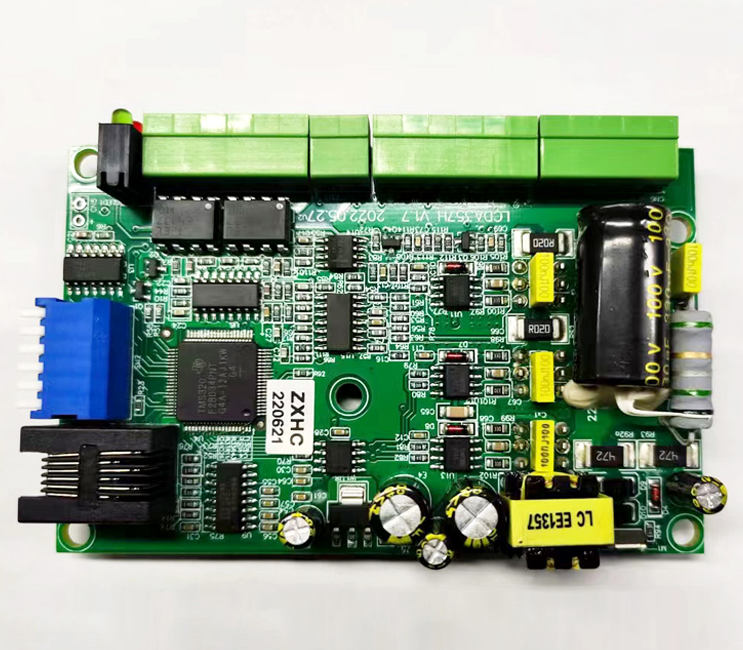

LCDA2260E adopts the latest special motor control DSP chip and vector closed loop control technology, completely solves step missing issues for open loop stepper motor,obviously improves motor performance at high speed, reduces heat generation and vibration of motor, increases processing speed and precision of machine, decreases power consumption. When continuous overload of motor occurs, the Driver will timely output alarm signal, it is as reliable as AC servo system. Applies to motor installation dimensions which are fully compatible with Nema 34/42 series stepper motors, is convenient for upgrading traditional stepper driver solutions and largely reduces cost.
Lichuan 220V 12NM 3 Phase Nema 34 Closed Loop Stepper Motor Driver With Digital Display
Lichuan 220V 12NM 3 Phase Nema 34 Closed Loop Stepper Motor Driver With Digital Display
Lichuan 220V 12NM 3 Phase Nema 34 Closed Loop Stepper Motor Driver With Digital Display

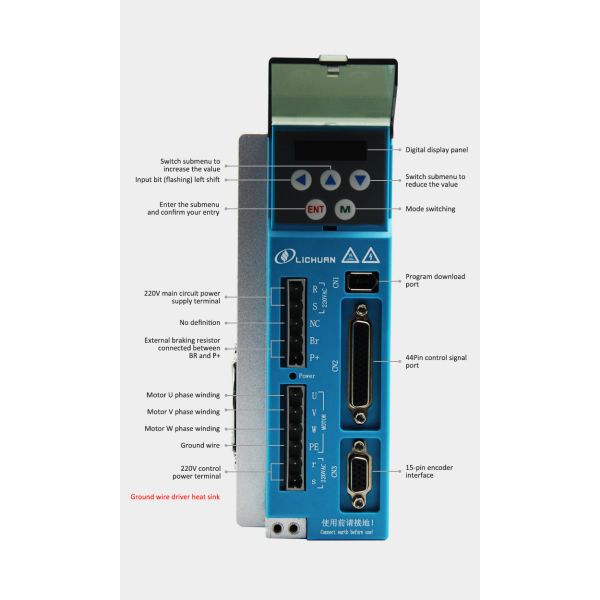

Lichuan 3 Phase Digital Hybrid Servo Driver

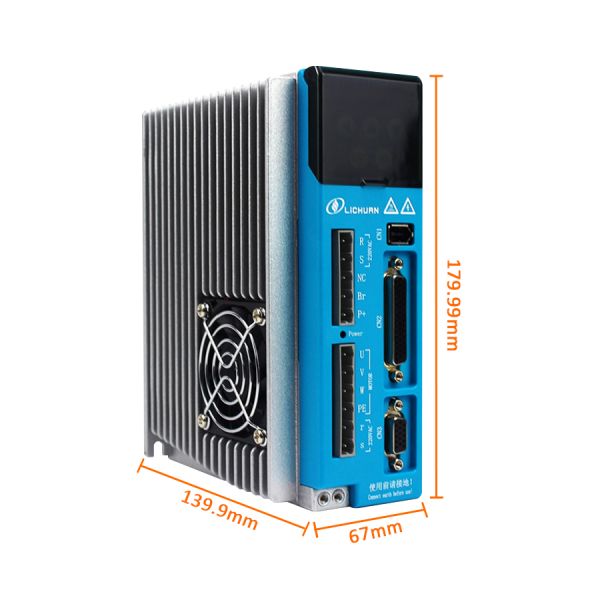

Product Model
LCDA2260E
Product Size
179.99*139.9*67mm
Product Weight
1.22KG
Voltage input range
AC 150V~230V
Maximum output current
6A
Pulse form
Pulse + direction,CW/CCW
Logic input current
10~20mA
Pulse corresponding frequency
0~200kHz
insulation resistance
500MΩ
Lichuan 220V 12NM 3 Phase Nema 34 Closed Loop Stepper Motor Driver With Digital Display
3 Phase Nema 34 Closed Loop Stepper Motor
Series
Step Angle(°)
Holding Torque(N.m)
Phase Current(A)
Length (mm)
Weight (kg)
LC86H398
1.2
6.0
3.0
123
3.5
LC86H3114
1.2
6.8
3.0
140
4.2
LC86H3129
1.2
10
3.0
154
4.7
LC86H3156
1.2
12
3.0
182
5.5
Application Area
