Specifications
Brand Name :
LEOTECH
Certification :
CE
Place of Origin :
Chongqing, China
MOQ :
1 set
Price :
$10000/sets
Product Name :
Clinic-Optimized Dry Milling System for Same-Day Restorations
Warranty :
1 Year
After-sale Service :
Online technical support
Processing Material :
Zirconia、Resin、PMMA
Toll storage capacity :
4
Spindle power :
0.7w
Overall power :
3kw
Input Voltage :
220v
Length,width and height :
470*618*710mm
Shelf Life :
1 Year
Quality Certification :
CE
Description

Clinic-Optimized Dry Milling System for Same-Day Restorations

Clinic-Optimized Dry Milling System for Same-Day Restorations

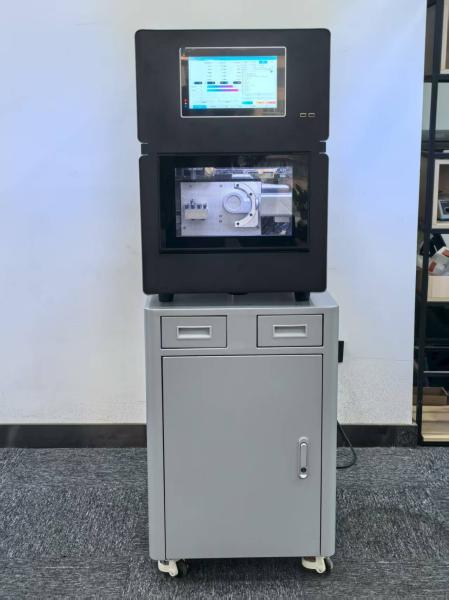

Designed specifically for space-constrained dental practices, this 5-axis simultaneous milling machine delivers lab-grade precision in a compact 470×618×710mm footprint. The 0.7KW high-frequency spindle achieves 60,000 RPM with ±1% speed stability, enabling efficient processing of zirconia, PMMA, and resin materials while maintaining exceptional surface finish quality. Its integrated touchscreen control simplifies complex workflows without requiring dedicated operator training.

Technical Innovations

  • True 5-Axis Kinematics: ±30° B-axis tilt enables undercut machining

  • Automated Tool Management: 4-tool carousel with RFID identification

  • Anterior Optimization: 90° vertical milling capability for natural esthetics

  • Chip Protection System: Prevents debris ingress in tool changer mechanism

  • Servo-Driven Precision: Dedicated motors on each axis ensure ±5μm accuracy

Critical Performance Advantages

FEATURE CLINICAL BENEFIT
60,000 RPM Spindle 18-min zirconia crowns
Sealed Milling Chamber Zero particulate contamination
220V Single-Phase No electrical upgrades required
Auto Recovery System Protects jobs during power loss

Material-Specific Capabilities

Material Recommended Use Tolerance Surface Finish
Zirconia Crowns/Bridges ±10 μm Ra 0.8 μm
PMMA Temporaries/Dentures ±20 μm Ra 1.2 μm
Resin Splints/Guides ±30 μm Ra 1.5 μm

Operational Workflow

  1. Setup: Load CAD design → Mount material puck (98mm max)

  2. Tool Selection: Automatic recognition of 4 pre-calibrated cutters

  3. Milling: 5-axis simultaneous processing with real-time monitoring

  4. Output: Finished restoration ready for characterization in 12-45 minutes

Preventative Maintenance
• Automatic lubrication cycle every 50 operating hours
• Spindle temperature monitoring with auto-shutdown
• Dust extraction port for HEPA filter integration

Technical Specifications

Parameter Specification
Milling Method Dry
Axis Configuration 5-axis simultaneous
Spindle Power 0.7 KW
Total Power 3 KW
Voltage 220V
Dimensions 470×618×710 mm
Warranty

1 year


Product Comparison Reference

Model Milling Type Tool Capacity Spindle Speed Footprint Ideal Setting
MEIERKANG Dry 4 tools 60,000 RPM 0.5m² Clinics
LT02 (Wet) Wet/Dry 10 tools 60,000 RPM 1.2m² Production Labs
A5 Three-in-One Hybrid 6 tools 60,000 RPM 0.8m² Clinics/Labs
