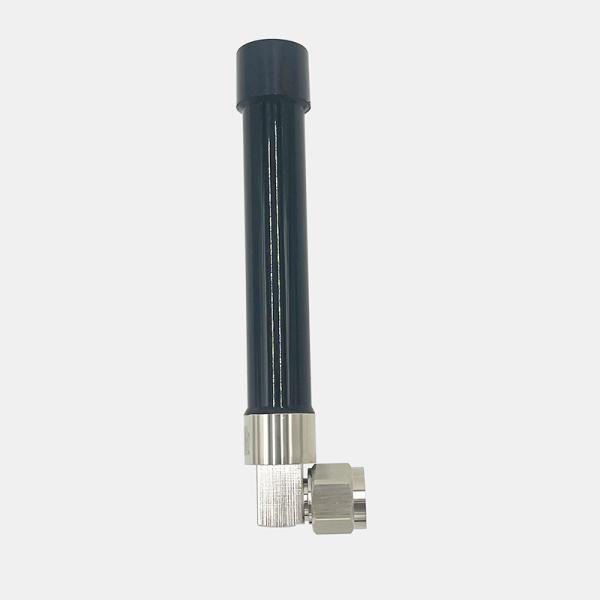

860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm
860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm
860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm
860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm
860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm
860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm
860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm
860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10862-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
860-930M
VSWR :
<2
Peak Gain :
2dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 860-930MHz
VSWR < 2.0
Efficiency ≈52%
Peak Gain 1.4-2dBi
Impedance 50 Ohm
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 29-48°
T90(H) roundness ±5.5
Max Power 50W
B. Material & Mechanical

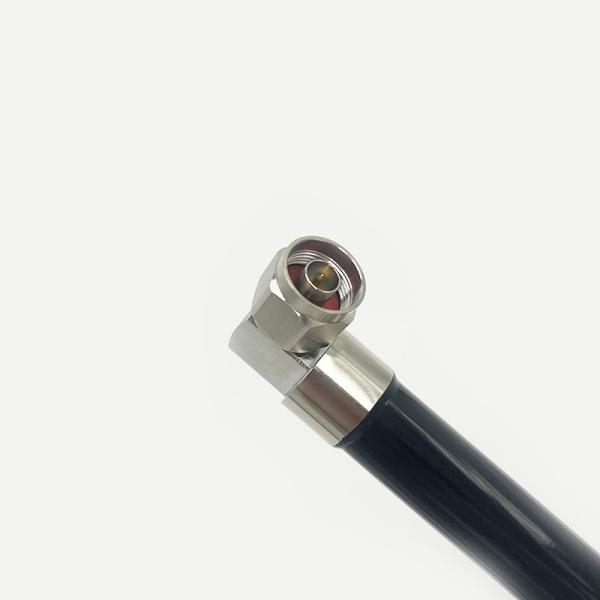

Connector Type N-JW
Dimension Φ20*150±5mm
Weight 0.11Kg

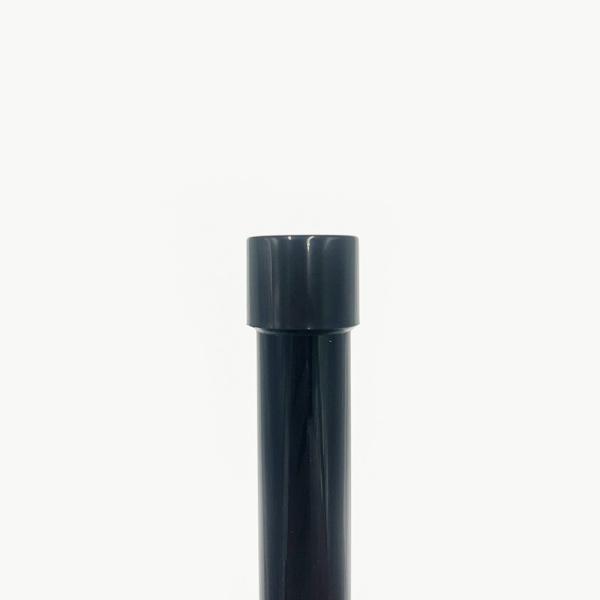

Radome material Fiberglass (black)

C. Environmental
Operation Temperature - 45˚C ~ +85 ˚C
Storage Temperature - 45˚C ~ +85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection Dc grounding


2. Antenna - S Parameter Test Data
2.1 VSWR
860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm

2.2 Total Efficiency & Gain:

Frequency(MHz) 860 870 880 890 900 910 920 930
Gain (dBi) 1.7 1.9 1.7 1.4 1.4 1.6 1.6 1.8
Efficiency (%) 53.9 55.8 53.4 51.2 49.5 50.1 49.8 51.1

860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
860MHz 860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm 860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm 860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm
900MHz 860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm 860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm 860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm
930MHz 860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm 860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm 860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm
