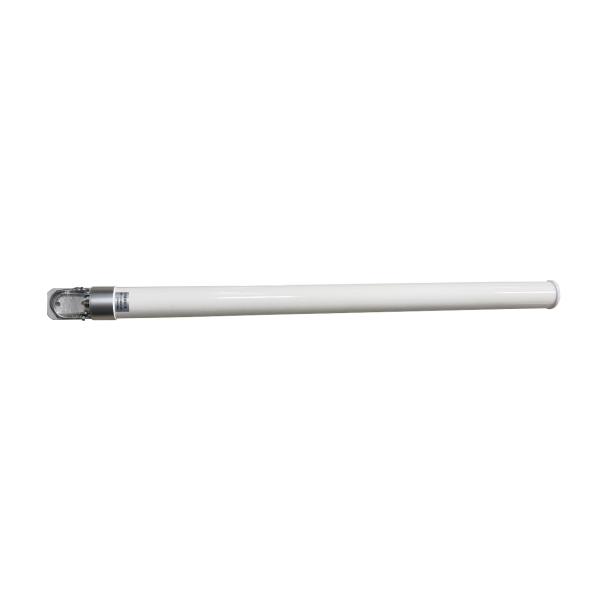

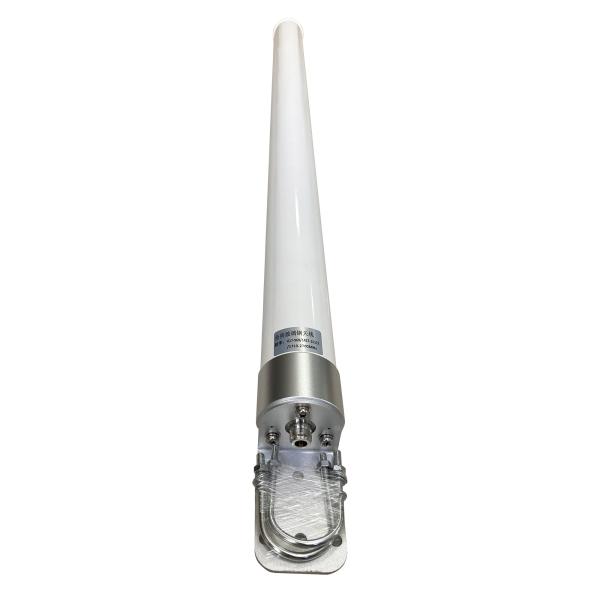

Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna 4G LTE 60x1000

1. Specification

A. Electrical Characteristics
Frequency 617-960MHz 1427-1517MHz 1710-2700MHz
S.W.R. <3.2 <3.2 <3.2
Antenna Gain 2.5dBi 5dBi 8dBi
Efficiency ≈70% ≈54% ≈69%
Polarization Linear Linear Linear
Horizontal Beamwidth 360° 360° 360°
Vertical Beamwidth 70°±30° 24°±2° 20°±10°
Impedance 50 Ohm 50 Ohm 50 Ohm
Max Power 50W 50W 50W

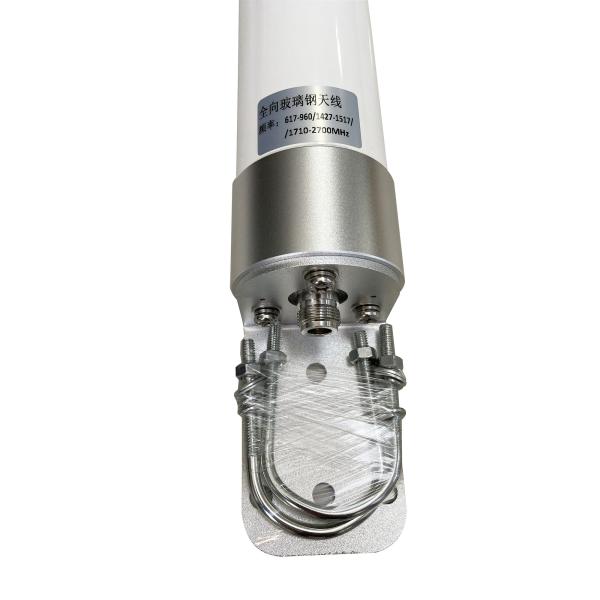

B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ60*1000mm
Weight 1.1Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data
2.1 VSWR

4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm

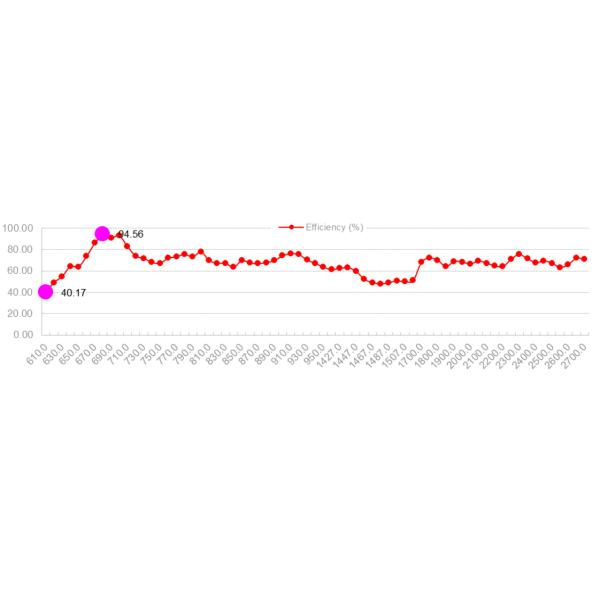

2.2 Total Efficiency & Gain:

Frequency(MHz) 610.0 620.0 630.0 640.0 650.0 660.0 670.0 680.0 690.0 700.0 710.0 720.0 730.0 740.0 750.0 760.0
Gain (dBi) -1.57 -0.13 1.11 2.79 3.15 2.03 2.02 2.30 2.28 2.74 2.50 0.65 0.31 0.72 1.28 1.94
Efficiency (%) 40.17 49.31 54.88 64.39 63.92 73.95 86.10 94.56 91.13 93.13 83.09 74.11 71.86 68.07 67.40 72.07
Frequency(MHz) 780.0 800.0 820.0 840.0 850.0 860.0 870.0 880.0 890.0 900.0 910.0 920.0 930.0 940.0 950.0 960.0
Gain (dBi) 1.68 1.79 1.46 1.13 1.31 1.52 1.61 1.44 1.76 2.23 2.61 2.66 2.18 1.72 1.59 1.76
Efficiency (%) 75.72 77.86 67.35 63.59 69.71 67.64 66.90 67.99 69.82 74.34 76.26 75.49 70.31 67.22 63.64 61.35
Frequency(MHz) 1427.0 1437.0 1447.0 1457.0 1467.0 1477.0 1487.0 1497.0 1507.0 1517.0
Gain (dBi) 4.44 4.73 4.84 4.48 4.26 3.93 3.85 3.95 3.85 3.87
Efficiency (%) 62.44 63.02 59.68 52.21 49.31 47.83 49.04 50.75 50.02 51.14
Frequency(MHz) 1700.0 1750.0 1800.0 1850.0 1900.0 1950.0 2000.0 2050.0 2100.0 2150.0 2200.0
Gain (dBi) 4.99 5.89 5.78 5.33 5.55 5.95 5.72 6.12 5.63 6.45 6.71
Efficiency (%) 68.18 72.33 70.17 64.21 68.99 68.55 66.65 69.46 67.34 65.00 64.10
Frequency(MHz) 2250.0 2300.0 2350.0 2400.0 2450.0 2500.0 2550.0 2600.0 2650.0 2700.0
Gain (dBi) 7.62 8.13 8.01 7.63 7.78 7.97 7.90 8.09 8.35 8.34
Efficiency (%) 71.29 75.53 71.47 67.92 69.52 67.32 63.37 66.22 72.11 71.09
4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm
2.3 Radiation Pattern

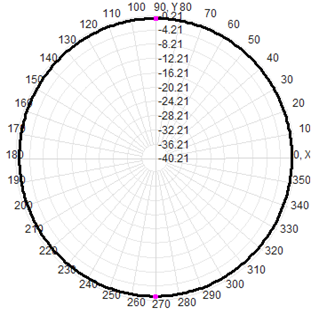

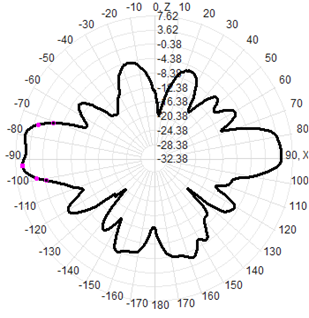

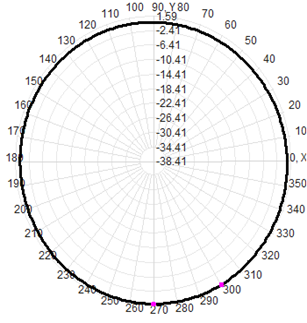

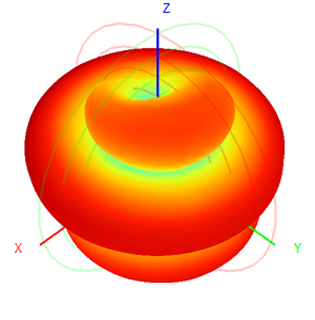

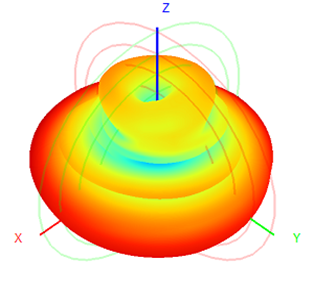

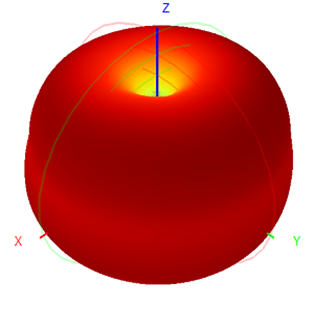

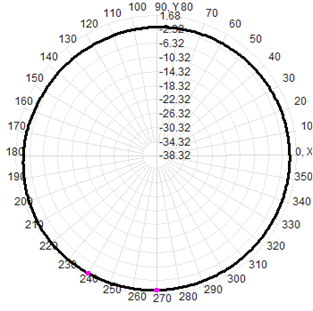

3D 2D-Horizontal 2D-Vertical

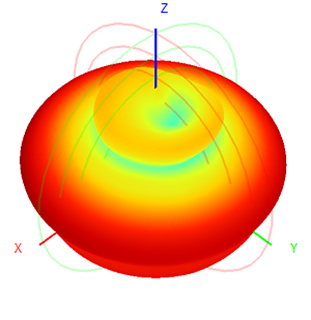

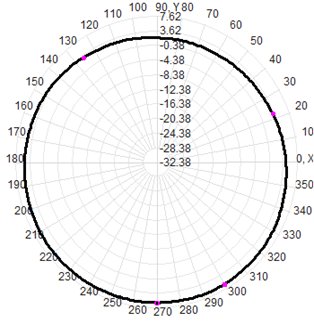

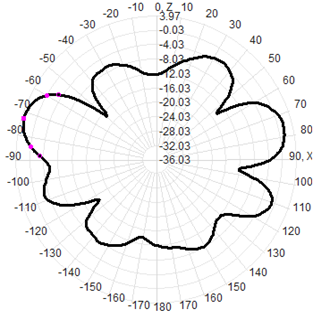

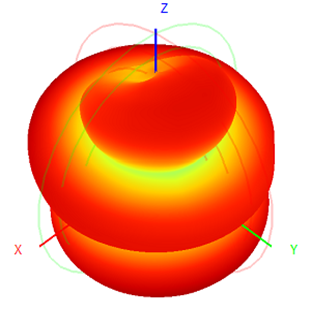

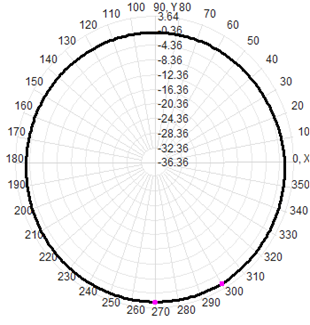

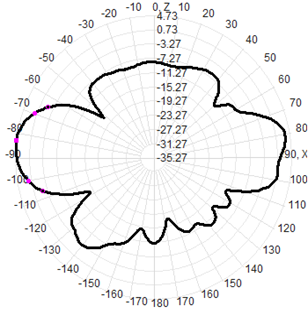

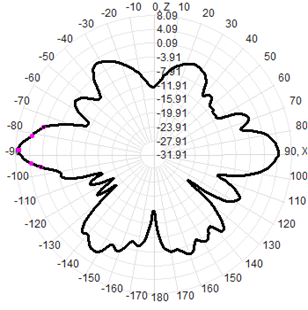

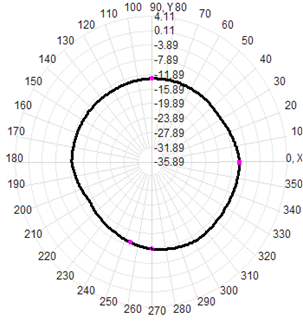

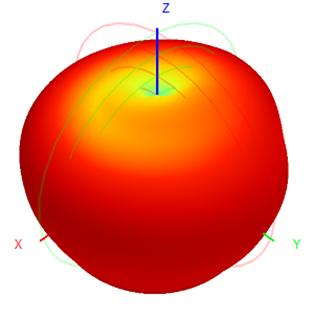

617MHz 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm

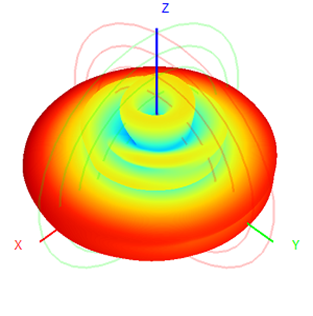

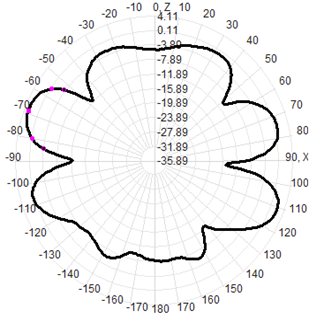

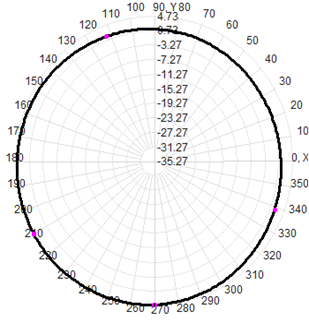

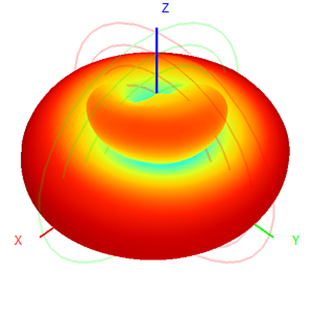

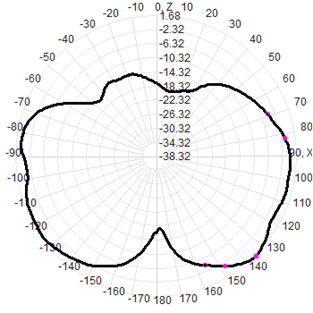

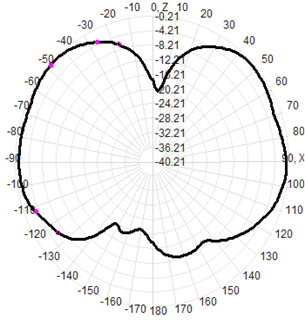

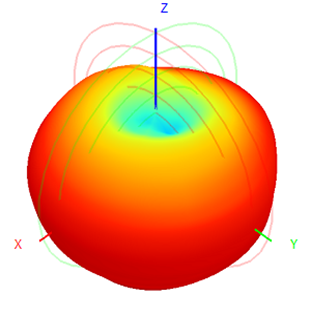

800MHz 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm

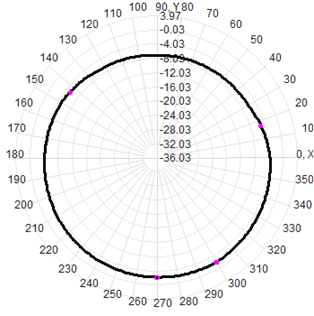

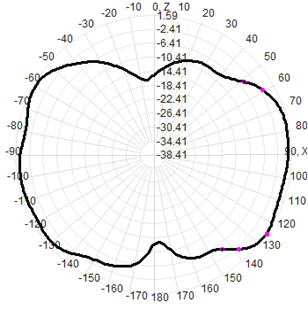

960MHz 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm
3D 2D-Horizontal 2D-Vertical

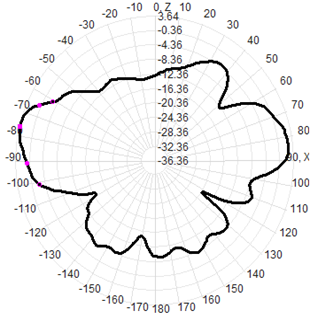

1427MHz 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm
1467MHz 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm
1517MHz 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm
3D 2D-Horizontal 2D-Vertical
1700MHz 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm
2250MHz 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm
2700MHz 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm
