Omni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway
Omni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway
Omni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway
Omni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway
Omni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway
Omni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway
Omni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway
Omni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway
Omni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway
Omni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10054-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
806-960/1710-2700M
VSWR :
<2
Peak Gain :
3.5/5dBi
Impedance :
50
Description

2G3G4G LTE GSM NB-Iot omnidirectional outdoor AP base station gateway with external waterproof fiberglass antenna
1. Specification

A. Electrical Characteristics
Frequency806-960MHz1710-2700MHz
Impedance50 Ohm50 Ohm
S.W.R.<2<2
Gain3.5dBi5dBi
Efficiency≈56%≈64%
PolarizationLinearLinear
Horizontal Beamwidth360°360°
Vertical Beamwidth77°28°
Max Power50W
B. Material & Mechanical Characteristics

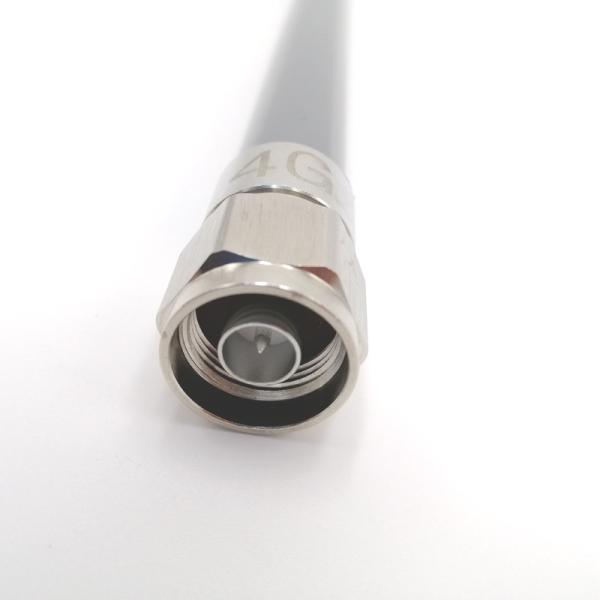

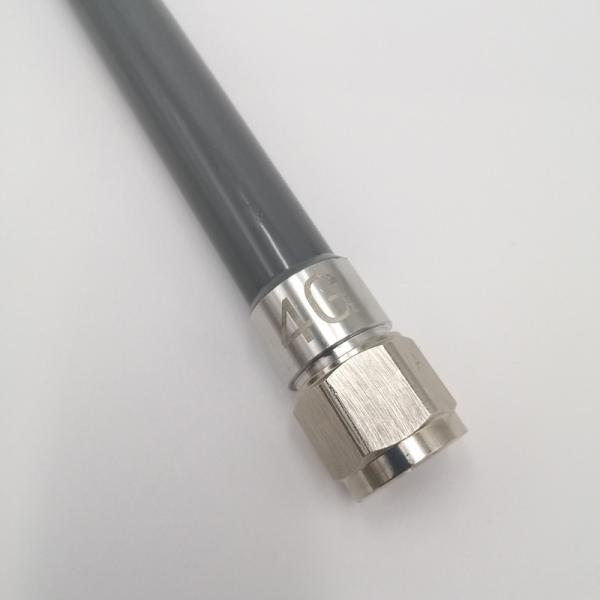

Connector TypeN Male
DimensionΦ20*250mm
Weight0.1Kg

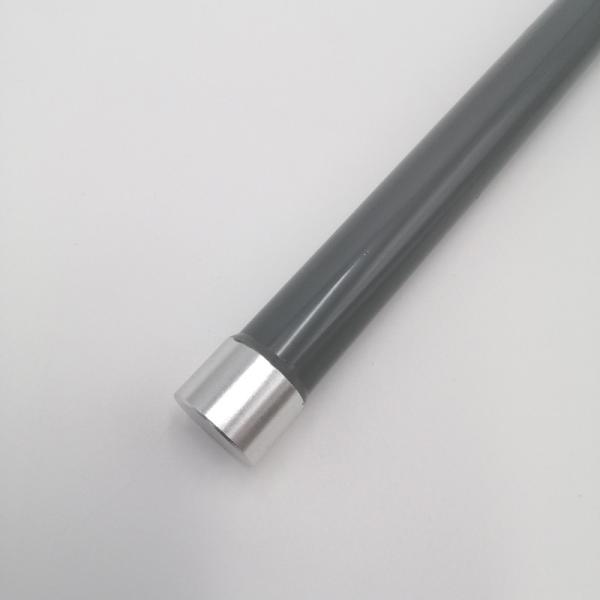

Radome materialFiberglass
C. Environmental
Operation Temperature- 40 ˚C ~ + 85˚C
Storage Temperature- 40 ˚C ~ + 85˚C


2. Antenna - S Parameter Test Data
2.1 VSWR
Omni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway

2.2 Total Efficiency & Gain:Omni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway

Frequency(MHz)800.0820.0840.0860.0880.0900.0920.0940.0960.0
Gain (dBi)1.101.511.391.362.082.212.883.313.39
Efficiency (%)75.6985.3778.6571.3775.3961.9662.0659.9055.56
Frequency(MHz)1710.01800.01890.01980.02070.02160.02250.02340.02430.02520.02610.02700.0
Gain (dBi)5.134.203.122.813.222.992.572.352.622.943.103.34
Efficiency (%)74.2270.6771.1768.4268.5774.1379.1272.7976.2577.8082.4476.90
2.3 Radiation Pattern
3D2D-Horizontal2D-Vertical
800MHzOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station GatewayOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station GatewayOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway
880MHzOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station GatewayOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station GatewayOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway
960MHzOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station GatewayOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station GatewayOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway

3D2D-Horizontal2D-Vertical
1710MHzOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station GatewayOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station GatewayOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway
2250MHzOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station GatewayOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station GatewayOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway
2700MHzOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station GatewayOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station GatewayOmni Antenna Outdoor 2G3G4G LTE GSM NB-Iot Omnidirectional Outdoor AP Base Station Gateway
