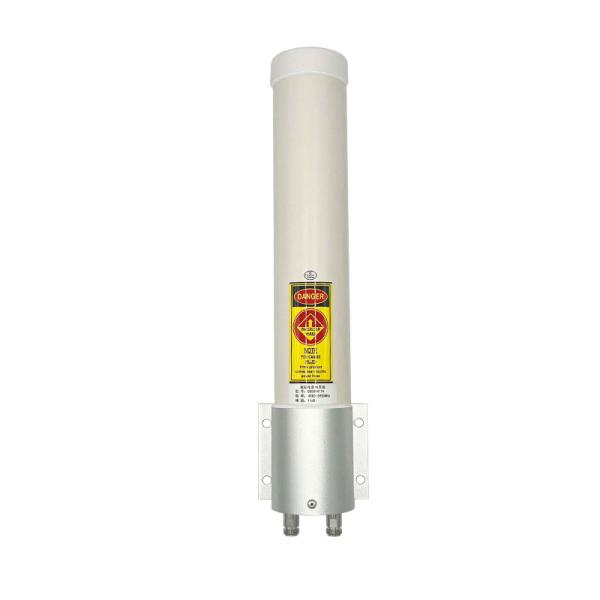

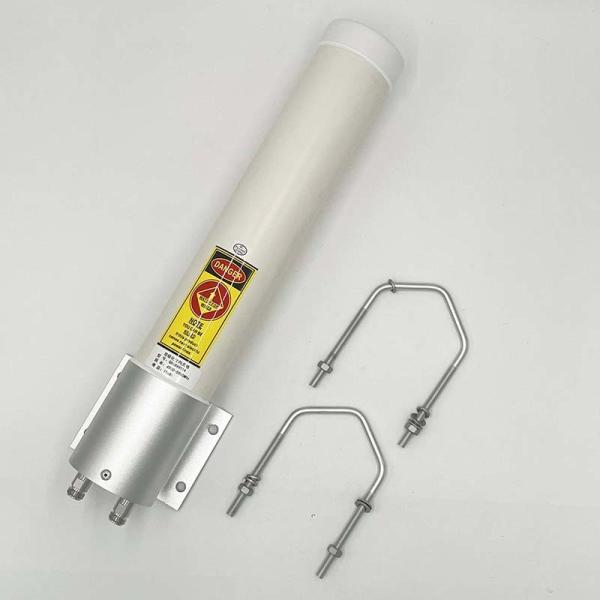

5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11859-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
4900-5900MHz
VSWR :
<2.5
Peak Gain :
11dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics

Frequency4900-5900MHz
VSWR< 2.5
Efficiency≈56%
Peak Gain11dBi
Impedance50 Ohm
PolarizationH+V
Horizontal Beamwidth360°
Vertical Beamwidth6-9°
T90(H) roundness±4
Max Power50W
B. Material & Mechanical

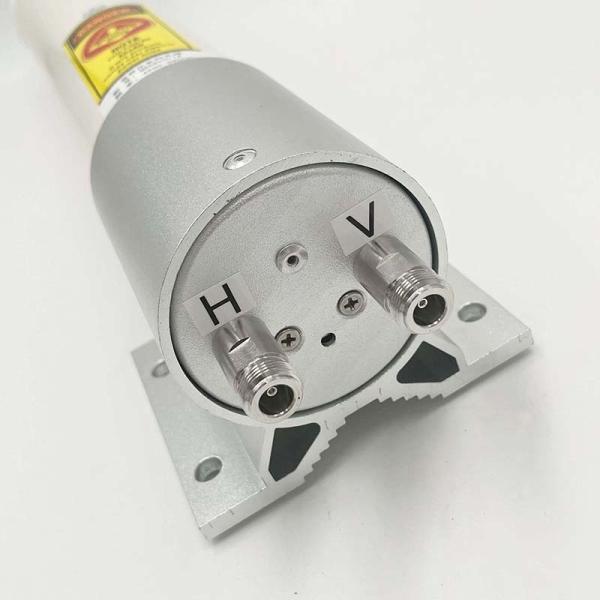

Connector TypeN-K*2
DimensionΦ77*465±5mm
Weight1.9Kg

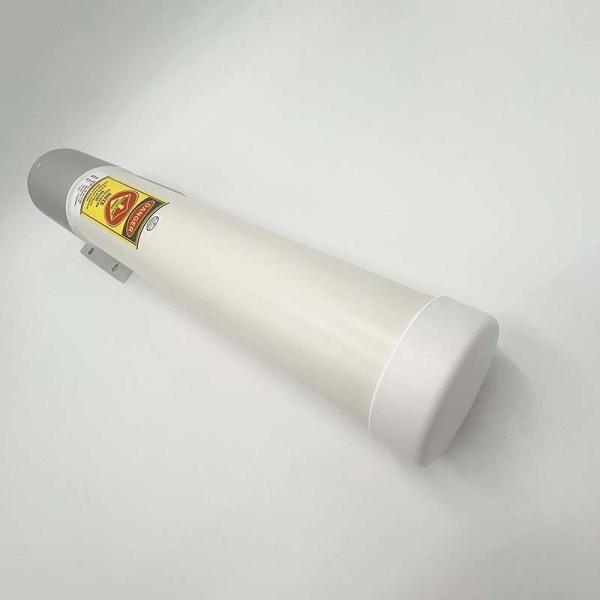

Radome material PVC(White)

C. Environmental

Operation Temperature- 45˚C ~ +85 ˚C
Storage Temperature- 45˚C ~ +85 ˚C
Rated Wind Velocity36.9m/s
Lighting ProtectionDc grounding

2. Antenna - S Parameter Test Data
2.1 VSWR
5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm

2.2 Total Efficiency & Gain:

Port 1(H) Port 2(V)
Frequency (MHz)Gain (dBi)Efficiency (%)Frequency (MHz)Gain (dBi)Efficiency (%)
49009.351.049007.346.1
50009.453.950008.557.7
51008.550.351008.253.3
52009.753.752008.857.9
53009.659.353009.461.5
540010.464.154009.064.6
550011.267.355009.770.9
560010.857.056008.557.6
570011.157.057008.851.0
58009.746.658009.958.4
590011.059.459009.352.2
2.3 Radiation Pattern

Port 1(H)
3D2D-Horizontal2D-Vertical
4900MHz5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
5400MHz5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
5900MHz5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
Port 2(V)
3D2D-Horizontal2D-Vertical
4900MHz5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
5400MHz5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
5900MHz5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
