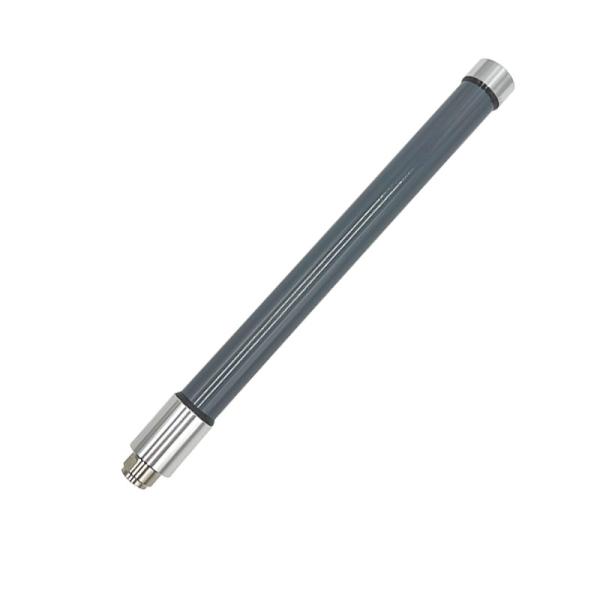

SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm
SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm
SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm
SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm
SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm
SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm
SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm
SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm
SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm
SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10145-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz
VSWR :
<2.0
Peak Gain :
4dBi
Impedance :
50
Description

2.4G 2dBi wifi Outdoor Antenna Omni Directional Antenna Fiber Glass antenna FRP Antenna WIFI Antenna 16x100mm

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 4dBi
Efficiency ≈83%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 40±5°
Max Power 50W
B. Material & Mechanical Characteristics

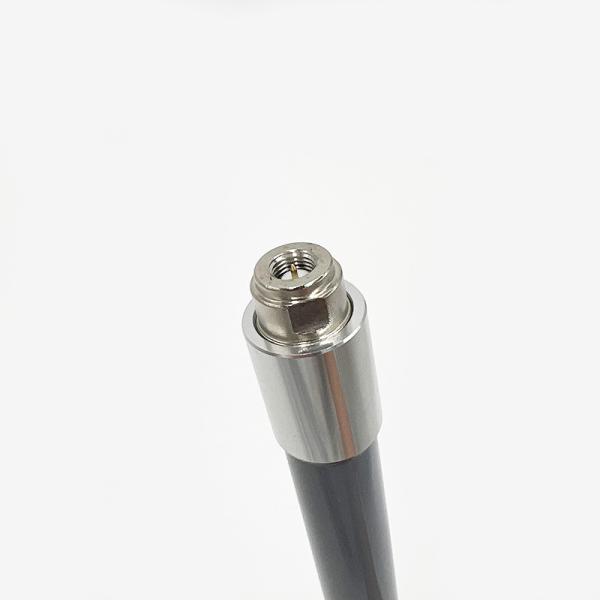

Connector Type SMA-J
Dimension Φ16*200mm
Weight 0.07Kg

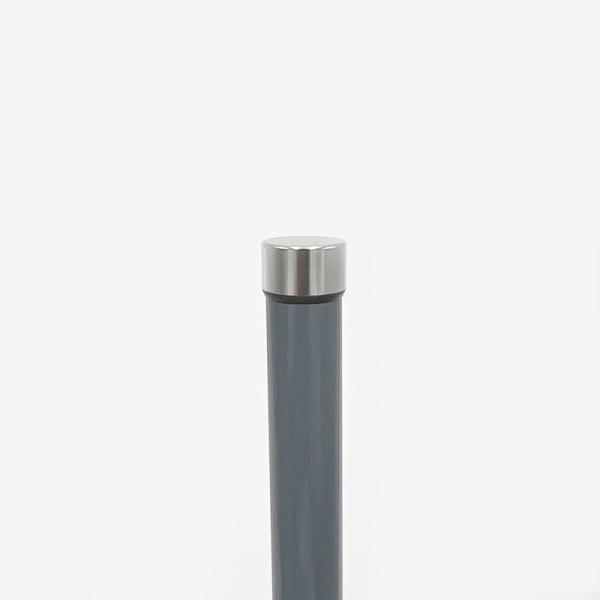

Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data

2.1 VSWR

SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm

2.2 Total Efficiency & Gain:

Frequency(MHz) 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0
Gain (dBi) 3.55 3.46 3.40 3.52 3.65 3.88 3.92 3.75 3.70 3.87 3.95
Efficiency (%) 85.28 83.29 81.27 81.46 82.37 85.62 85.62 83.05 80.72 82.40 84.25
SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
2400MHz SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm
2450MHz SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm
2500MHz SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm SMA Male 2.4G 4dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x200mm
