N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100
N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100
N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100
N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100
N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100
N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100
N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100
N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11888-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
1420-1450M
VSWR :
<2.0
Peak Gain :
7dBi
Impedance :
50
Description

2.1G2.4G3.5G5.8G Omnidirectional 150W drone jammer strike pressed FRP waterproof antenna

1. Specification

A. Electrical Characteristics
Frequency 1420-1450MHz(Customizable others)
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 7dBi
Efficiency ≈74%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 12±3°
Max Power 100W
B. Material & Mechanical Characteristics
Connector Type N - k
Dimension Φ25*1100mm
Colour white
Weight 0.56Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 45 ˚C ~ + 85 ˚C
Storage Temperature - 45 ˚C ~ + 85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data

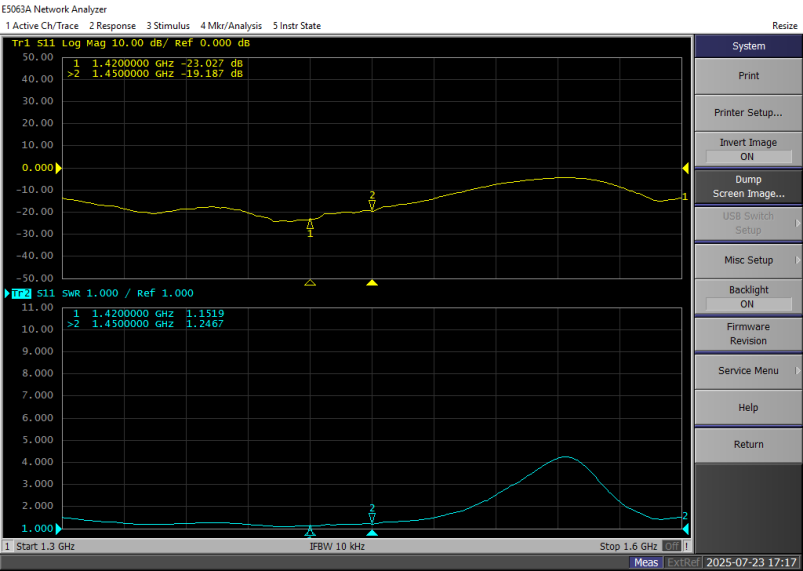

2.1 VSWR

N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100

2.2 Total Efficiency & Gain:

Frequency(MHz) 1420 1425 1430 1435 1440 1445 1450
Gain (dBi) 7.3 7.4 7.4 7.4 7.3 7.2 7.2
Efficiency (%) 74.6 75.5 74.8 74.2 73.3 70.7 70.9
N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100

2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
1420MHz N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100
N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100 N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100
1435MHz N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100 N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100 N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100
1450MHz N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100 N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100 N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100
