Specifications
Brand Name :
Leenz
Model Number :
LZANT-11885-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
650-680M
VSWR :
<2.0
Peak Gain :
9dBi
Impedance :
50
Description

2.1G2.4G3.5G5.8G Omnidirectional 150W drone jammer strike pressed FRP waterproof antenna

1. Specification

A. Electrical Characteristics
Frequency 650-680MHz(Customizable others)
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 9±1dBi
Efficiency ≈80%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 12±3°
Max Power 100W
B. Material & Mechanical Characteristics

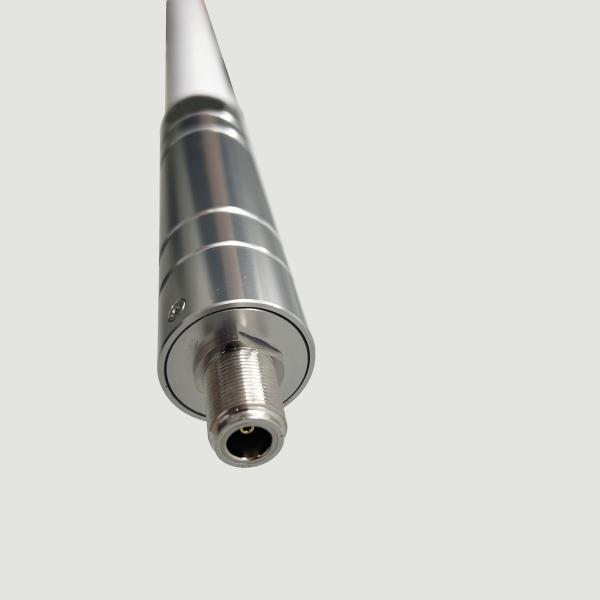

Connector Type N - k
Dimension Φ32*2400mm
Colour white
Weight 1.3Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 45 ˚C ~ + 85 ˚C
Storage Temperature - 45 ˚C ~ + 85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data

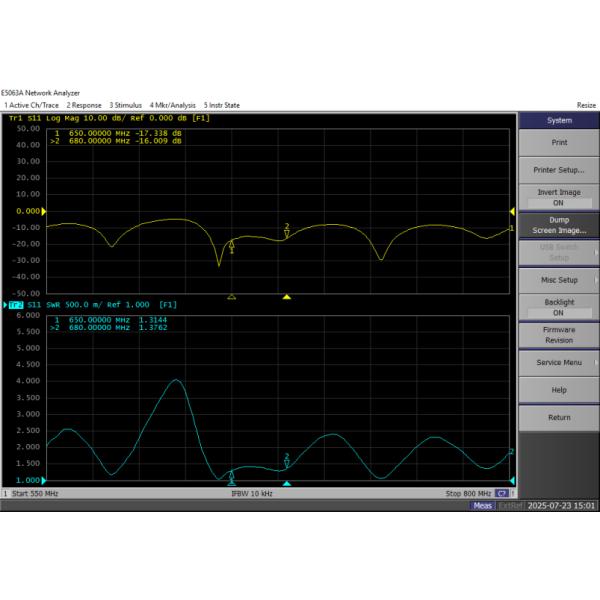

2.1 VSWR

N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400

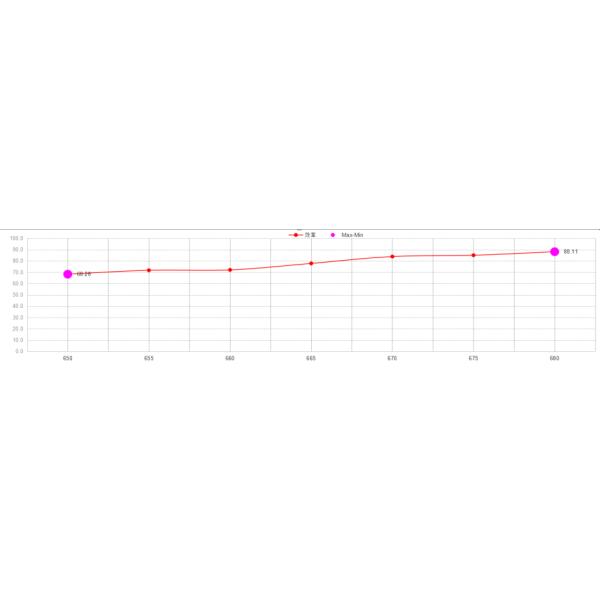

2.2 Total Efficiency & Gain:

Frequency(MHz) 650 655 660 665 670 675 680
Gain (dBi) 6.6 6.9 6.9 7.3 7.8 7.9 8.1
Efficiency (%) 68.3 71.7 72.1 77.8 83.8 85.0 88.1
N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400

2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
650MHz N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400
N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400 N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400
665MHz N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400 N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400 N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400
680MHz N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400 N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400 N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400
