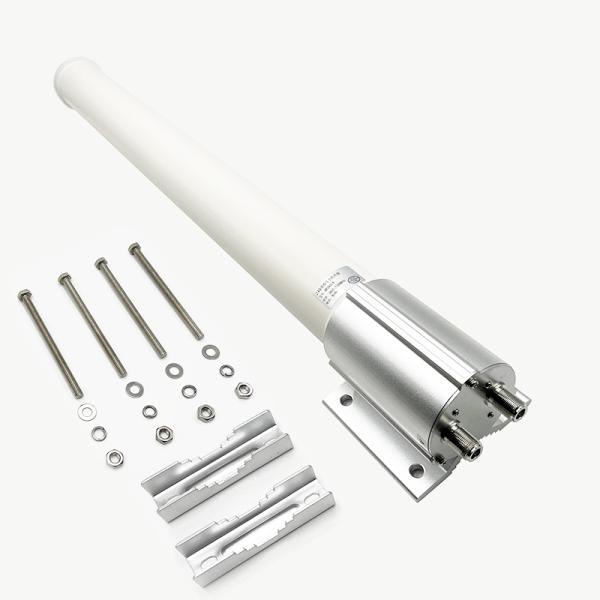

5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm
5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm
5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm
5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm
5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm
5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm
5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm
5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm
5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm
5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10825-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
5150-5850MHz
VSWR :
<2.0
Peak Gain :
12dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 5150-5850MHz
VSWR < 2.0
Efficiency ≈83%
Peak Gain 12dBi
Impedance 50 Ohm
Polarization H+V
Horizontal Beamwidth 360°
Vertical Beamwidth 8-19°
T90(H) roundness ±5
Max Power 50W
B. Material & Mechanical
Connector Type N-K*2
Dimension Φ72*600±5mm
Weight 2.1Kg
Radome material Fiberglass(White)

C. Environmental
Operation Temperature - 45˚C ~ +85 ˚C
Storage Temperature - 45˚C ~ +85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection Dc grounding

2. Antenna - S Parameter Test Data

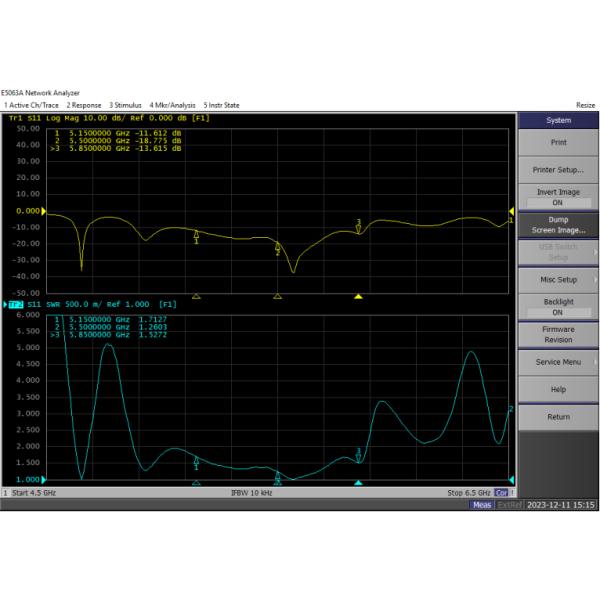

2.1 VSWR
5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm

2.2 Total Efficiency & Gain:

Port 1(H) Port 2(V)
Frequency (MHz) Gain (dBi) Efficiency (%) Frequency (MHz) Gain (dBi) Efficiency (%)
4900 9.4 71.2 4900 8.7 58.3
5000 10.1 76.6 5000 9.1 63.9
5100 10.4 74.0 5100 9.5 69.9
5200 10.7 73.7 5200 9.9 69.1
5300 11.2 81.1 5300 10.1 75.2
5400 11.8 85.6 5400 9.8 69.3
5500 12.0 85.9 5500 9.7 68.9
5600 12.0 89.1 5600 9.4 66.9
5700 11.8 87.6 5700 8.7 62.3
5800 11.2 87.7 5800 9.8 68.0
5900 7.0 51.9 5900 10.8 75.6
6000 9.6 63.4 6000 9.3 66.7
2.3 Radiation Pattern

Port 1(H)
3D 2D-Horizontal 2D-Vertical
5150MHz 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm
5500MHz 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm
5850MHz 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm
Port 2(V)
3D 2D-Horizontal 2D-Vertical
5150MHz 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm
5500MHz 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm
5850MHz 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm 5.8G 5150-5850M 12dBi dual-polarization omnidirectional WIFI antenna 72x600mm
