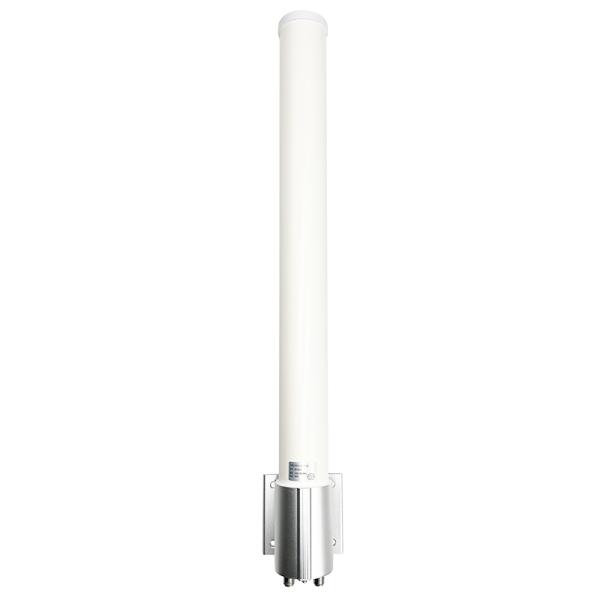

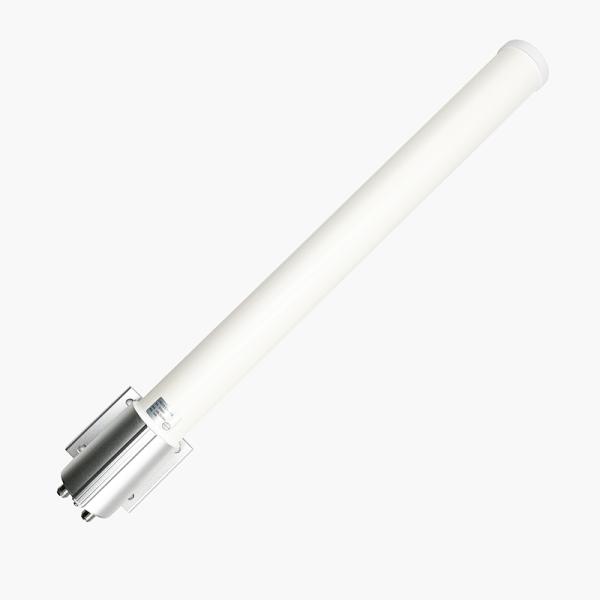

2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10826-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
2400-2500MHz
VSWR :
<2.0
Peak Gain :
8dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics

Frequency2400-2500MHz
VSWR< 2.0
Efficiency≈66%
Peak Gain8dBi
Impedance50 Ohm
PolarizationH+V
Horizontal Beamwidth360°
Vertical Beamwidth11-15°
T90(H) roundness±5
Max Power50W

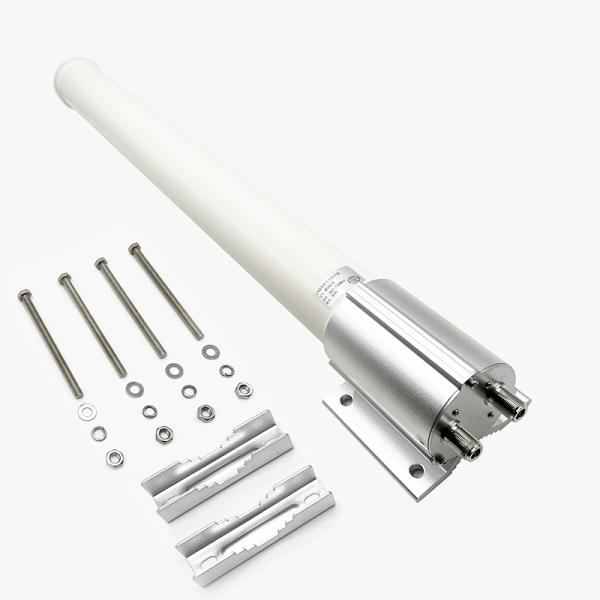

B. Material & Mechanical
Connector TypeN-K*2
DimensionΦ72*800±5mm
Weight2.8Kg
Radome material Fiberglass(White)

C. Environmental

Operation Temperature- 45˚C ~ +85 ˚C
Storage Temperature- 45˚C ~ +85 ˚C
Rated Wind Velocity36.9m/s
Lighting ProtectionDc grounding

2. Antenna - S Parameter Test Data
2.1 VSWR
2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm

2.2 Total Efficiency & Gain:

Port 1(H) Port 2(V)
Frequency (MHz)Gain (dBi)Efficiency (%)Frequency (MHz)Gain (dBi)Efficiency (%)
24006.468.024007.464.5
24106.366.824108.064.3
24206.367.424208.666.4
24306.368.624309.170.4
24406.067.424409.171.6
24505.765.124509.172.6
24605.565.624609.174.5
24705.367.424708.976.4
24804.866.324808.574.7
24904.263.724908.372.6
25003.662.425008.773.3
2.3 Radiation Pattern

Port 1(H)
3D2D-Horizontal2D-Vertical
2400MHz2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
2450MHz2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
2500MHz2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
Port 2(V)
3D2D-Horizontal2D-Vertical
2400MHz2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
2450MHz2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
2500MHz2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
