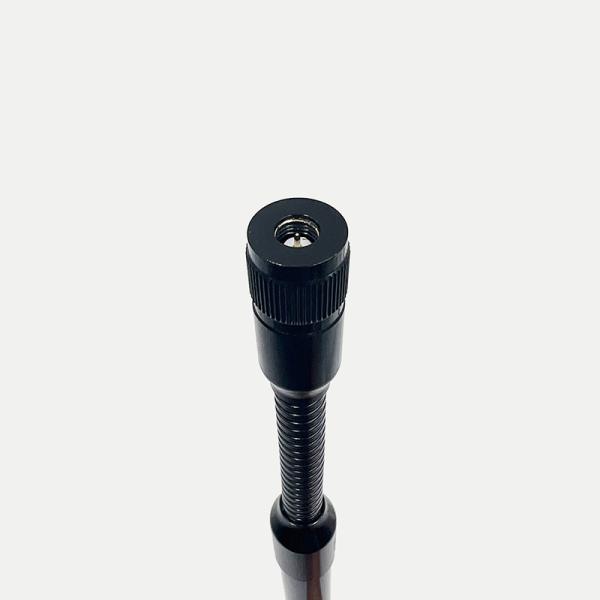

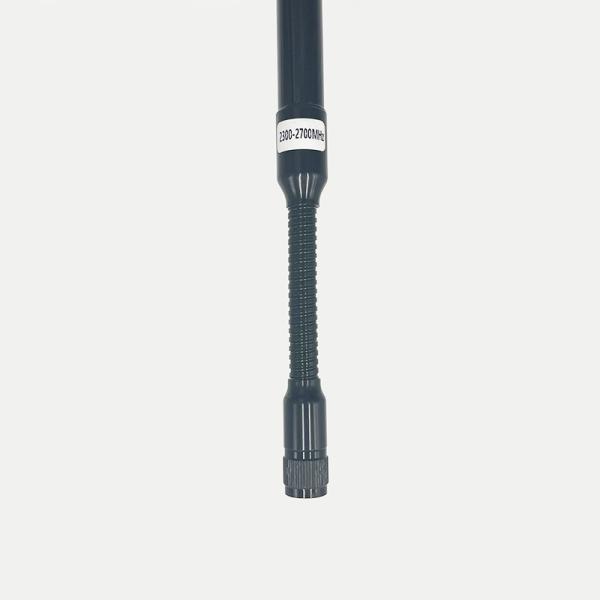

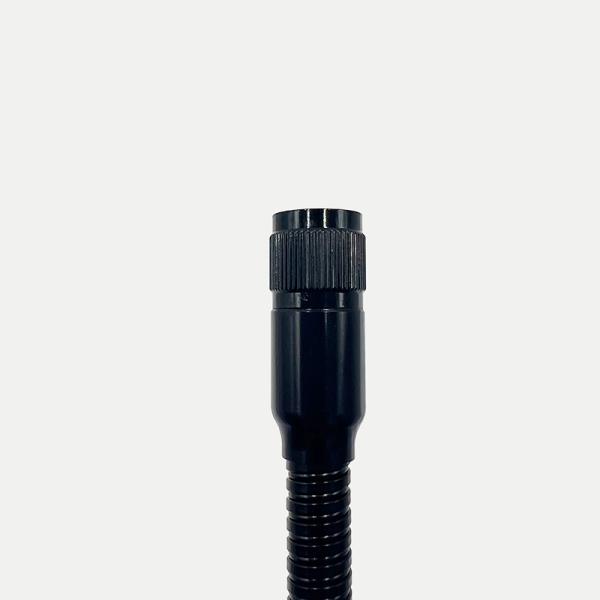

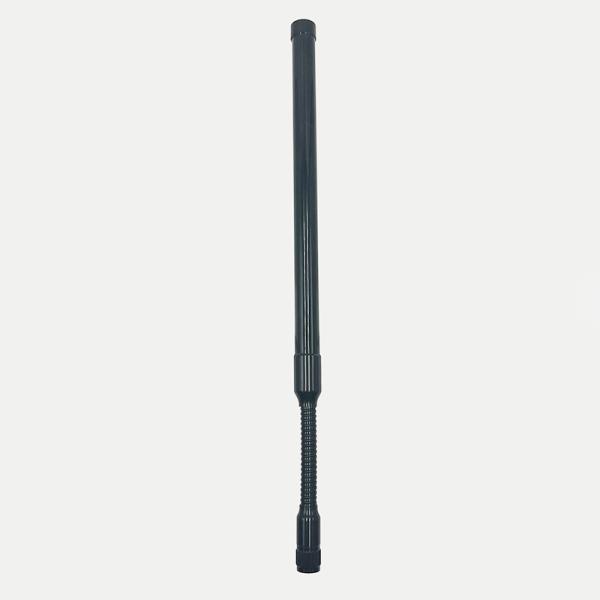

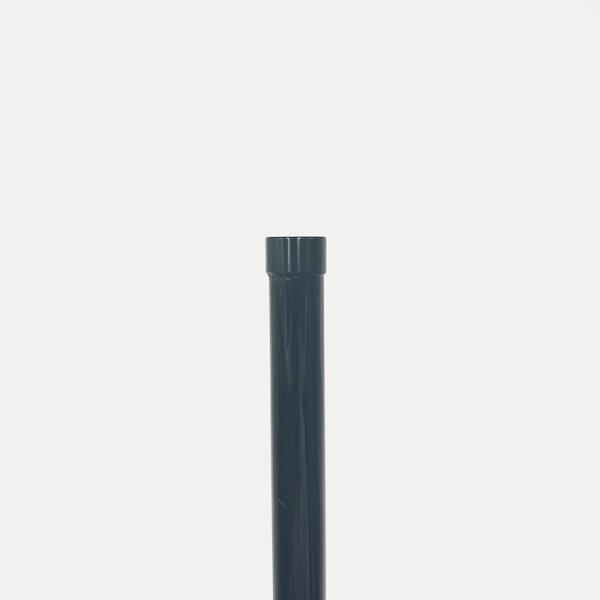

4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11908-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
2300-2700MHz
VSWR :
<2.0
Peak Gain :
4dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 2300-2700MHz
VSWR < 2.0
Efficiency ≈73%
Peak Gain 4dBi
Impedance 50 Ohm
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 30±5°
T90(H) roundness ±0.5
Max Power 50W
B. Material & Mechanical
Connector Type N-J
Dimension Φ16*350±3mm
Weight 0.13Kg
Radome material Fiberglass (Black)

C. Environmental
Operation Temperature - 45˚C ~ +85 ˚C
Storage Temperature - 45˚C ~ +85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection Dc grounding

2. Antenna - S Parameter Test Data
2.1 VSWR
4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm

2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi) Efficiency(%)
2300 4.2 76.8
2350 3.6 72.4
2400 3.8 72.9
2450 3.9 72.7
2500 4.0 75.0
2550 3.5 68.2
2600 3.9 69.6
2650 4.2 75.8
2700 3.8 72.1
2.3 Radiation Pattern

3D 2D-Horizontal 2D-Vertical
2300MHz 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
2500MHz 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
2700MHz 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
