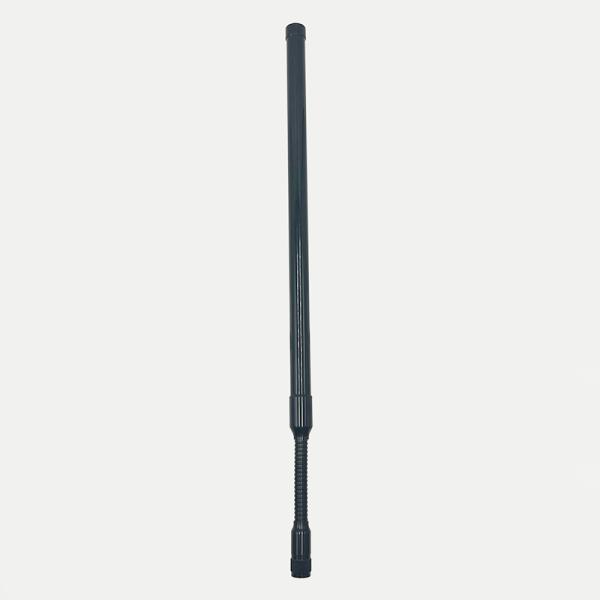

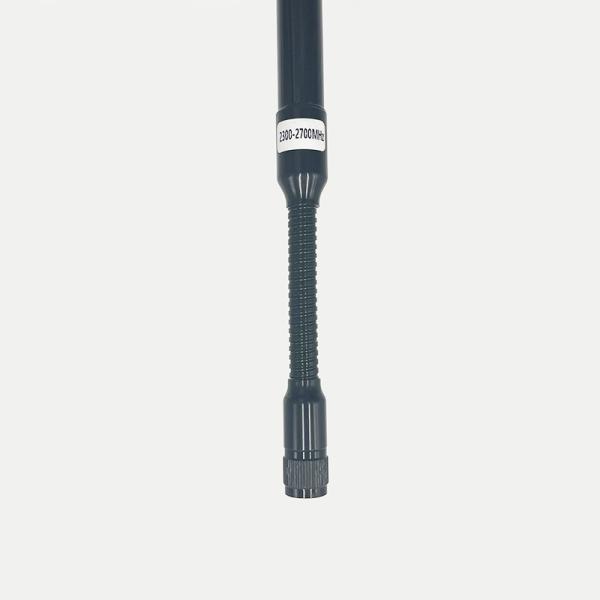

6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11909-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
2300-2700MHz
VSWR :
<2.0
Peak Gain :
6dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 2300-2700MHz
VSWR < 2.0
Efficiency ≈74%
Peak Gain 6dBi
Impedance 50 Ohm
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 20±3°
T90(H) roundness ±1
Max Power 50W
B. Material & Mechanical

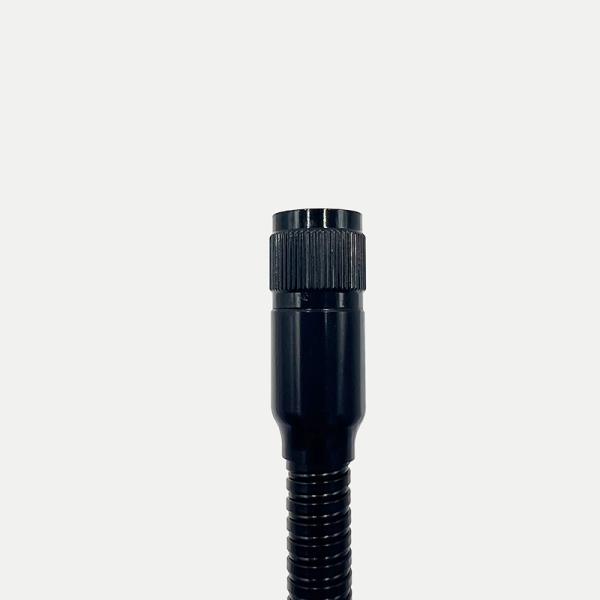

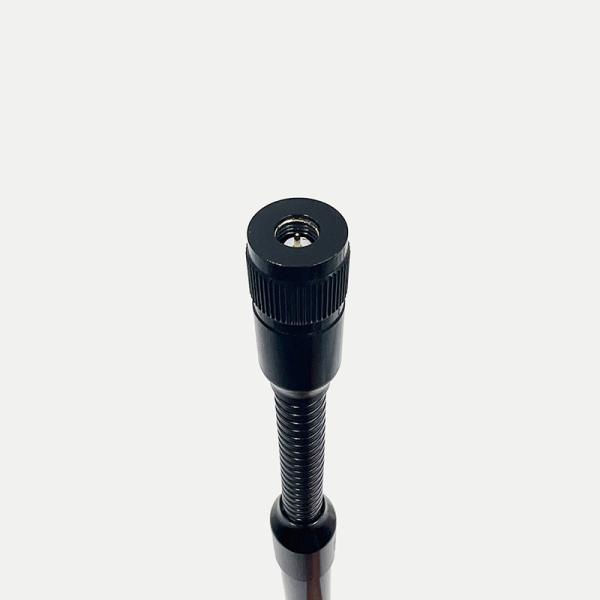

Connector Type N-J
Dimension Φ16*440±3mm
Weight 0.16Kg

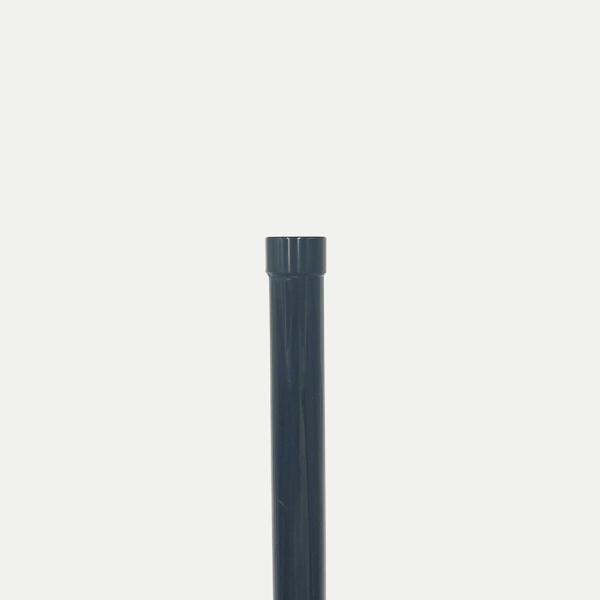

Radome material Fiberglass (Black)

C. Environmental
Operation Temperature - 45˚C ~ +85 ˚C
Storage Temperature - 45˚C ~ +85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection Dc grounding

2. Antenna - S Parameter Test Data

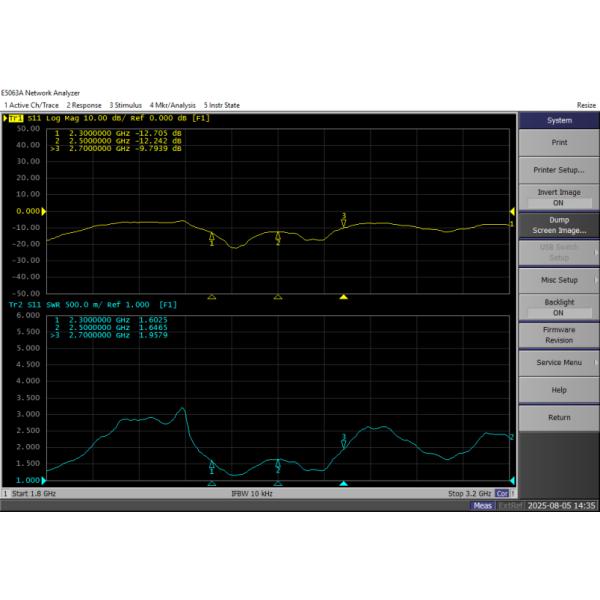

2.1 VSWR
6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm

2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi) Efficiency(%)
2300 5.1 73.0
2350 5.3 74.0
2400 5.7 75.7
2450 5.9 76.8
2500 5.9 77.7
2550 5.4 69.1
2600 5.6 71.1
2650 5.7 76.7
2700 5.3 69.8
2.3 Radiation Pattern

3D 2D-Horizontal 2D-Vertical
2300MHz 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
2500MHz 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
2700MHz 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
