5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band
5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band
5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band
5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band
5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band
5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band
5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band
5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band
5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band
5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10188-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
2400-2500/5150-5850MHz
VSWR :
<2.0
Peak Gain :
5dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics

Frequency2400-2500/5150-5850MHz
VSWR< 2.0
Efficiency≈78%
Peak Gain5dBi
Impedance50 Ohm
PolarizationLinear
Horizontal Beamwidth360°
Vertical Beamwidth20±5°
T90(H) roundness±3
Max Power50W
B. Material & Mechanical
Connector TypeN-J
DimensionΦ20*350±3mm
Weight0.12Kg
Radome materialFiberglass (Grey)

C. Environmental

Operation Temperature- 45˚C ~ +85 ˚C
Storage Temperature- 45˚C ~ +85 ˚C
Rated Wind Velocity36.9m/s
Lighting ProtectionDc grounding

2. Antenna - S Parameter Test Data

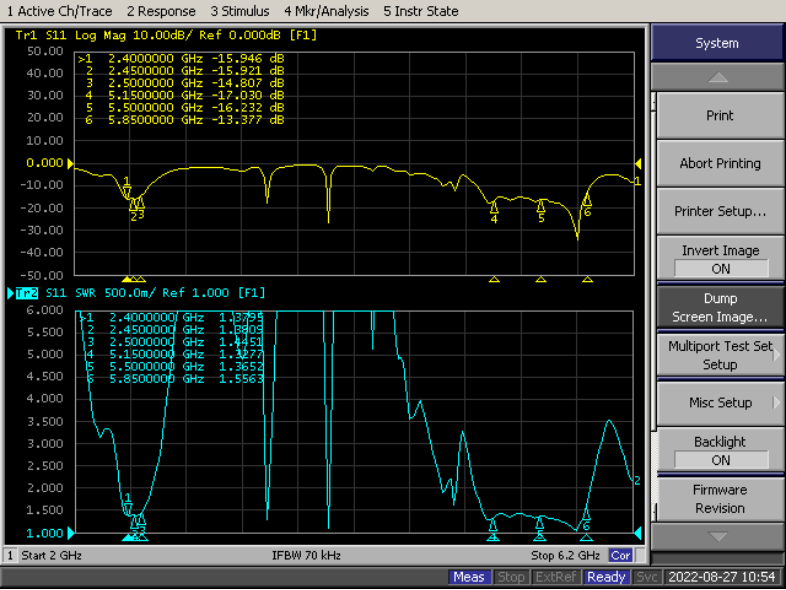

2.1 VSWR
5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band

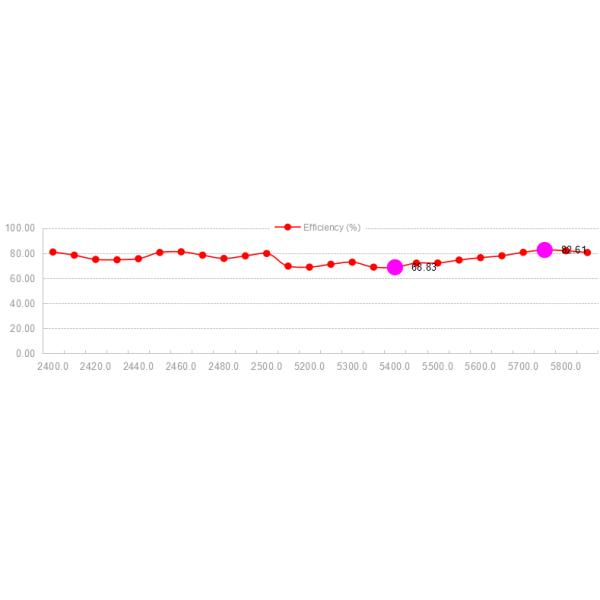

2.2 Total Efficiency & Gain:

Frequency(MHz)2400.02410.02420.02430.02440.02450.02460.02470.02480.02490.02500.0
Gain (dBi)4.544.384.114.023.934.174.194.073.823.843.98
Efficiency (%)80.9978.4775.0874.8275.6680.6381.1478.4875.8577.9079.82
Frequency(MHz)515052005250530053505400545055005550560056505700575058005850
Gain (dBi)4.444.334.174.184.204.394.754.514.103.823.684.064.244.675.30
Efficiency (%)69.7668.9471.1972.8868.9368.8372.1672.2374.5976.4677.9980.7182.6181.9980.57
5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band
2.3 Radiation Pattern

3D2D-Horizontal2D-Vertical
2400MHz5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band
2450MHz5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band
2500MHz5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band
3D2D-Horizontal2D-Vertical
5150MHz5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band
5550MHz5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band
5850MHz5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band5dBi Outdoor Fiberglass WiFi Antenna 2.4G 5.8G Dual Band
