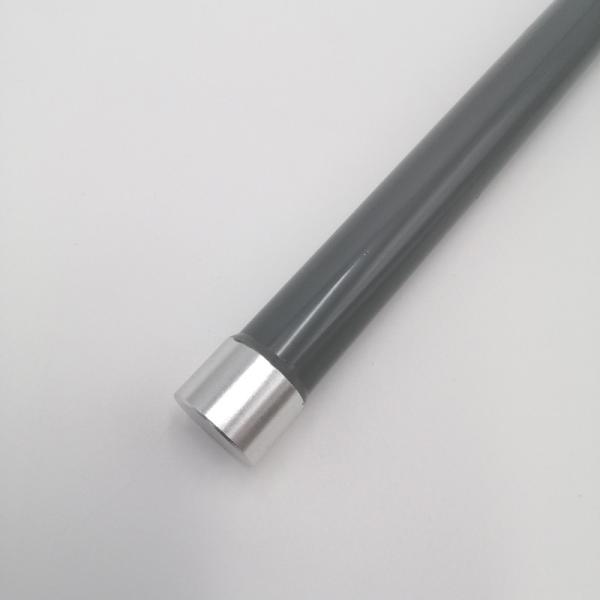

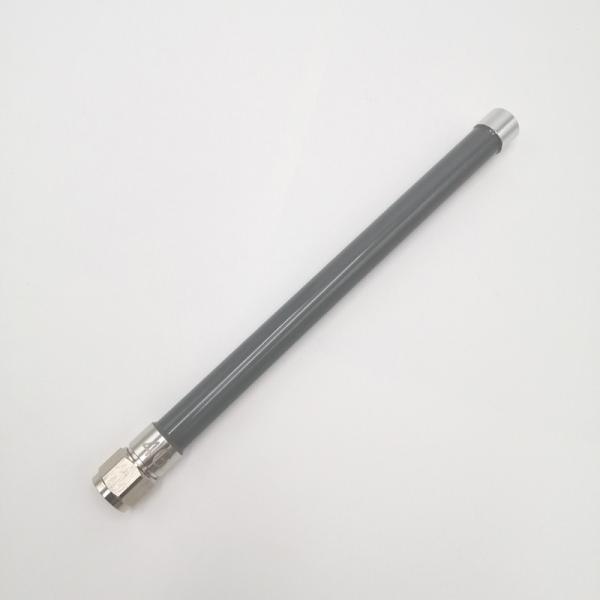

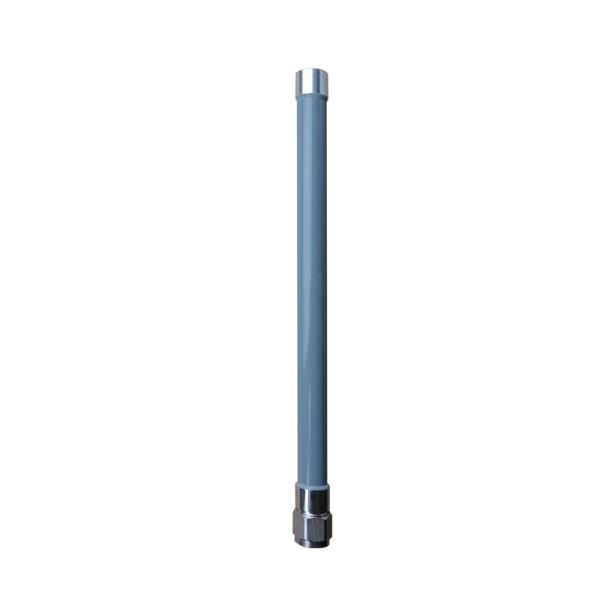

2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm
2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm
2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm
2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm
2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm
2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm
2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm
2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10733-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz
VSWR :
<2.0
Peak Gain :
5dBi
Impedance :
50
Description

Omni Antenna Fiber Glass antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 5dBi
Efficiency ≈85%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 35±5°
Max Power 50W
B. Material & Mechanical Characteristics

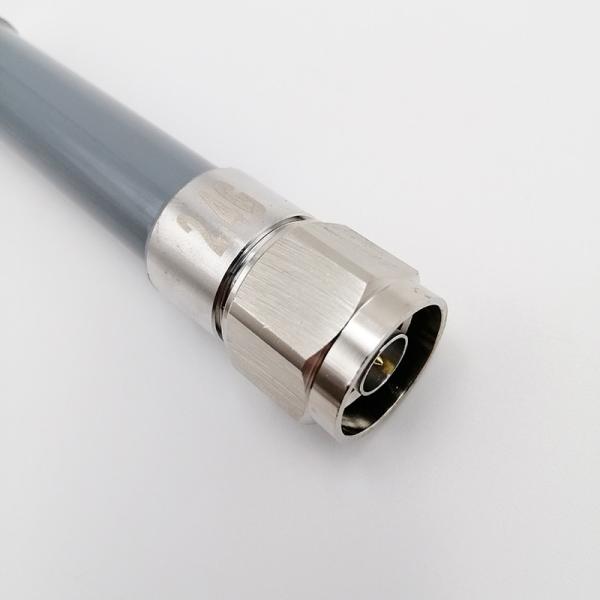

Connector Type N -J connector
Dimension Φ16*250mm
Weight 0.1Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data

2.1 VSWR

2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm

2.2 Total Efficiency & Gain:

Frequency(MHz) 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0
Gain (dBi) 4.12 4.05 3.96 4.00 4.55 4.70 4.42 4.19 4.08 4.18 4.26
Efficiency (%) 88.82 86.49 83.27 81.93 84.80 88.15 88.72 85.21 83.16 84.81 87.48
2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
2400MHz 2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm 2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm 2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm
2450MHz 2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm 2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm 2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm
2500MHz 2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm 2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm 2.4GHz 5dBi Fiberglass Omnidirectional WiFi Antenna 16x250mm
