6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm
6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm
6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm
6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm
6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm
6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm
6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm
6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10347-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz
VSWR :
<2.0
Peak Gain :
6dBi
Impedance :
50
Description

Omni Antenna Fiber Glass antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 6dBi
Efficiency ≈83%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 25±5°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N -J connector
Dimension Φ20*350mm
Weight 0.123Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data

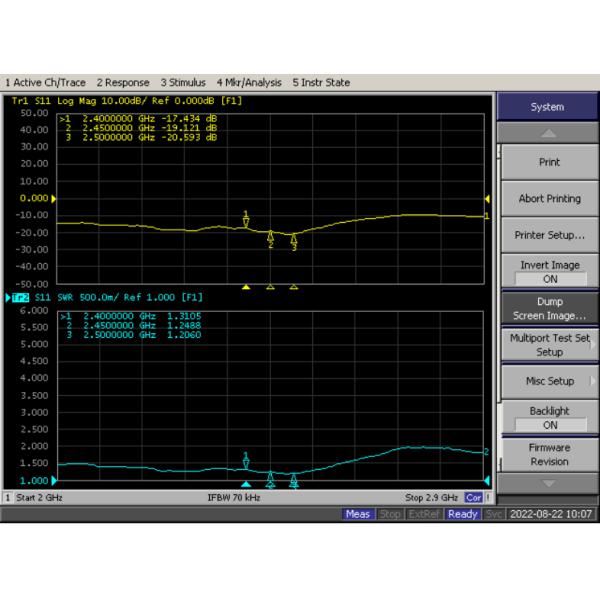

2.1 VSWR

6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm

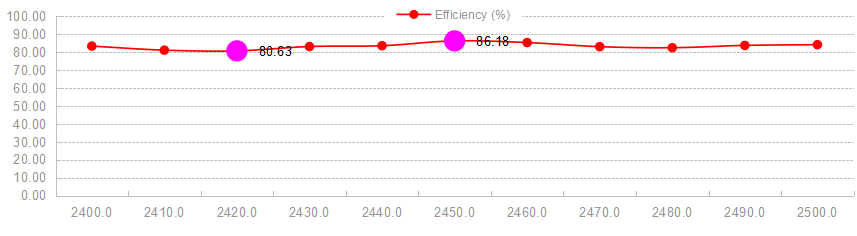

2.2 Total Efficiency & Gain:

Frequency(MHz) 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0
Gain (dBi) 5.72 5.65 5.64 5.76 5.72 5.82 5.81 5.73 5.64 5.69 5.74
Efficiency (%) 83.28 81.03 80.63 83.03 83.49 86.18 85.25 82.97 82.38 83.67 84.07

6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm

2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
2400MHz

6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm

 6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm 6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm
2450MHz 6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm 6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm 6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm
2500MHz 6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm 6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm 6dBi 2.4GHz Fiberglass Omnidirectional WiFi Antenna 20x350mm
