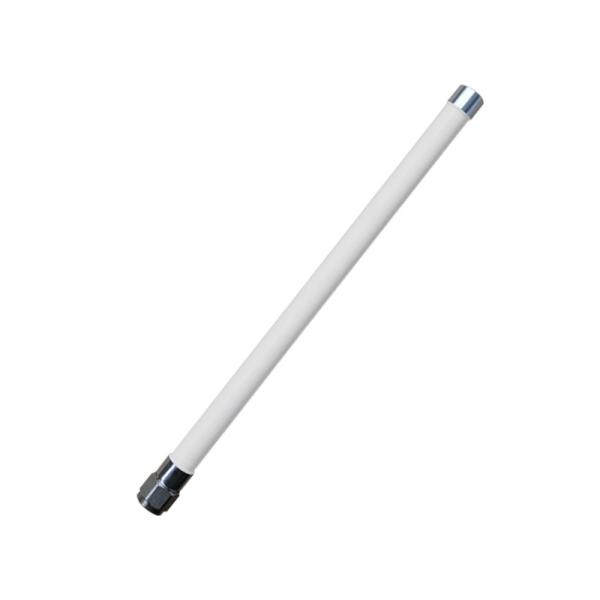

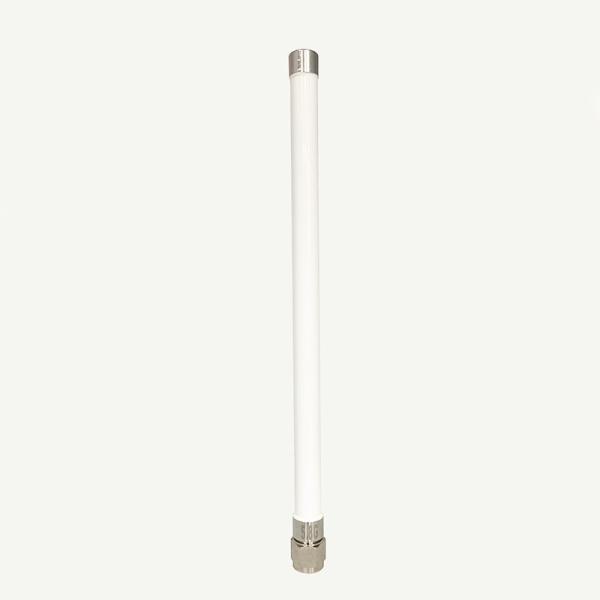

5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz
5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz
5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz
5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz
5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz
5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz
5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz
5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10411-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
5150-5850MHz
VSWR :
<2.0
Peak Gain :
9dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 5150-5850MHz
VSWR < 2.0
Efficiency ≈70%
Peak Gain 9dBi
Impedance 50 Ohm
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 15±5°
T90(H) roundness ±2
Max Power 50W
B. Material & Mechanical

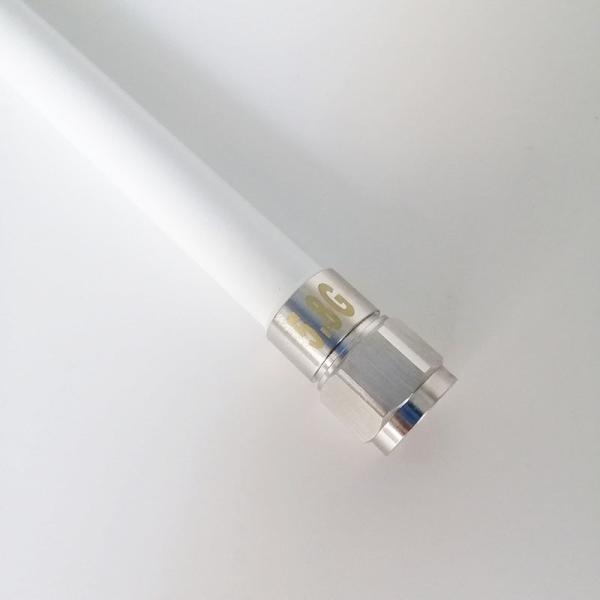

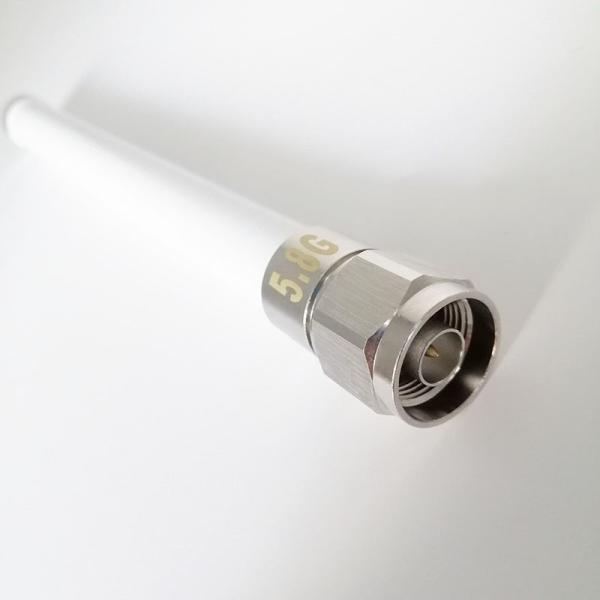

Connector Type N-J
Dimension Φ16*300±3mm
Weight 0.1Kg
Radome material Fiberglass (Grey)

C. Environmental
Operation Temperature - 45˚C ~ +85 ˚C
Storage Temperature - 45˚C ~ +85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection Dc grounding

2. Antenna - S Parameter Test Data
2.1 VSWR
5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz

2.2 Total Efficiency & Gain:

Frequency(MHz) 5150 5200 5250 5300 5350 5400 5450 5500 5550 5600 5650 5700 5750 5800 5850
Gain (dBi) 8.13 7.58 7.41 7.71 7.52 7.19 7.21 7.70 8.07 8.50 8.76 9.18 9.12 9.14 9.51
Efficiency (%) 66.24 59.25 59.92 69.26 68.08 68.27 70.70 67.14 66.26 69.03 71.68 77.47 76.62 77.82 79.60

5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz

2.3 Radiation Pattern

3D 2D-Horizontal 2D-Vertical
5150MHz 5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz 5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz 5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz
5550MHz 5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz 5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz 5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz
5850MHz 5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz 5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz 5.8GHz 9dBi Fiberglass Omnidirectional Antenna 5150-5850MHz
