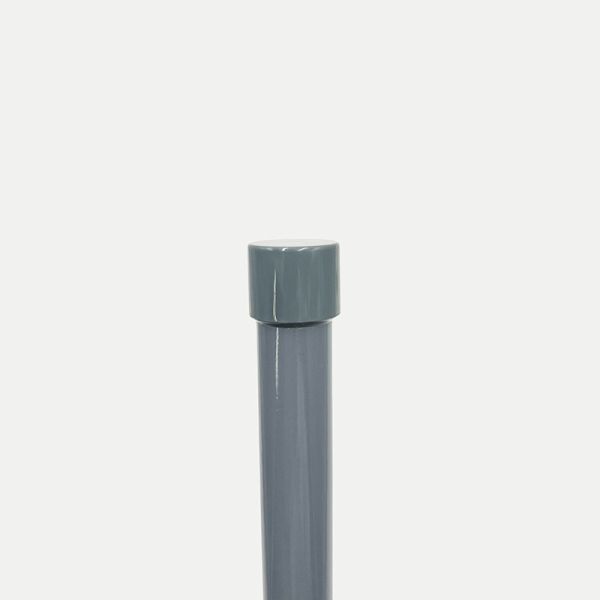

1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna
1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna
1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna
1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna
1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna
1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna
1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna
1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10988-B
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
1520-1670MHz
VSWR :
<2.0
Gain :
3dBi
Impedance :
50
Description

Satellite Positioning Antenna GNSS Passive Antenna 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130

1. Specification

A. Electrical Characteristics
Frequency 1520-1670MHz
VSWR <2.0
Peak Gain 3dBi
Impedance 50Ohm
Efficiency ≈81%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 33-42°
Power 50W
B. Material & Mechanical Characteristics
Connector Type N - J
Dimension Φ20X300mm
Radome material Fiberglass
Weight 0.14Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna

2.2 LNA Gain:

Frequency(MHz) Gain(dBi) Efficiency(%)
1520 3.9 76.3
1540 4.0 84.7
1560 3.9 84.4
1580 4.0 84.7
1600 3.7 84.0
1620 3.5 77.7
1640 4.3 82.9
1660 4.0 77.7
1670 3.8 72.7
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
1520MHz 1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna 1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna 1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna
1600MHz 1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna 1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna 1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna
1670MHz 1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna 1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna 1520-1670M GPS FPV 3dbi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna
