2.4G 2dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x100mm
2.4G 2dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x100mm
2.4G 2dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x100mm
2.4G 2dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x100mm
2.4G 2dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x100mm
2.4G 2dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x100mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10149-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz
VSWR :
<2.0
Peak Gain :
2.5dBi
Impedance :
50
Description

2.4G 2dBi wifi Outdoor Antenna Omni Directional Antenna Fiber Glass antenna FRP Antenna WIFI Antenna 16x100mm

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 2.5dBi
Efficiency ≈84%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 70°±5°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ16*100mm
Weight 0.065Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data

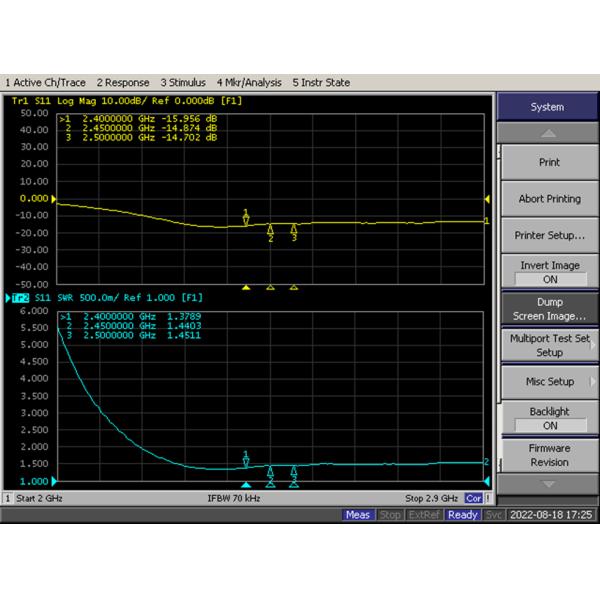

2.1 VSWR

2.4G 2dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x100mm

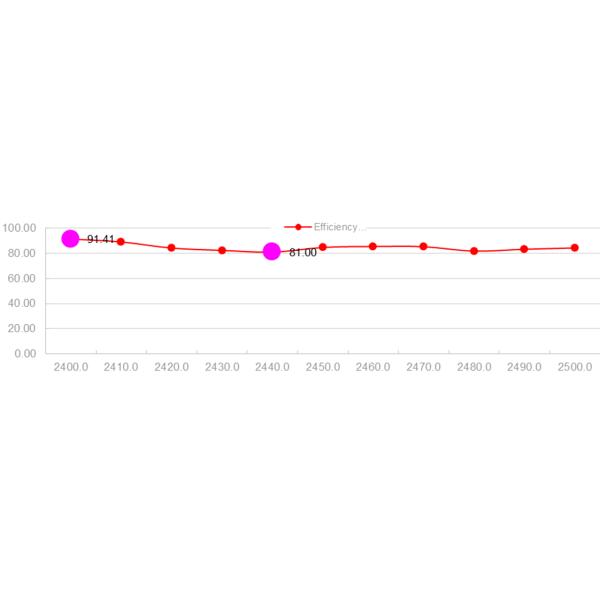

2.2 Total Efficiency & Gain:

Frequency (MHz) 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0
Gain (dBi) 2.45 2.33 2.18 2.17 2.11 2.35 2.39 2.37 2.25 2.37 2.30
Efficiency (%) 91.41 89.10 84.26 82.37 81.00 84.73 85.50 85.31 81.83 83.29 84.37
2.4G 2dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x100mm
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
2400MHz 2.4G 2dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x100mm 2.4G 2dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x100mm 2.4G 2dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x100mm
2450MHz 2.4G 2dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x100mm 2.4G 2dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x100mm 2.4G 2dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x100mm
2500MHz 2.4G 2dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x100mm 2.4G 2dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x100mm 2.4G 2dBi Wifi Outdoor Omni Directional Antenna Fiber Glass Antenna 16x100mm
